Designing a commercial restroom today goes far beyond selecting finishes and fixtures. Accessibility is now a legal and ethical requirement for offices, schools, restaurants, gyms, healthcare facilities, and public buildings. Getting it wrong can result in failed inspections, costly redesigns, and real legal exposure.
Whether you are starting from scratch or renovating an existing facility, understanding what makes a bathroom stall truly ADA compliant is one of the most important steps in your project. If you are currently specifying partition systems for your build, our bathroom partition collection includes a range of materials, configurations, and mounting styles designed to meet commercial accessibility standards.
This guide breaks down the key dimensions, door requirements, common compliance mistakes, and layout considerations that every facility manager, contractor, and architect should know before specifying a partition system.
What Makes a Bathroom Stall ADA Compliant?
An ADA compliant bathroom stall is a restroom compartment specifically designed to accommodate individuals with disabilities, including wheelchair users and people with limited mobility. These stalls must follow precise requirements related to size, clearance, door operation, grab bar placement, and overall maneuverability.
Commercial facilities are generally required to include at least one wheelchair-accessible stall, while larger restrooms may also need ambulatory accessible stalls depending on the total number of fixtures.

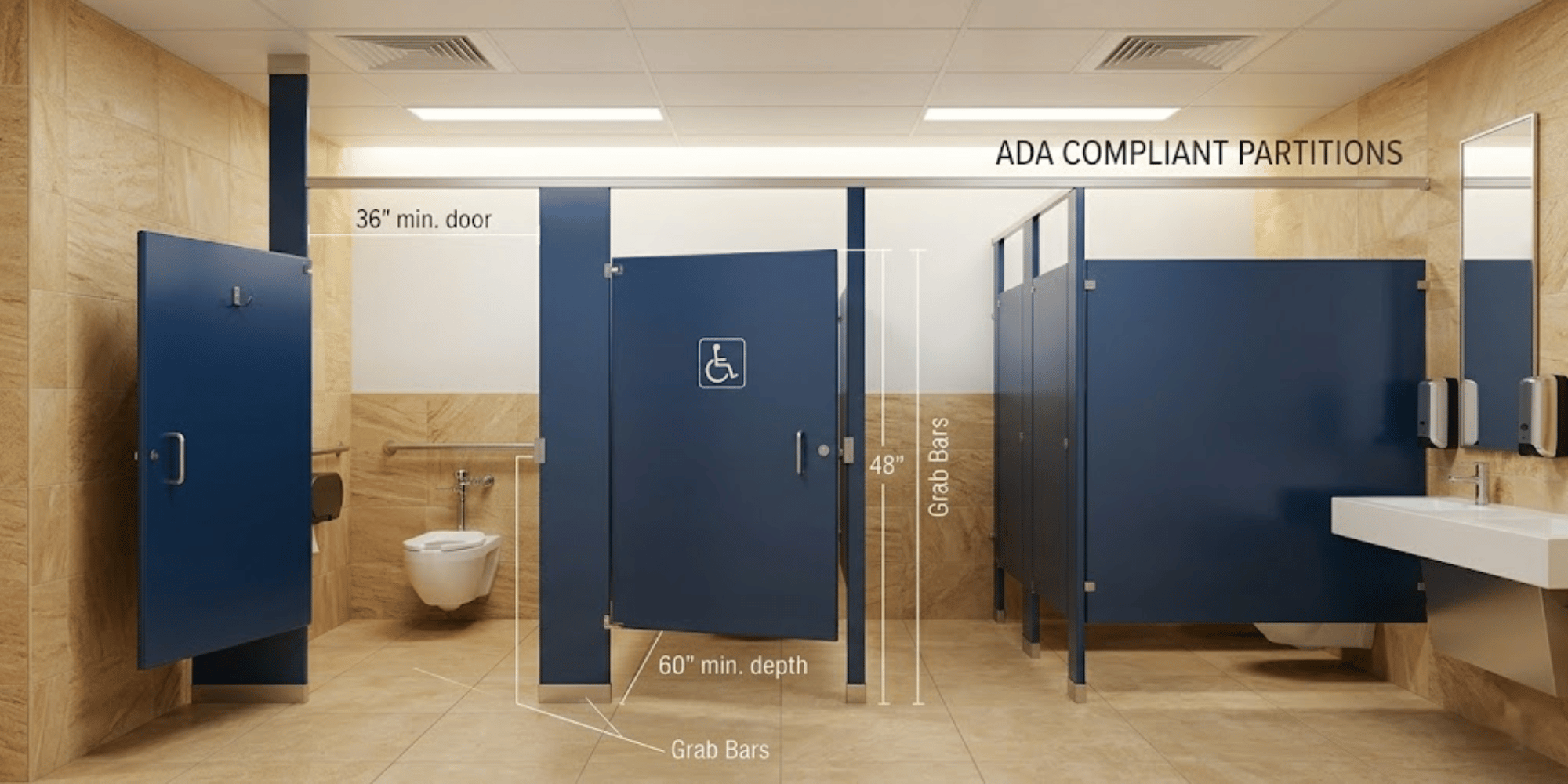

1. Wheelchair Accessible Stalls: Key Dimensions
The dimensional requirements for wheelchair accessible stalls are among the most specific in any accessibility standard, and getting them right is non-negotiable.
According to ADA guidelines:
- Minimum width: 60 inches
- Minimum depth:
- 56 inches for wall-mounted toilets
- 59 inches for floor-mounted toilets
- Toilet centerline: 16–18 inches from the side wall
- Minimum clear door opening: 32 inches
- Grab bars required on the rear and side wall
- Minimum toe clearance: 9 inches in many partition configurations
2. Ambulatory Accessible Stalls: What They Are and When They Apply
- Width between 35–37 inches
- Minimum depth of 60 inches
- Grab bars on both sides
- Proper door clearance and hardware accessibility
Ambulatory accessible stalls serve individuals who use crutches, walkers, or need lateral support when transferring. They are typically required in larger commercial restrooms that have six or more stalls and urinals combined.
These stalls must be 35 to 37 inches wide with a minimum depth of 60 inches, with grab bars required on both sides. Door clearance and hardware must meet the same accessibility standards as wheelchair stalls.
3. ADA Stall Door Requirements
| Requirement | Standard |
|---|---|
| Minimum clear opening | 32 inches |
| Operation | One hand, no tight grasping or twisting |
| Hardware | Self-closing mechanism required |
| Swing direction | Outward preferred for wheelchair stalls |
| Maneuvering clearance | Must be maintained on both sides |
Door configuration is one of the most frequently overlooked aspects of restroom compliance. Many wheelchair-accessible stalls use outward-swinging doors because inward-swinging doors can interfere with interior clearance requirements, a small detail that derails a surprising number of inspections.
All hardware must be operable with one hand and must not require tight grasping, pinching, or twisting of the wrist. This applies to both the latch mechanism and the door pull.
Common ADA Compliance Mistakes
Even well-planned projects can fail inspections over small but consequential errors. The most frequent issue we see is stall doors that interfere with required maneuvering clearances, often because the partition layout was finalized before door swing directions were confirmed. Anyone still in the planning phase will find that choosing toilet partition layouts, door swings, and sizes early in the process prevents exactly this kind of costly mistake.
Incorrect grab bar placement is another common failure point. Bars installed even a few inches outside the required range can cause a failed inspection. Insufficient stall width or depth, missing toe clearance, and improper door hardware round out the issues that consistently cause project delays.
Why ADA Compliance Matters Beyond the Code
Meeting accessibility standards is not just about avoiding fines or passing inspections. An accessible restroom creates a safer, more inclusive environment for every person who uses your facility like the employees, customers, visitors, and the public alike.
Facilities that prioritize accessibility also project a more professional image. It signals to clients and employees that your organization takes its responsibilities seriously, which matters in any competitive commercial environment.
Planning Your Layout for Compliance
Before selecting any partition system, it is important to evaluate the full scope of your restroom layout. Room dimensions, number of required stalls, traffic flow, and mounting style all feed into whether your final design will meet accessibility requirements.
The 4 mounting styles for bathroom partitions: floor-mounted, ceiling-hung, floor-to-ceiling, and overhead-braced. Each carry different implications for toe clearance and overall stall dimensions, both of which directly affect ADA compliance. Choosing the right mounting style early in the process is just as important as choosing the right material.
Choosing the Right Partition System for Your Project
ADA compliance does not exist in isolation, it must be balanced with durability, maintenance, and design. Moisture-resistant HDPE is the top choice for high-humidity environments, while those choosing durable, low-maintenance bathroom partitions for standard commercial use most often land on phenolic for its balance of performance and value. Stainless steel delivers premium aesthetics for upscale environments.
For a full breakdown of how these materials compare across key performance criteria, the commercial bathroom partition buying guide covers everything you need before finalizing your specification.
Whatever material you choose, the configuration must be built around your accessibility requirements from the start, not retrofitted after the fact. Our team at Jaraco has helped contractors, architects, and facility managers across North America specify compliant, high-performance partition systems for projects of every scale. Browse our full bathroom partition collection to explore options suited to your facility's needs.
