10-0326

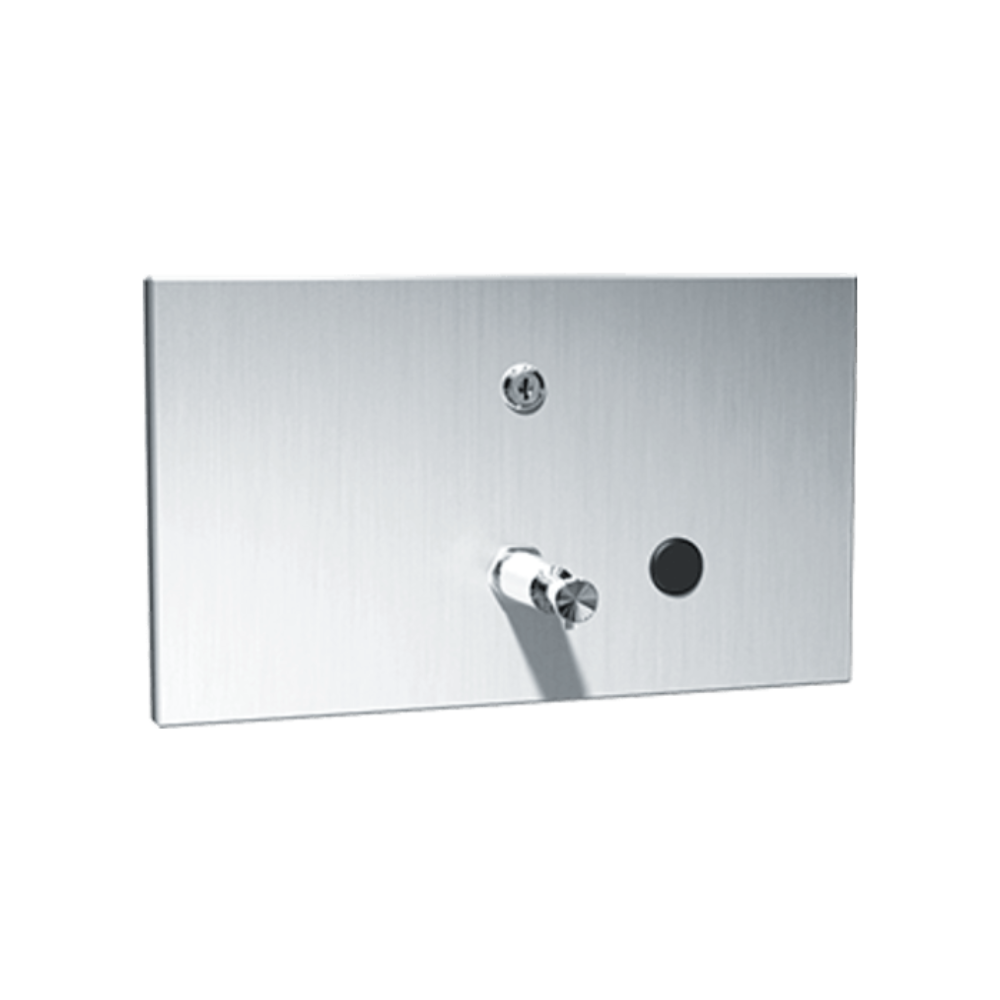

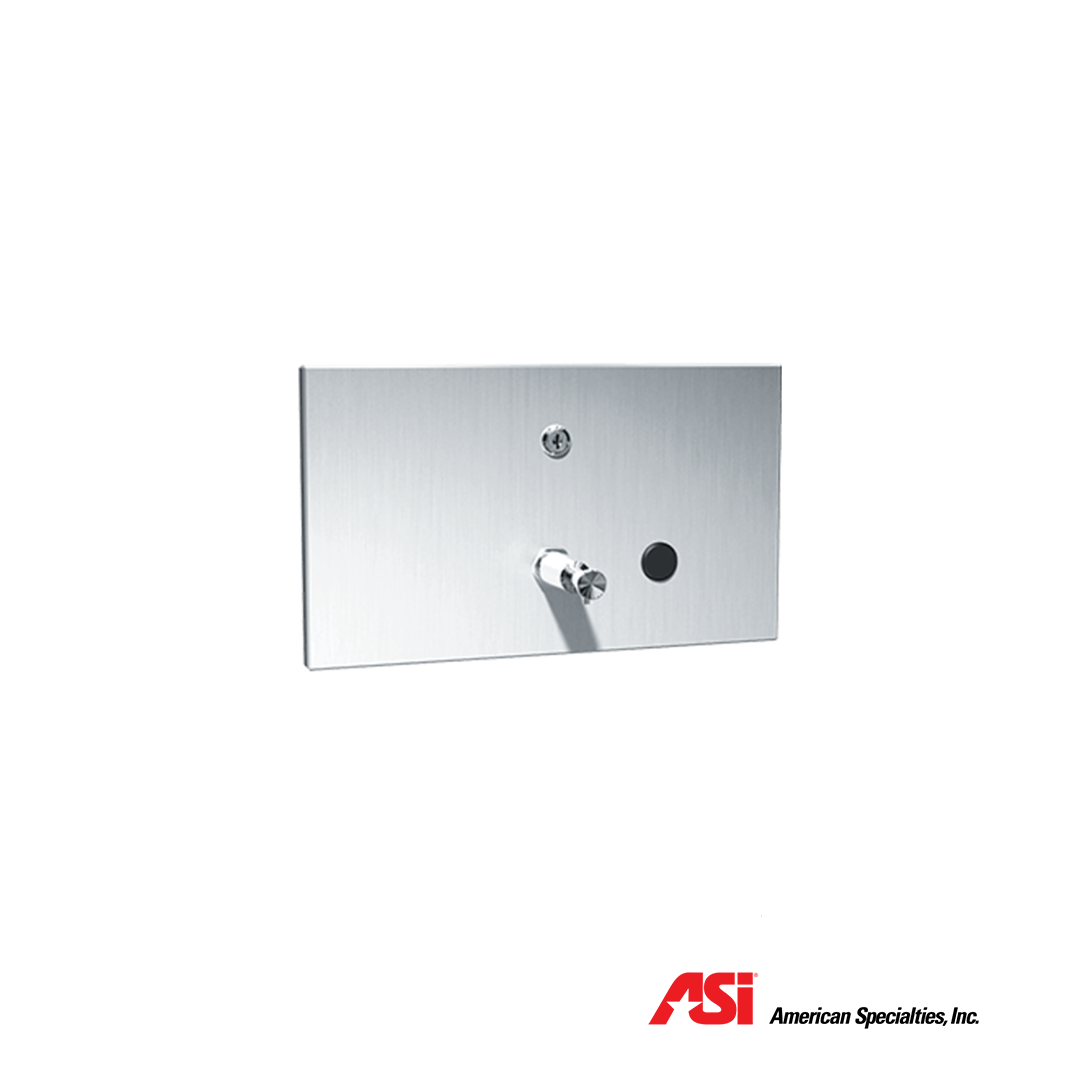

Stainless steel with satin finish, all-purpose soap valve, 57 fl. oz. (1.7 L) capacity of liquid, lotion or detergent soap, synthetic detergents and antibacterial soaps. Shall dispense contents from a stem-type push-button valve. Valve operation complies with ADAAG and ICC/ANSI A-117.1 by providing actuation with a force less than 5 lbsf (22.2N) requiring only one (1) hand and with no tight grasping, pinching or twisting of the wrist required.

• Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
• Viscosity Range (mPa·s or cP): 100 - 2.5k
• pH Range: 5.5 ~ 8.5

Global Dimension:

10-1⁄4″ x 6″ x 4-1⁄2″

(260 x 152 x 115 mm)

Wall Opening:

9" x 4-⅞" x 4"

(229 x 124 x 102 mm)

Spout Projection:

2-1⁄2″ (64 mm)
