10-0345 Series

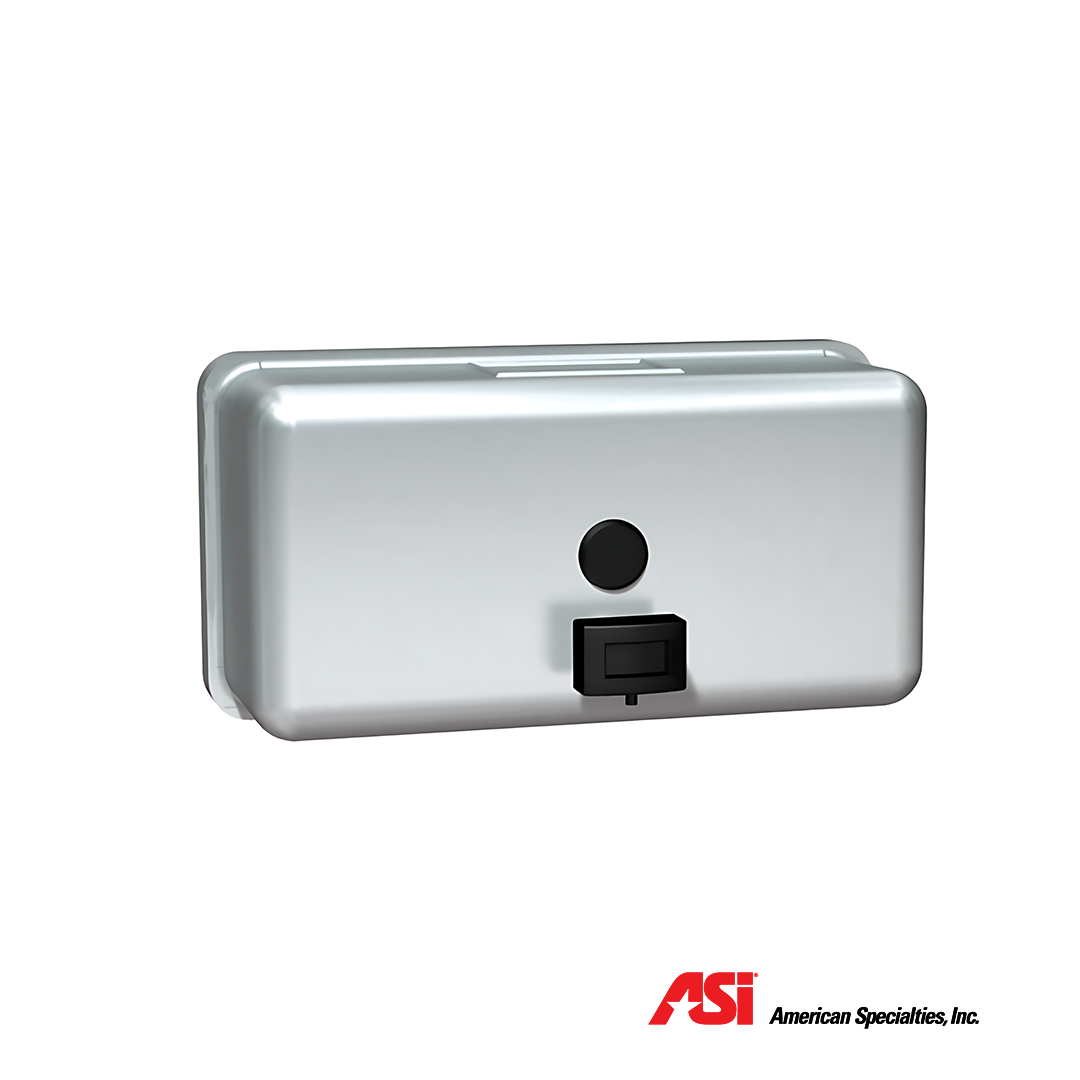

40 fl. oz. (1.2 L) capacity liquid soap dispenser in satin finish stainless steel comes with an all purpose valve and a tamper-resistant refill indicator.

Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open. Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manually.

• Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
• Viscosity Range (mPa·s or cP): 100 - 3.5k
• pH Range: 5.5 ~ 8.5

Global Dimension:

8-³⁄₁₆" x 4-¹³⁄₁₆" x 3-¹⁵⁄₁₆"

(208 x 122 x 100 mm)

Spout Projection:

23⁄32″ (18 mm)

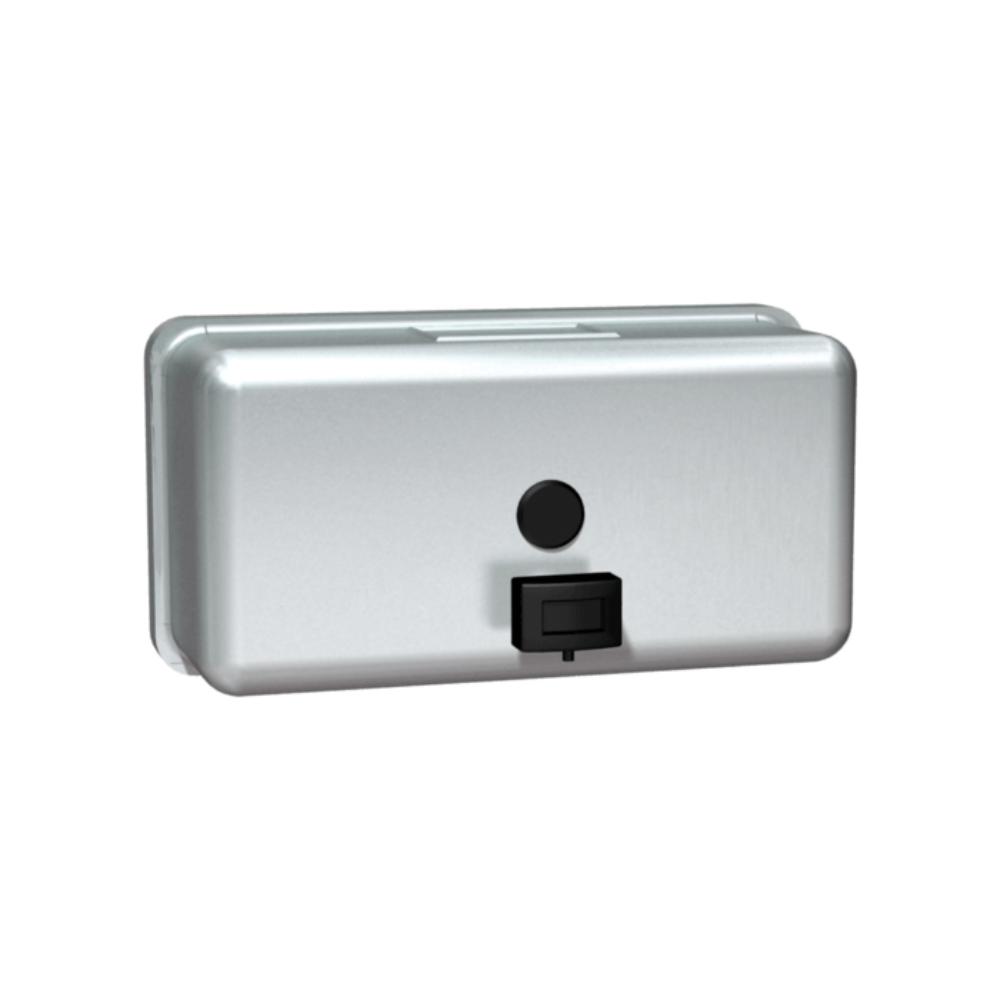

Download: Satin Stainless Steel

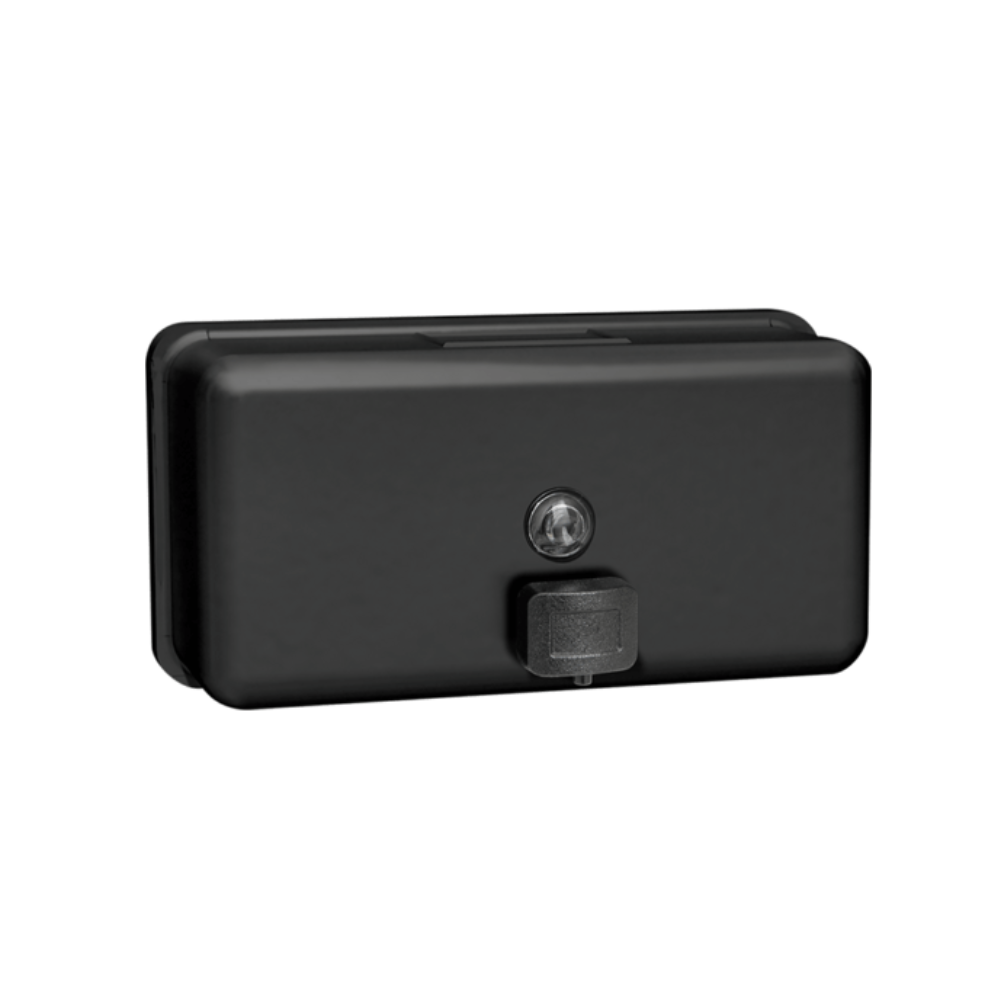

Download: Matte Black
