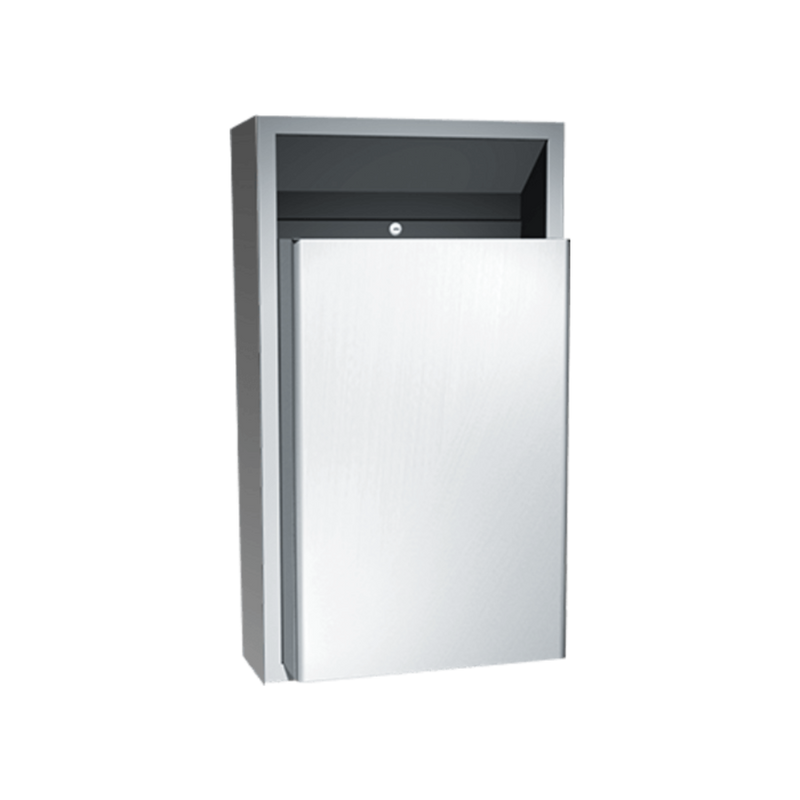

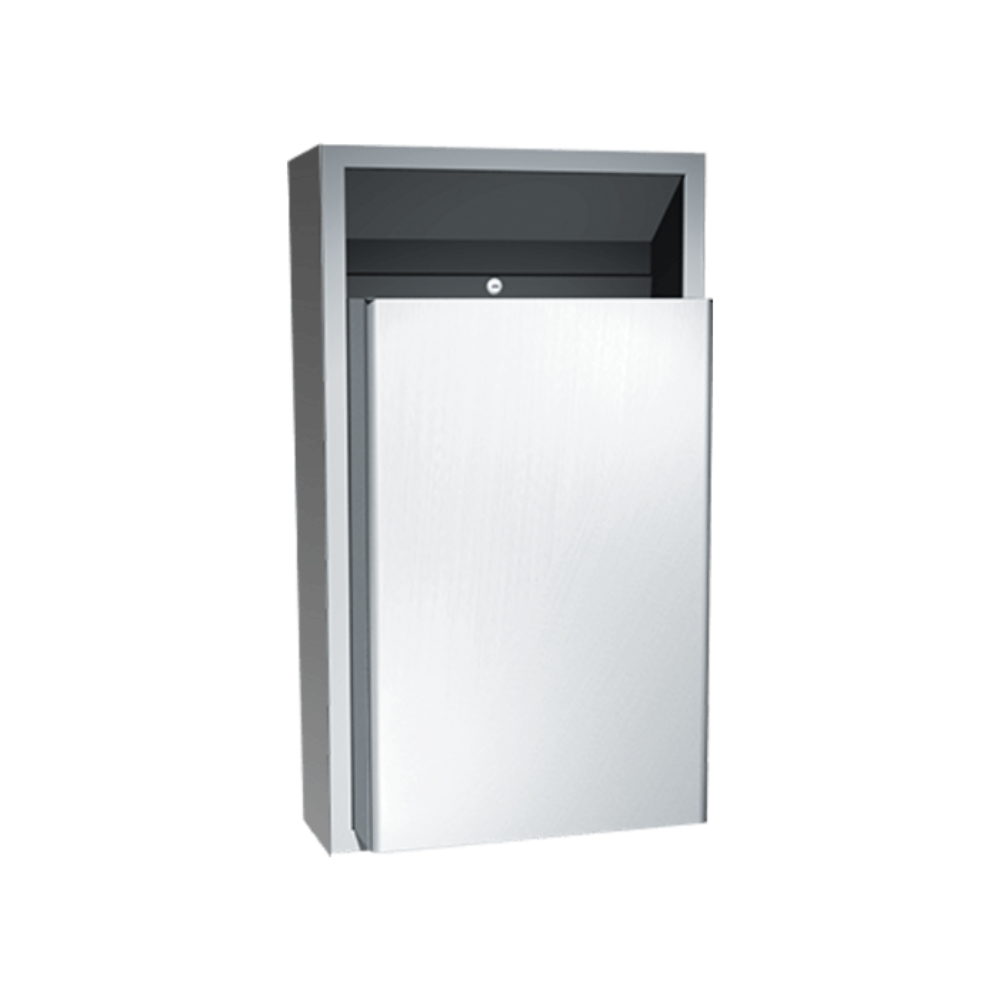

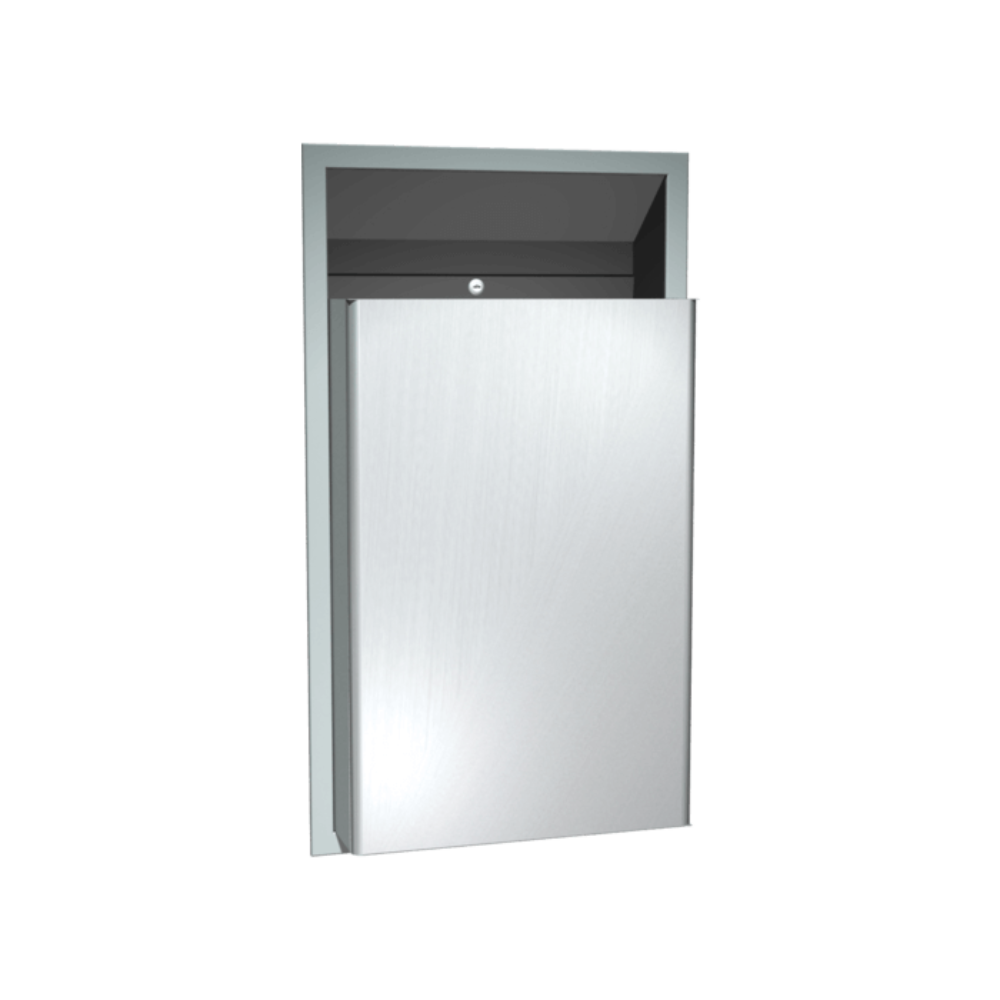

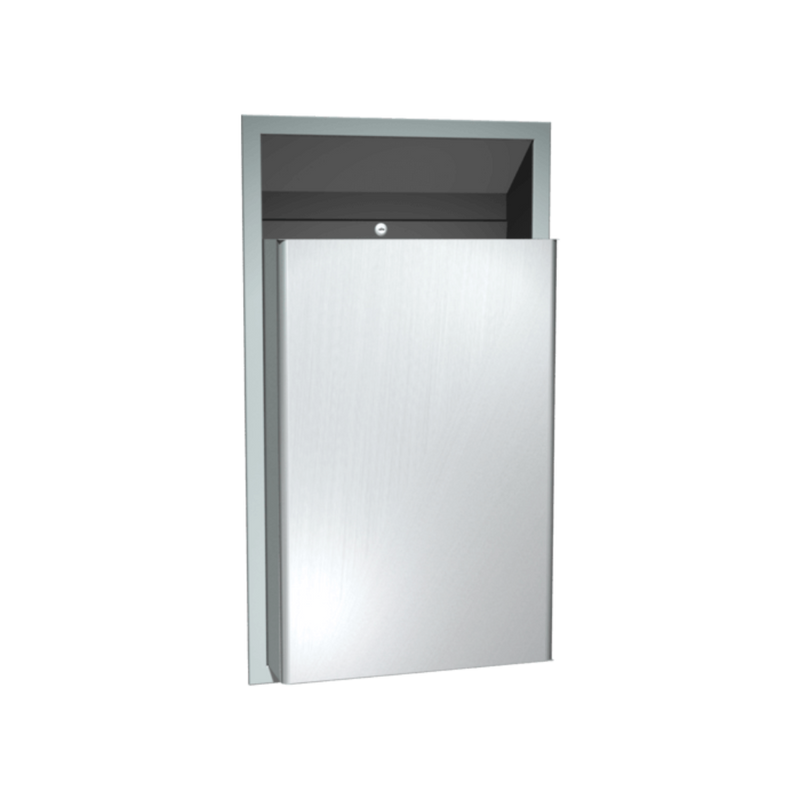

10-0458 Series

Waste Receptacle has a capacity of 12 gal (46 liters). Frame, waste receptacle and cabinet are fabricated of 22 gauge stainless steel alloy 18-8, type 304. Waste receptacle has hemmed edges for safety and internal hooks for hanging a reusable vinyl bag (optional, supplied separately, model 58-PY for 12 gal). A tumbler lock keyed retains waste receptacle. Container locks into cabinet, removable for servicing.

Global Dimension:

17-1/4″ x 30-1/2″ x 8″

(438 x 775 x 203 mm)

Wall Opening:

15-3/4″ x 29″ x (variable*)

(400 x 737 mm)

Available Models:

• 0458: 4″ (102 mm) x 4″ and capacity of 12 gal. (46 L)

• 0458-CX: 1/2″ (13 mm) x 7-1/2″ (191 mm) and capacity of 12 gal. (46 L)

• 0458-DX: 8″ (203 mm) x 4″ (102 mm) and capacity of 18 gal. (68 L)

• 0458-9: for 9″ collar for surface mounting option.



Download: 10-0458

Download: 10-0458-9

Download: 10-0458-CX

Download: 10-0458-DX
