10-0481 Series

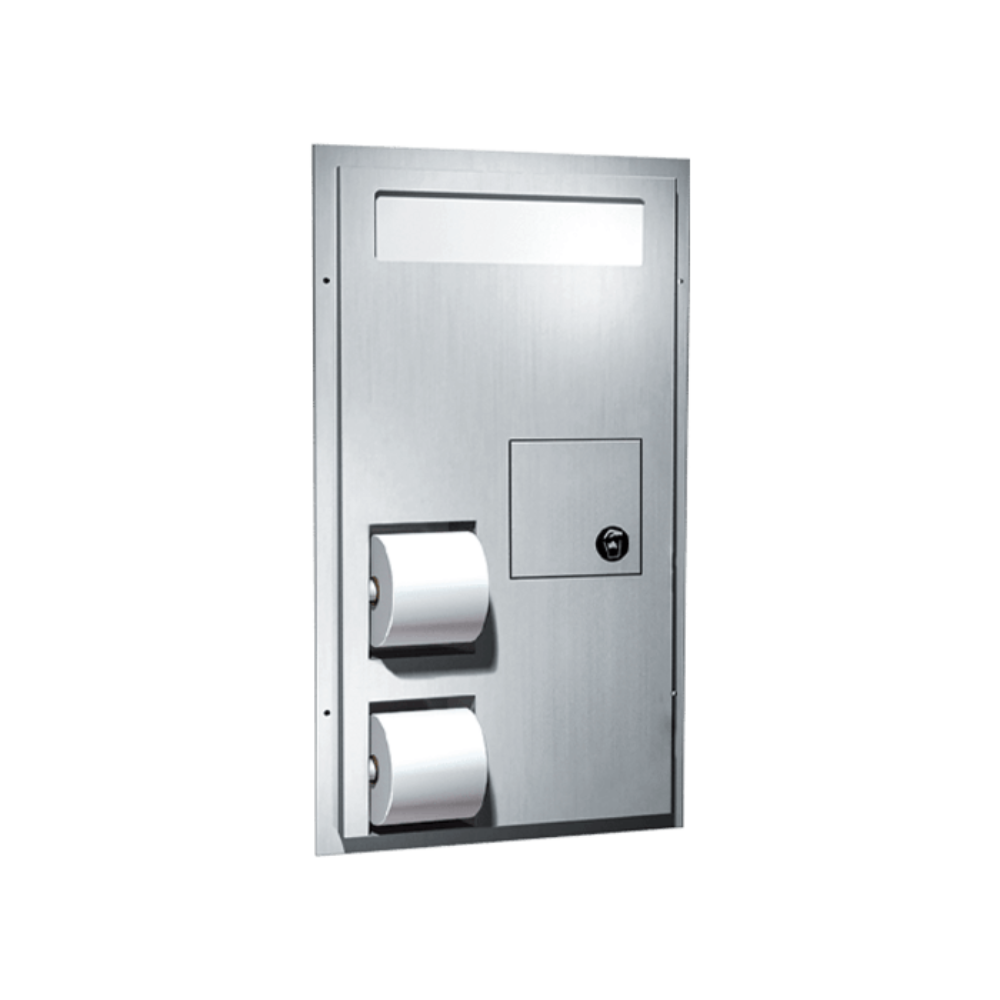

10-0481:

Mounts through partition usable by both sides but serviced from one side. Holds 1000 seat covers and 4 rolls of standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper. Removable waste container has a waste capacity of 1.3 gal (4.9 liters).

Cabinet door is held closed with two (2) tumbler locks. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] are supplied.

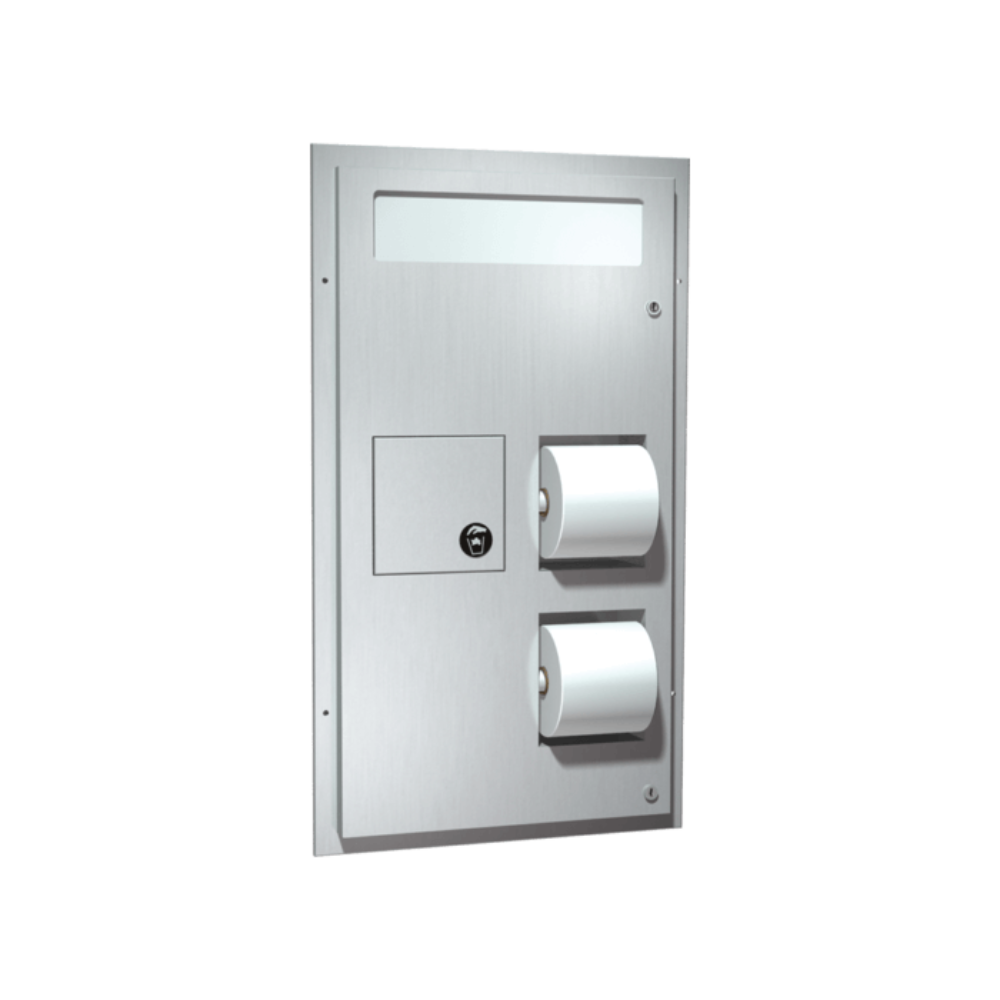

10-0481-HC:

One side mounts flush on barrier-free compartment side to allow grab bar clearance. Usable by both sides but serviced from one side. Access door shall be opposite HC stall.

Holds 1000 seat covers and 4 rolls of standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper. Removable waste container has a waste capacity of 1.3 gal (4.9 liters).

Cabinet door is held closed with two (2) tumbler locks. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] are supplied.

10-0481:

Global Dimension:

17-⅜" x 30-⅝″ x 4-¼″

(441 x 778 x 108 mm)

Partition Opening:

15-½″ x 28-⅞″ x ½" à 2"

(394 x 733 x 13 à 51 mm)

10-0481-HC:

Global Dimension:

17-⅜" x 30-⅝″ x 4-¼″

(441 x 778 x 108 mm)

Partition Opening:

15-½″ x 28-⅞″ x ½" à 3-¾"

(394 x 733 x 13 à 95 mm)
