10-04813 Series

10-04813:

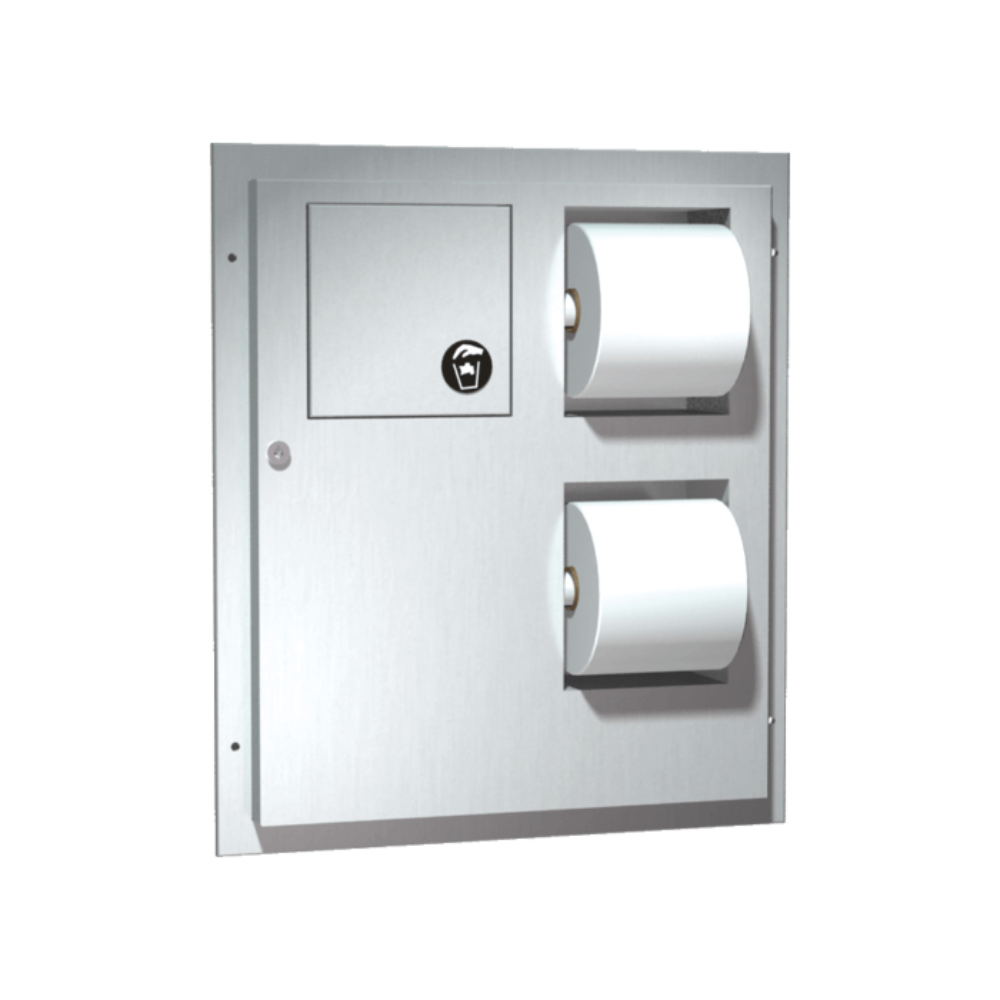

Mounts through partition, usable by both sides but serviced from one side. Holds 4 rolls of standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper. Removable waste container has a waste capacity of 1.3 gal (4.9 liters).

Cabinet door is held closed with two (2) tumbler locks. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] are supplied.

10-04813-HC:

Similar to 04813, but one side mounts flush on barrier-free compartment side to allow grab bar clearance.

Mounts through partition, usable by both sides but serviced from one side. Holds 4 rolls of standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper. Removable waste container has a waste capacity of 1.3 gal (4.9 liters).

Cabinet door is held closed with two (2) tumbler locks. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] are supplied.

10-04813:

Global Dimension:

17 3⁄8″ x 20″ x 4-¼″

(441 x 508 x 108 mm)

Partition Opening:

15-½″ x 18-¼″ x ½″ à 2″

(394 x 464 x 13 à 51 mm)

10-04813-HC:

Global Dimension:

17 3⁄8″ x 20″ x 4-¼″

(441 x 508 x 108 mm)

Partition Opening:

15-½″ x 18-¼″ x ½″ à 2″

(394 x 464 x 13 à 51 mm)
