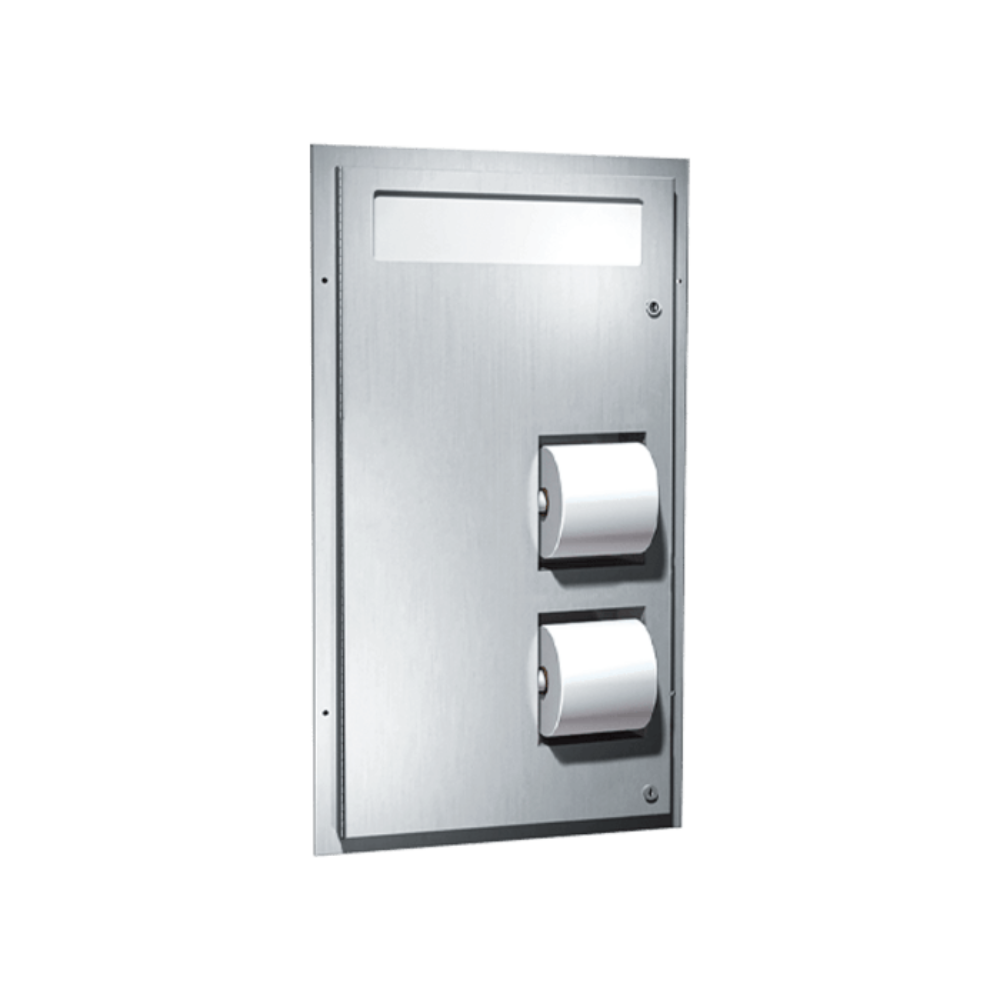

10-0484 Series

10-0484:

Holds and dispenses 1000 paper seat covers and four (4) rolls standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper.

Mounts centered through partition. Internal baffles prevent line of sight view from either side through unit at any time.

Cabinet door is held closed with two (2) tumbler locks. Cabinet includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] (supplied).

10-0484-HC:

Holds and dispenses 1000 standard single or half-fold paper toilet seat covers contained in supply box and four (4) standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper rolls.

One side mounts flush to partition of barrier-free side to allow for grab bar. Usable both sides but serviced from one side. Access door is opposite HC stall. Internal baffles prevent line of sight view from either side through unit at any time.

Cabinet door is held closed with two (2) tumbler locks. Cabinet includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] (supplied).

10-0484:

Global Dimension:

17-⅜″ x 30-⅝″ x 4-½″

(441 x 778 x 114 mm)

Partition Opening:

15-½″ x 28-⅞″ x ½″ à 2″

(394 x 733 x 13 à 51 mm)

10-0484-HC:

Global Dimension:

17-⅜″ x 30-⅝″ x 4-½″

(441 x 778 x 114 mm)

Partition Opening:

15-½″ x 28-⅞″ x ½″ à 3-¾″

(394 x 733 x 13 à 95 mm)

Download: 10-0484

Download: 10-0484-HC
