10-1201 Series

Fabricated of alloy 18-8 stainless steel, type 304. Tubing is 18 gauge, 1" OD (Ø25) with a No 4 satin finish. Length suitable for a 60" wide enclosure either on opposite walls or across the face opening depending upon rod length chosen. Flanges are fabricated of heavy-duty rust proof ZamaK 3 with a Chrome finish. Flanges include two (2) countersunk 15/64" diameter (Ø6) holes to accept No 10 (M5) flat or oval head screws (by others).

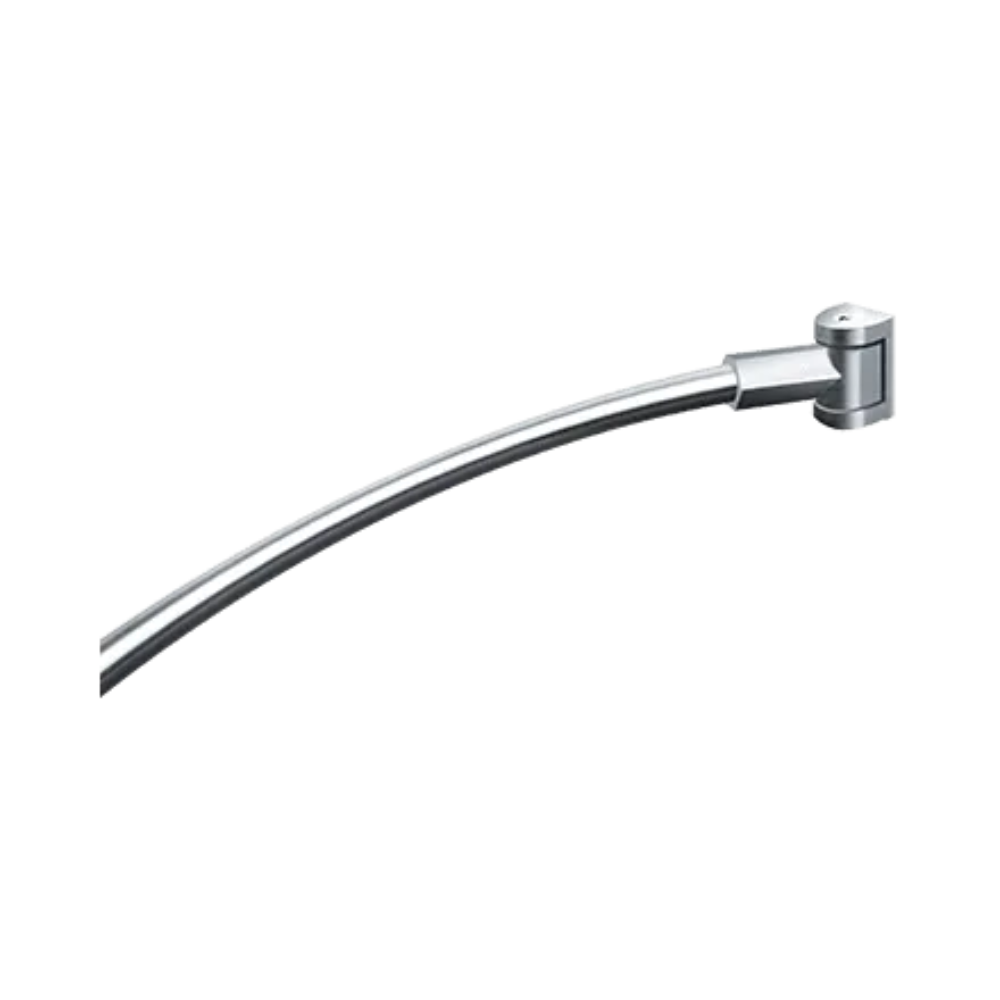

Satin Stainless Steel:

60″ x 1-²⁷⁄₆₄″ x 8-¼″

(1524 x 36 x 210 mm)

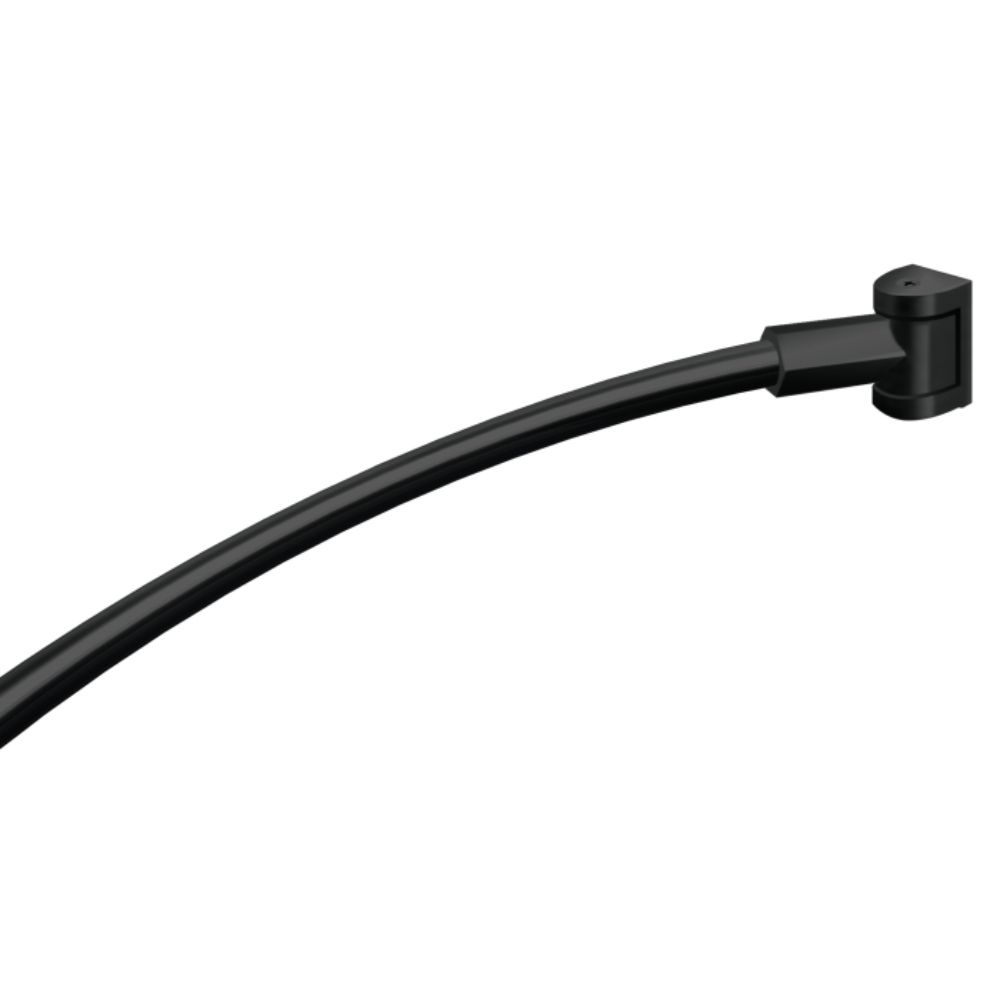

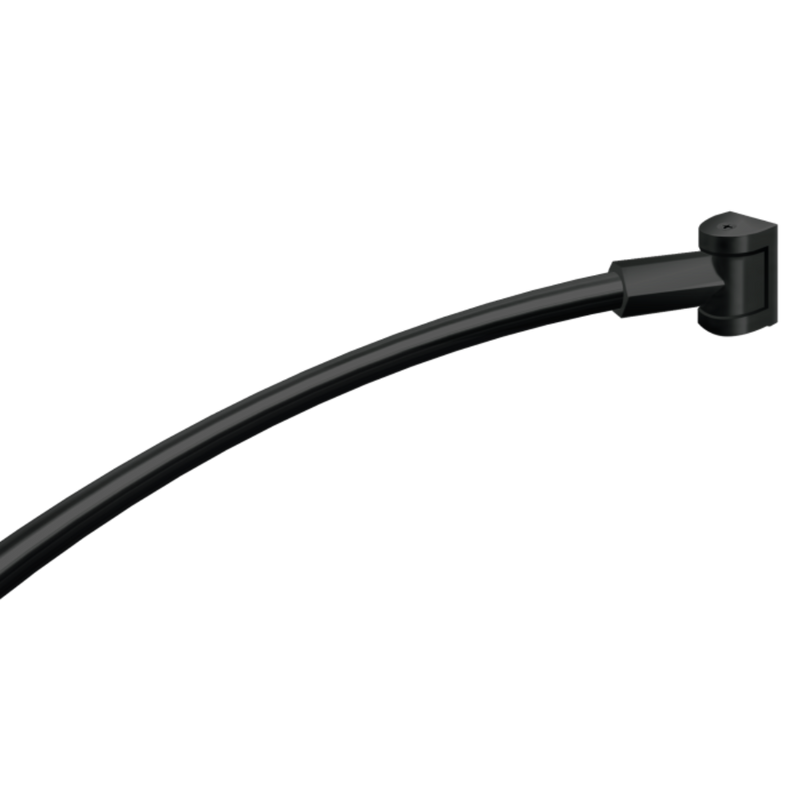

Matte Black:
63″ x 1-²⁷⁄₆₄″ x 10-³⁄₃₂″

(1600 x 36 x 256 mm)

Download: Satin Stainless Steel

Download: Matte Black
