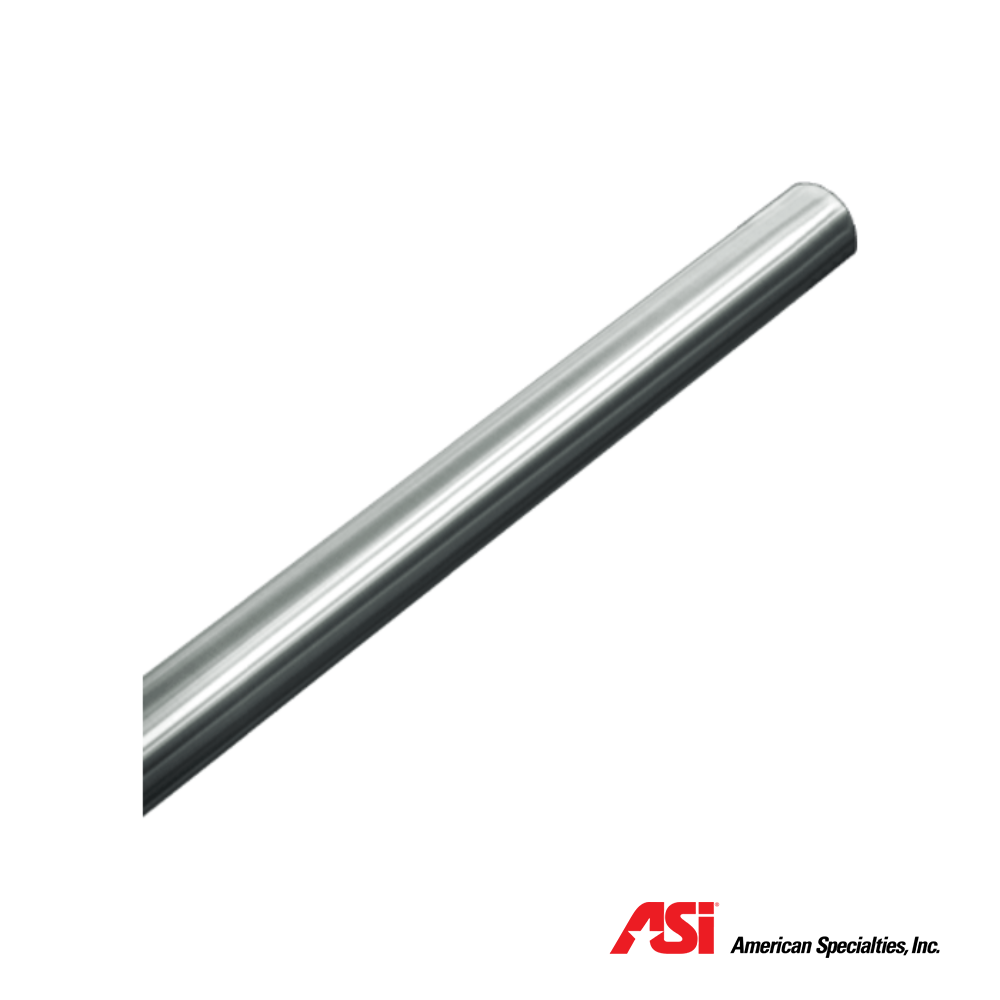

10-1204-2 Series

Tubing is 18 gauge, 1-1/4′′O.D. with a satin finish. Choose specified length.

Select length in inches (i.e. 048, 060, 120) to create Part Spec Order Number (i.e. 1204- 060). NOTE: 36″ and 60″ rods are part of our Never Out program.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72′′ (1829mm) require ceiling hanger Model No 1204-C.

For use with standard shower curtain model No ’s 1200 or 1200-V having 72′′ (1829mm) length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ (1892mm) AFF or 67′′ (1702mm) above tub rim to obtain 6′′ (152mm) bottom overlap.

Diameter of Rod: 1 ¼"
