10-3513-14 Series

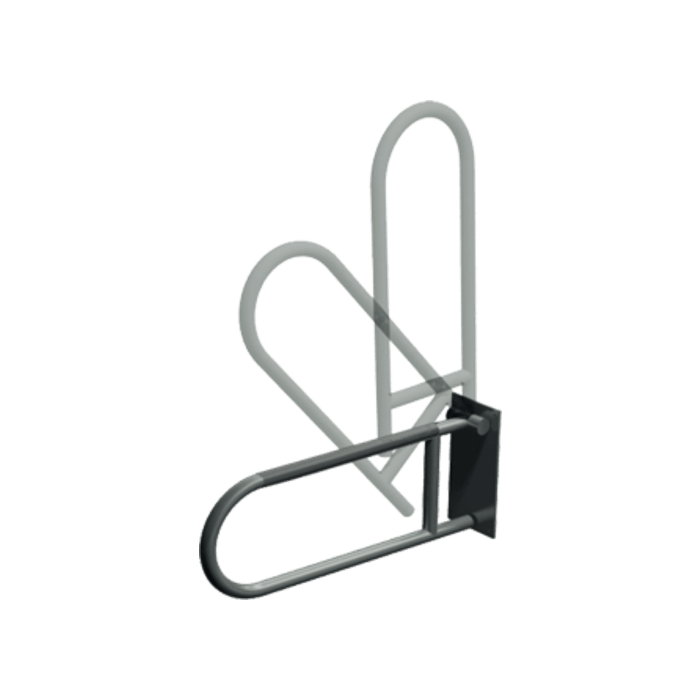

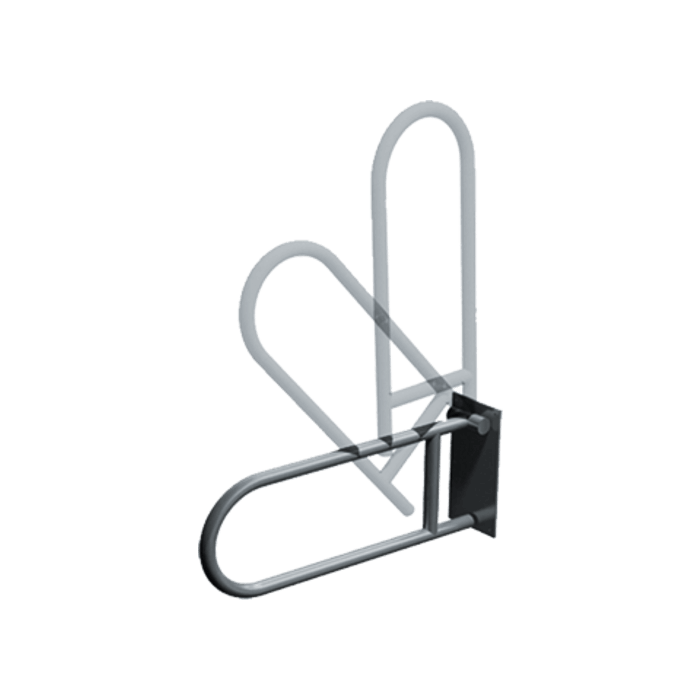

Swing-Up Grab Bar is fabricated of stainless steel type 304 alloy 18-8 with a Satin finish. The bar has 1-1/2” diameter (Ø38) tubing hinge and will have a solid bar axle with adjustable friction sleeve balance. Tension for bar movement is accomplished by hex head clamp bolt provided. Operable with one hand. Bar mounting plate includes top arm stop bumper to prevent raised arm from banging into wall. Bar tube includes plastic end cap to cushion contact with wall plate in use position.

Exposed Flange (1-1/2" O.D) -  Swing Up Grab Bar

Height x Width x Length:

(1) 10" x 6" x 30"

(2) 11 ¹³⁄₁₆" X 3 ¹⁵⁄₁₆"

Smooth:

Download Height 10" - Download Height 11 1/3/4"

Peened:

Download Height 10" - Download Height 11 1/3/4"
