10-645210A Piatto Series

This sophisticated automatic paper towel dispenser is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

Proximity sensing no-touch unit dispenses an owner-adjustable length per cycle from 8″ (203 mm) wide, 800 ft. (244 m) long rolls. Dispenser is powered by (4) D-size batteries (not supplied) and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.

Note: ASI Piatto™ products are made to order and are not returnable.

Finished Wall Opening (FWO):

16-1/8″ x 28-1/16″ x 10″

(410 x 713 x 254 mm) min

Unit Size:

16-1/16″ x 28″ x 9-13/16″

(408 x 711 x 248 mm)

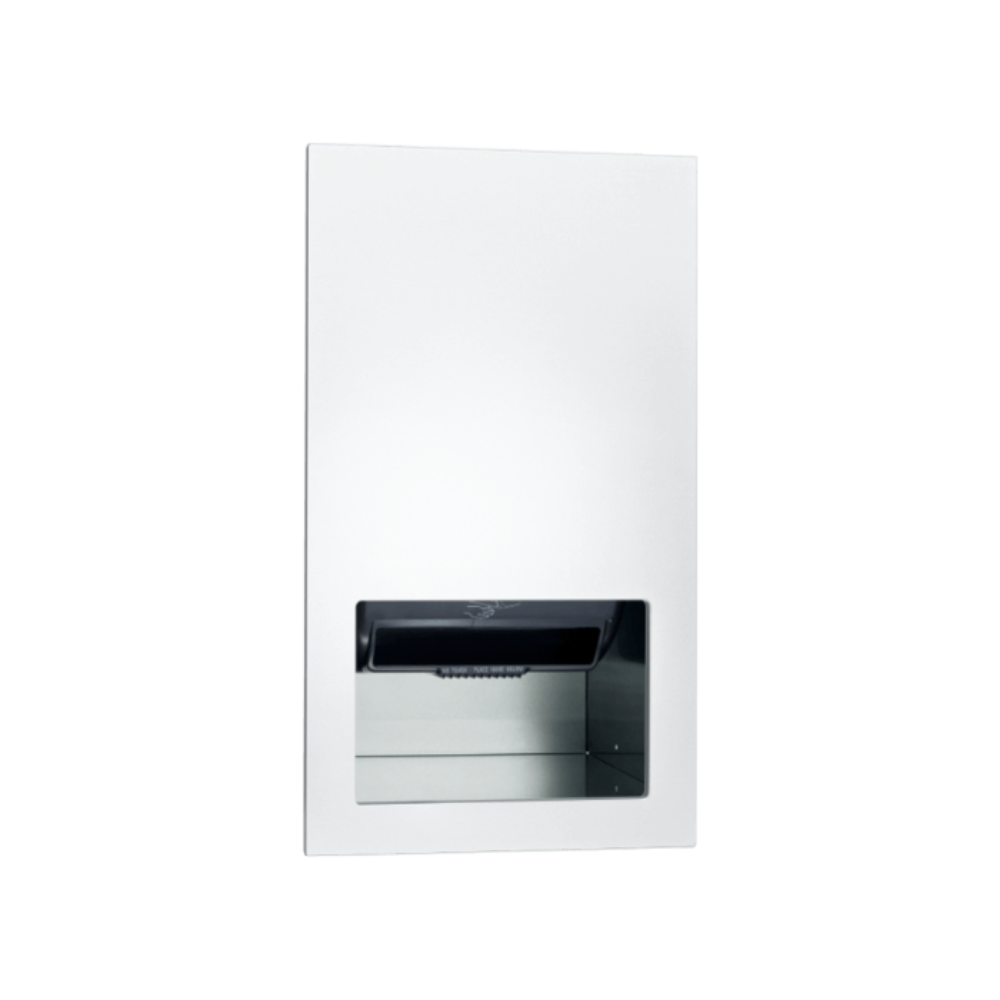

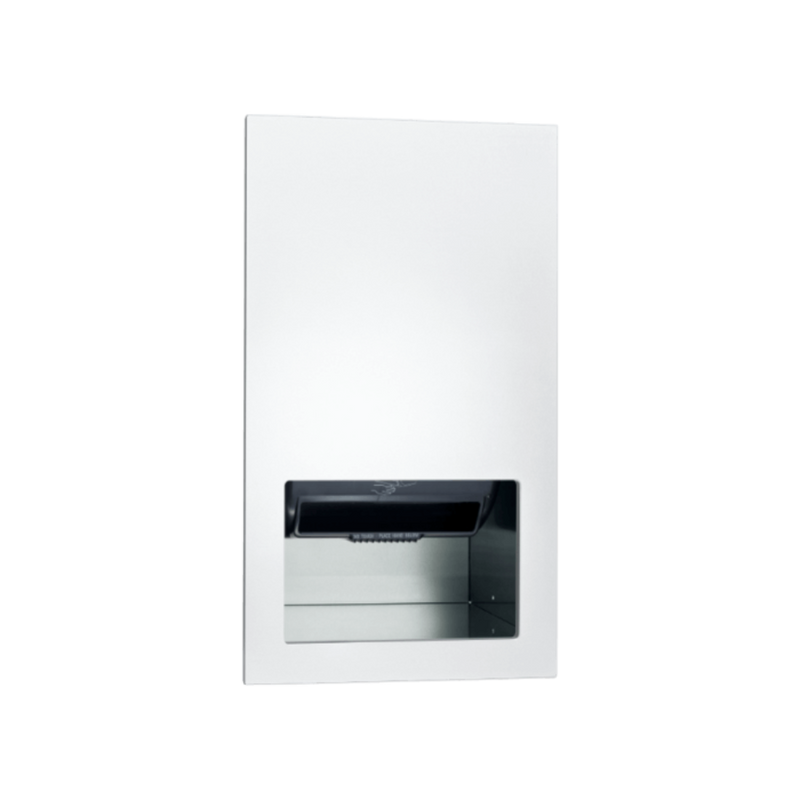

Download: White Phenolic

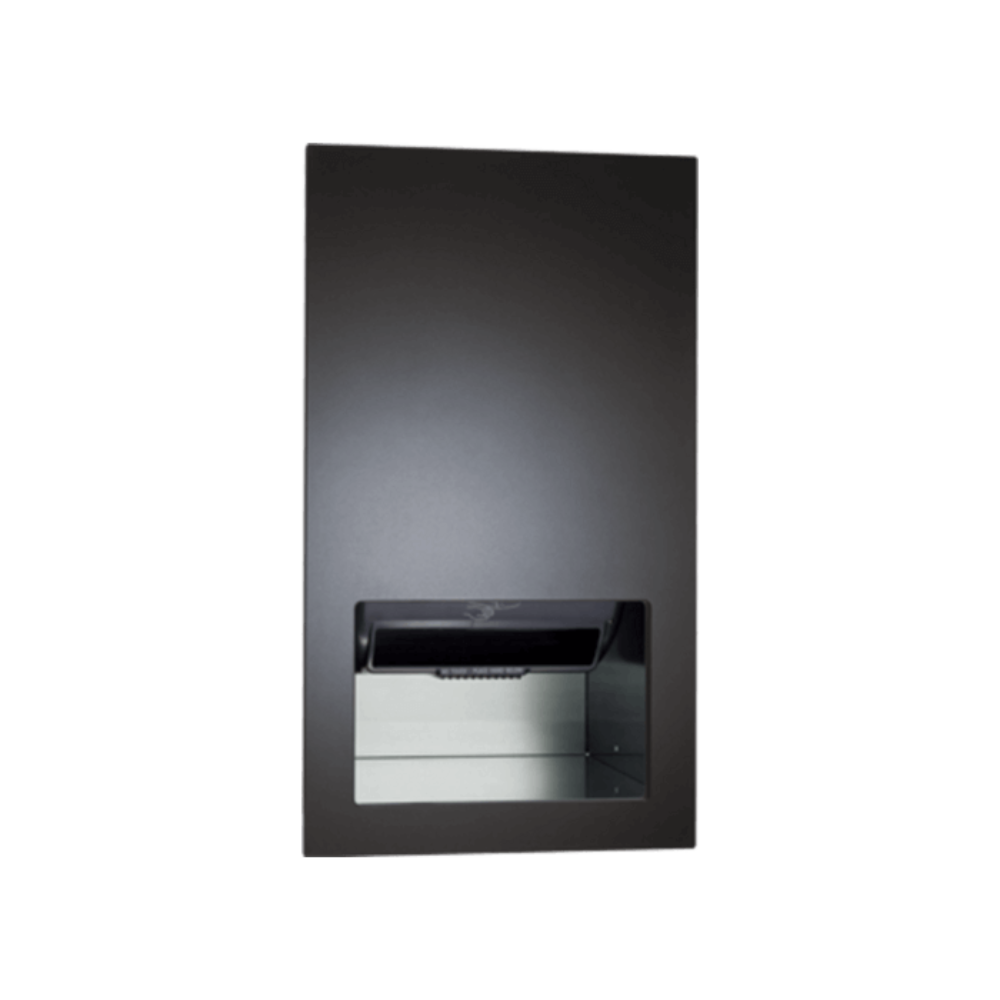

Download: Matte Black Phenolic
