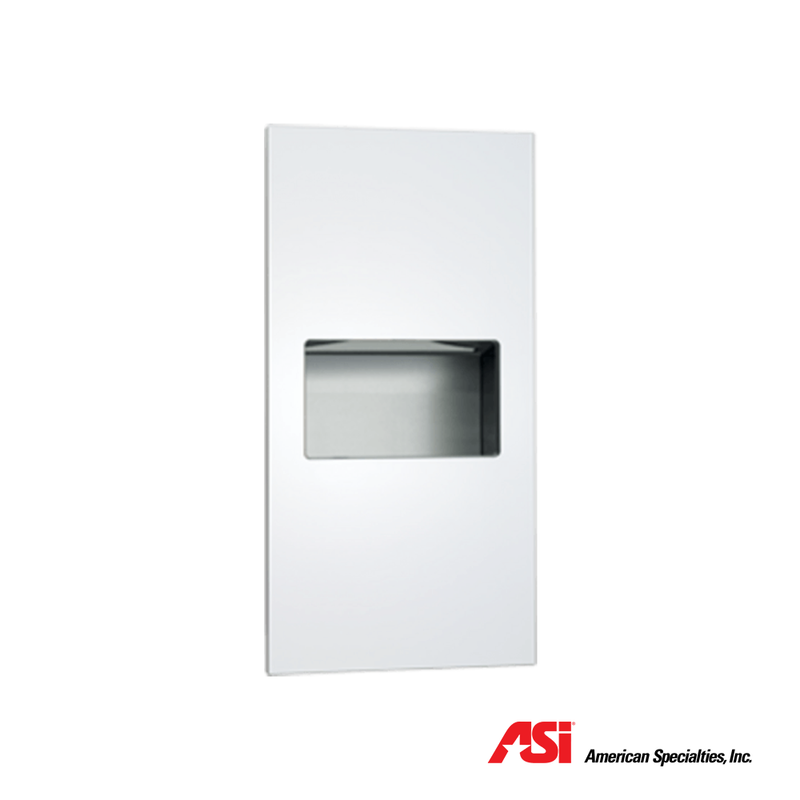

10-64623 Piatto Series

This sophisticated paper towel dispenser and waste receptacle cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

Well-suited for the smaller washroom with less space and traffic, this unit dispenses 350 C-fold or 475 multi-fold paper towels. Towels are self-feeding until supply is depleted. Unit will continue to feed properly when reloaded with a partial load in place. Includes 2.2 gal. (8.4 L) stainless steel waste receptacle, which is emptied manually.

Note: ASI Piatto™ products are made to order and are not returnable.

Finished wall opening (FWO):

14-5/16″ x 28-1/16″ x 4-11/16″

(364 x 713 x 119 mm) min

Unit size:

14-1/4″ x 28″ x 4-9/16″

(362 x 711 x 116 mm)

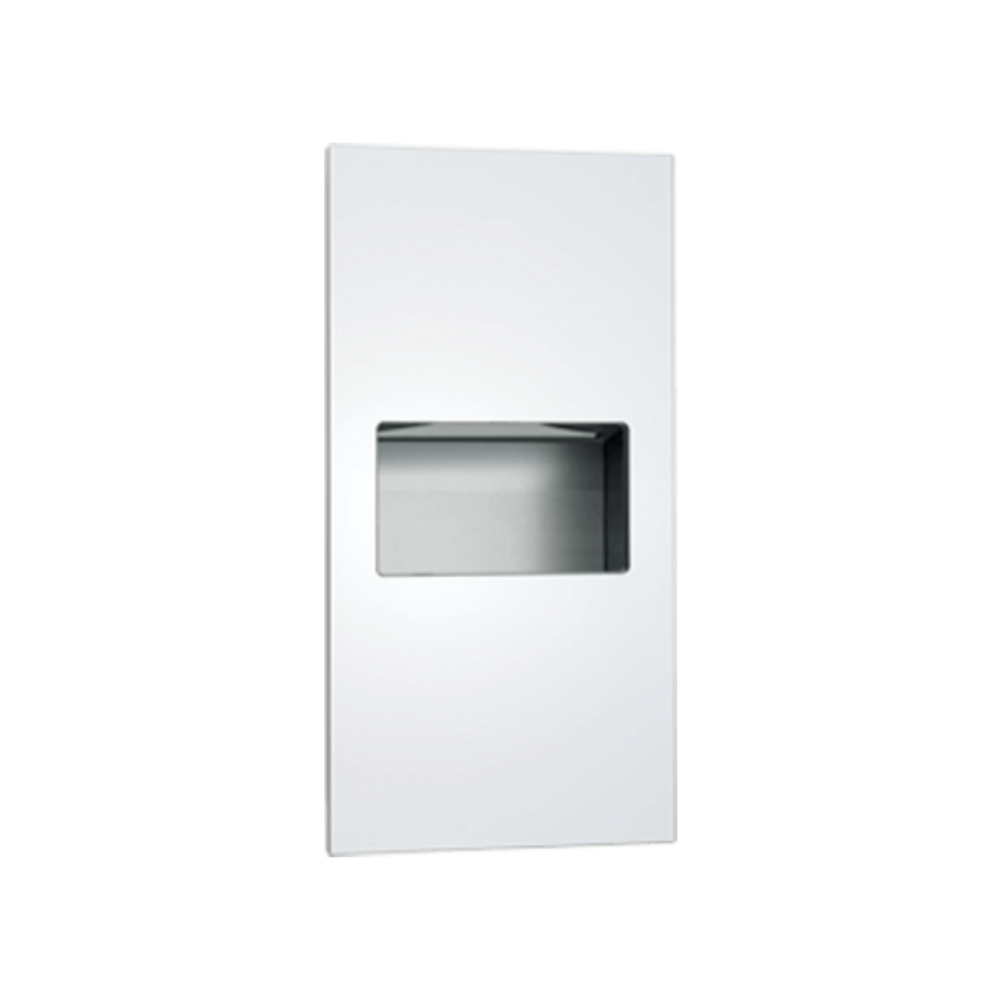

Download: Phenolic White

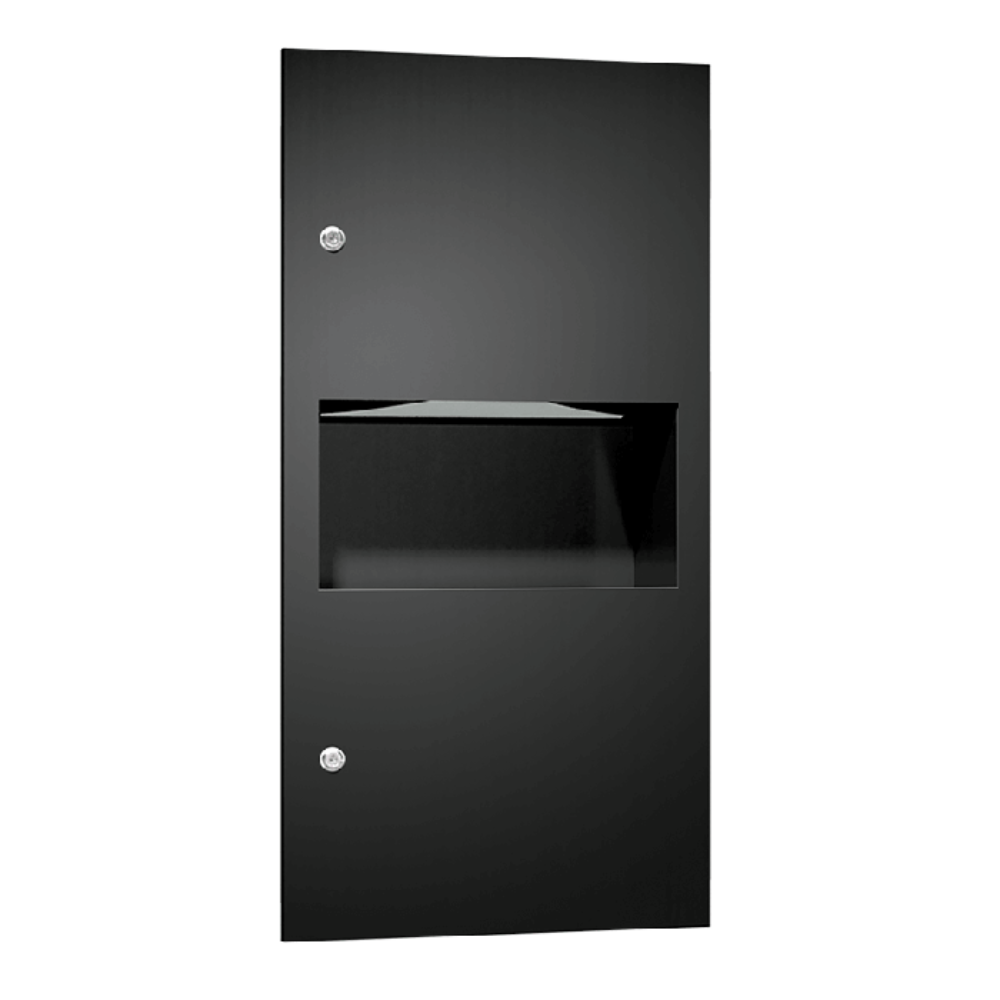

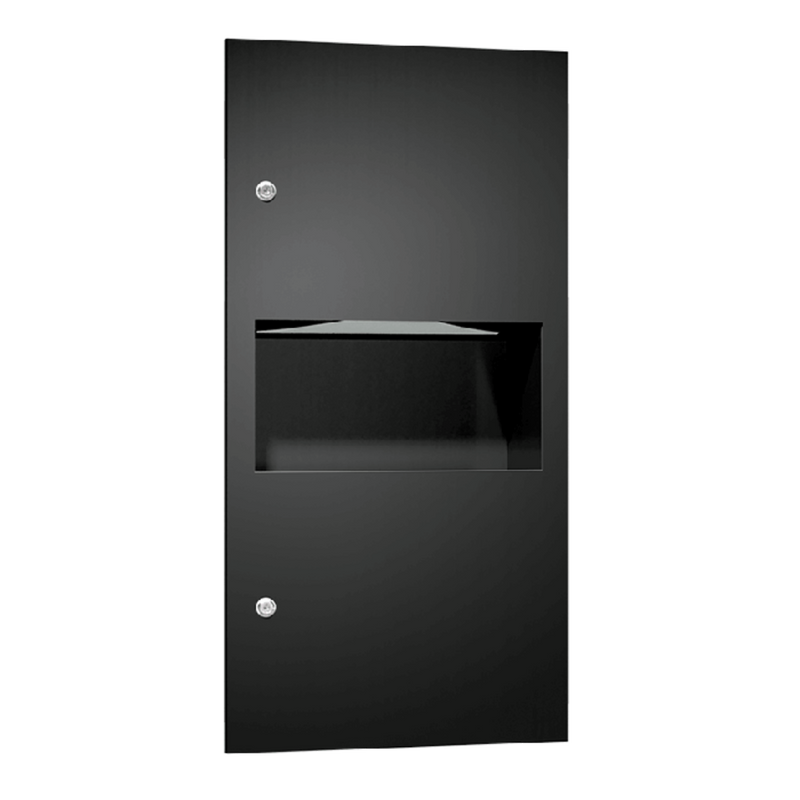

Download: Phenolic Matte Black
