10-6467 Piatto Series

This sophisticated combination paper towel and waste receptacle cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

Dispenses 600 C-fold or 800 multi-fold paper towels. Paper towels are manually withdrawn through dispensing slot. Unit will continue to feed properly when reloaded with a partial load in place. Refill dispenser by unlatching door and replacing towels for an empty or partially empty unit. 4.2 gal. (16 L) stainless steel waste receptacle. Towel dispensing slot has hemmed-in rolled edge for snag-free dispensing and user safety.

Note: ASI Piatto™ products are made to order and are not returnable.

Finished wall opening (FWO):

13-1/16″ x 55-1/16″ x 4-11/16″

(332 x 1399 x 119 mm) min

Unit size:

13″ x 55″ x 4-9/16″

(330 x 1397 x 116 mm)

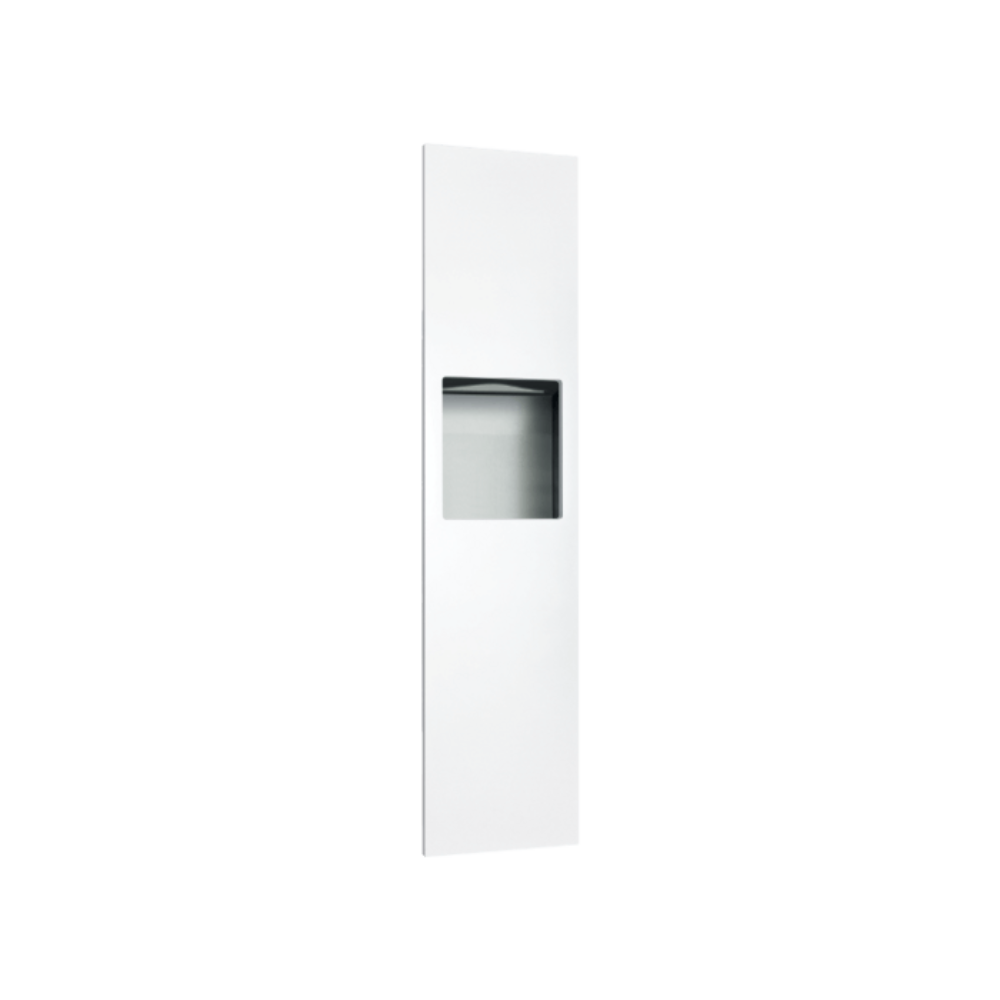

Download: Phenolic White

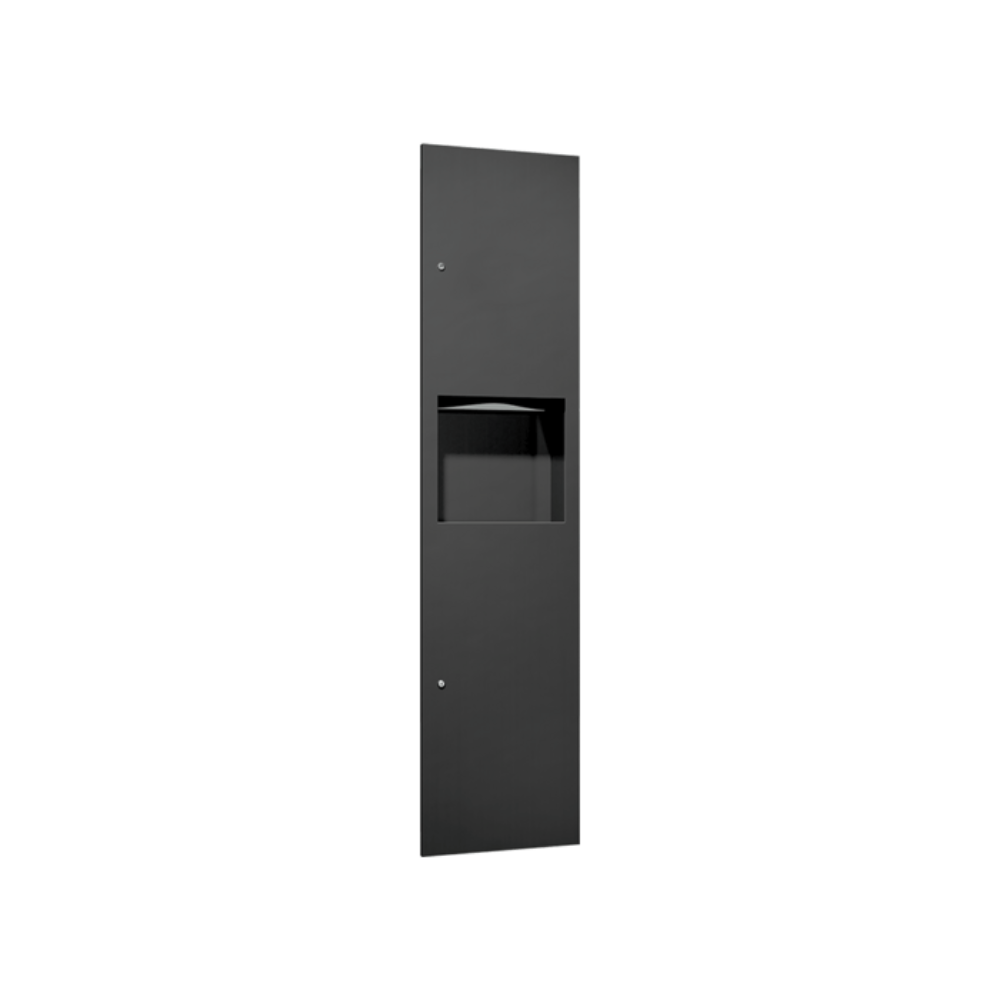

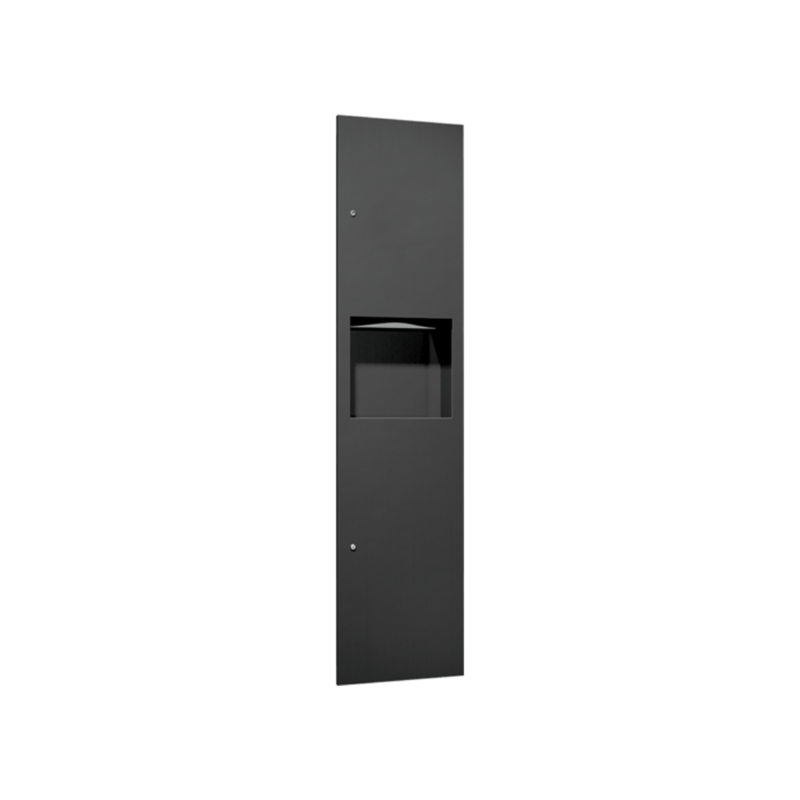

Download: Phenolic Matte Black
