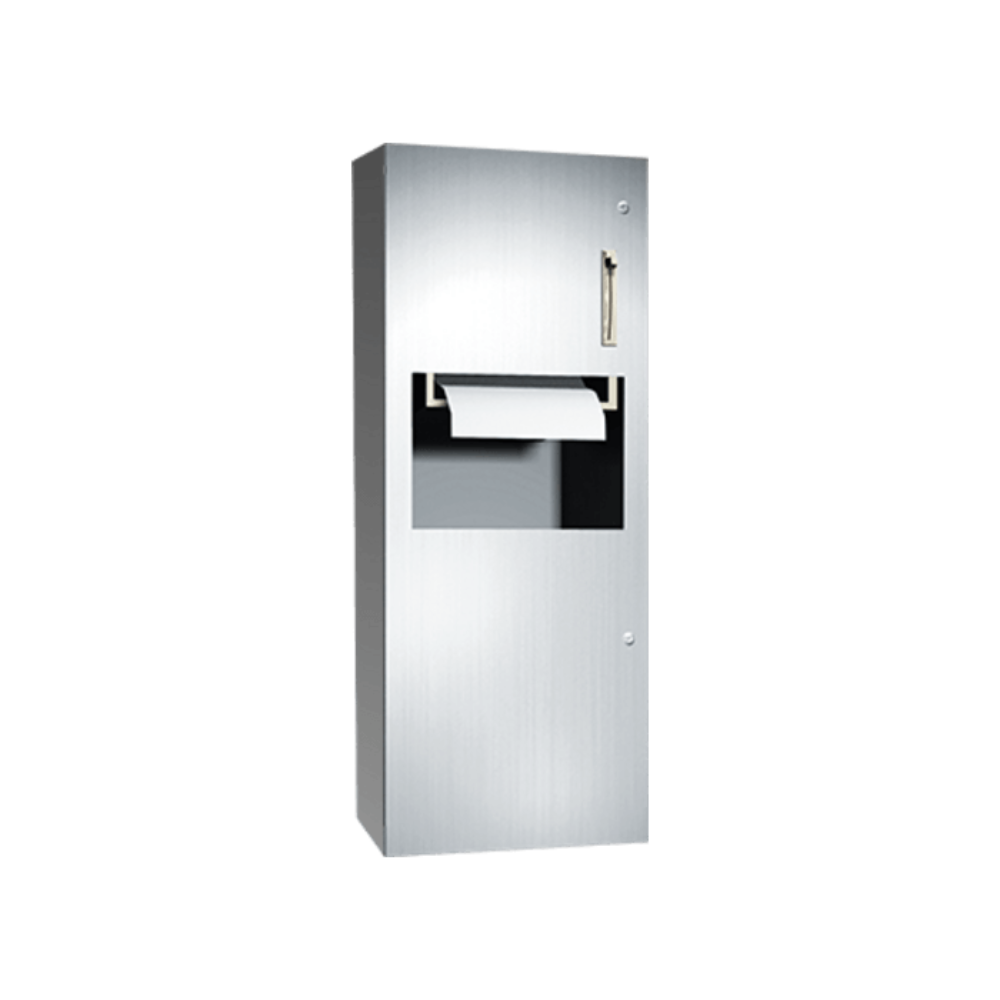

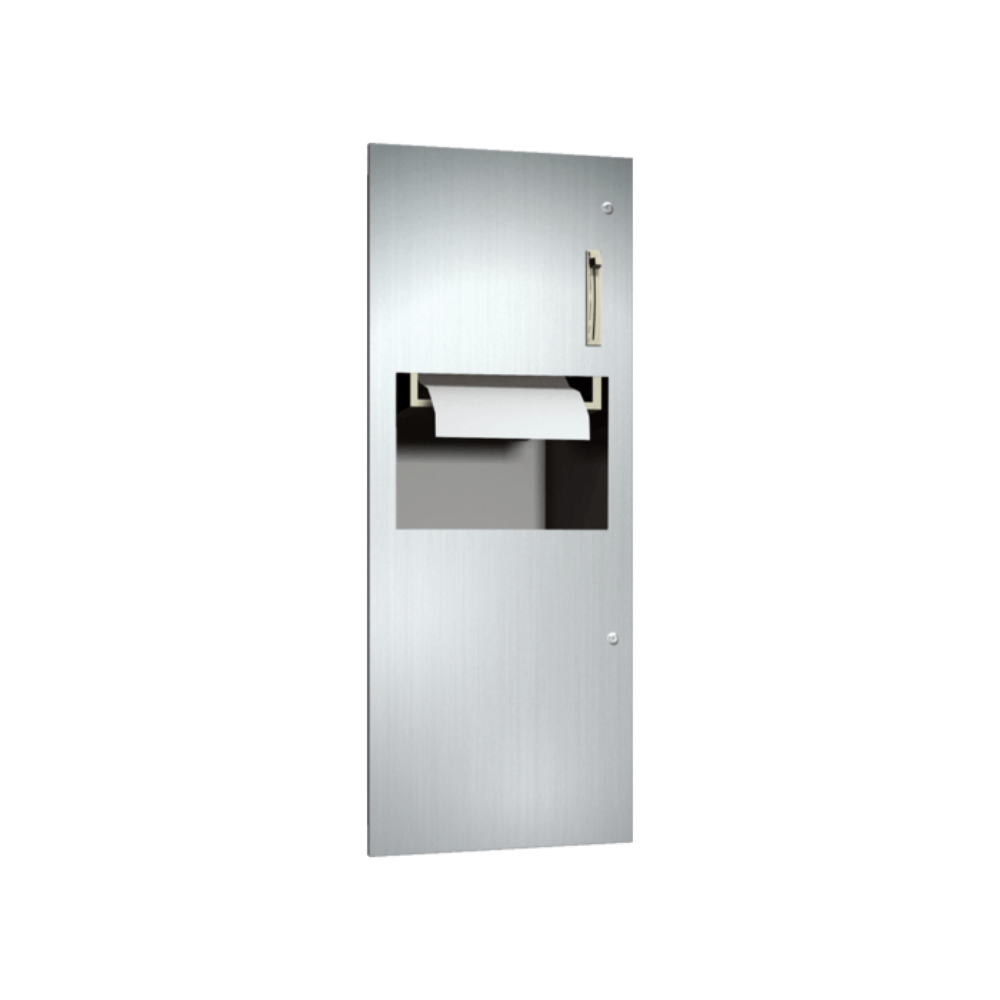

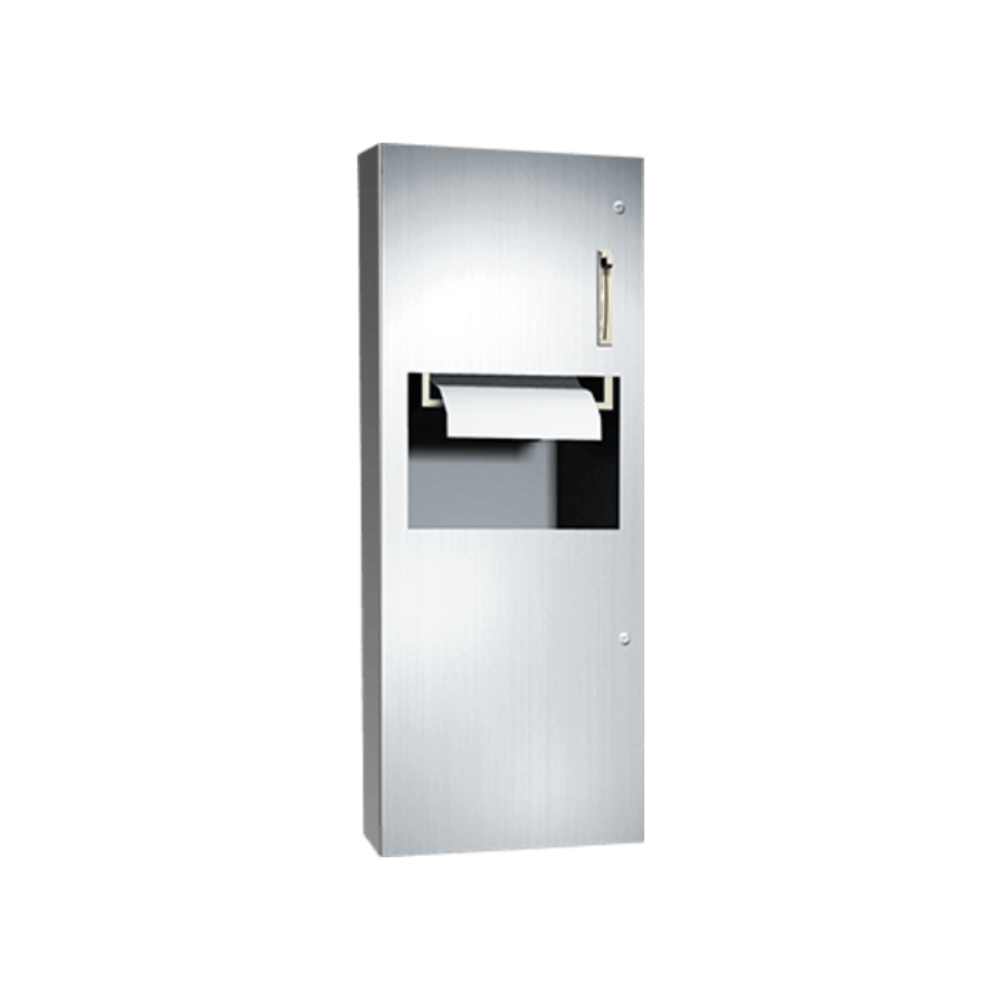

10-64696 Simplicity Series

Mechanically dispenses one 8" diameter (Ø203) x 8" or 9" (203/229) wide standard towel roll up to 800 feet (244m) long and one stub roll up to 4" diameter (Ø102) and has a waste capacity of 9.4 gallons (36 liters)

Towels are fed by lever action. Towel feed length is adjustable for economy by pin (supplied) limiting of lever stroke length. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position. Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Locking full-face door over compartments prevents unauthorized access or removal.

Global Dimension:

16-1/16″ x 41-1/4″ x 9-5/8″

(408 x 1048 x 245 mm)

Wall Opening:

Variable, see technical data sheet.

Download: Recessed

Download: Semi-Recessed

Download: Surface Mouned
