10-64696A Piatto Series

This sophisticated automatic paper towel dispenser and waste bin is designed to be completely flush with the bathroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using furniture-grade, on-site adjustable hinges and secured by an internal spring-loaded latch. All hardware is concealed, contributing to the minimalist appeal of the Piatto™ collection.

The contactless proximity sensing unit holds and dispenses a standard 8″ diameter [Ø203] x 8″ wide [203] hand towel roll up to 800 feet (244m) long and an 8″ wide [203] roll up to 4″ diameter [Ø102] and automatically switches to the main roll when the base roll is finished and the feed tabs are properly engaged.

The dispenser is powered by a plug-in AC adapter - C-UL-US and CE approved internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz and providing an output of 5VDC @ 1A

Or

is powered by 4 D-type batteries (not included)

and automatically activates towel dispensing when hands are placed in the sensor area. Each time it is activated, the unit dispenses a towel length selected by the owner by adjusting the length, delay, and paper-saving switches.

The bin has a capacity of 9.9 gallons (37.3 L) and is emptied manually.

Note: ASI Piatto™ products are made to order and are not returnable.

Finished wall opening (FWO):

16-1/8″ x 41-5/16″ x 10″

(410 x 1049 x 254 mm) min

Unit size:

16-1/16″ x 41-1/4″ x 9-11/16″

(408 x 1048 x 246 mm)

110-240V:

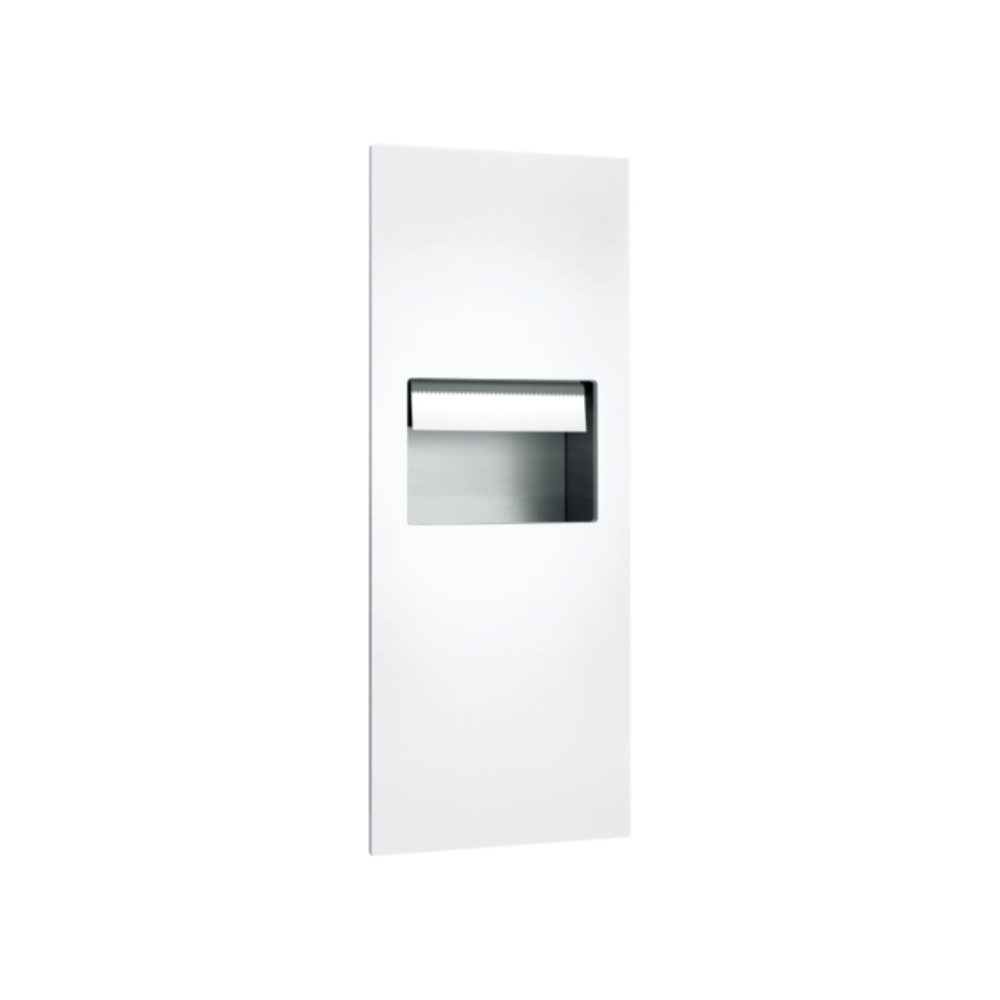

Download: Phenolic White

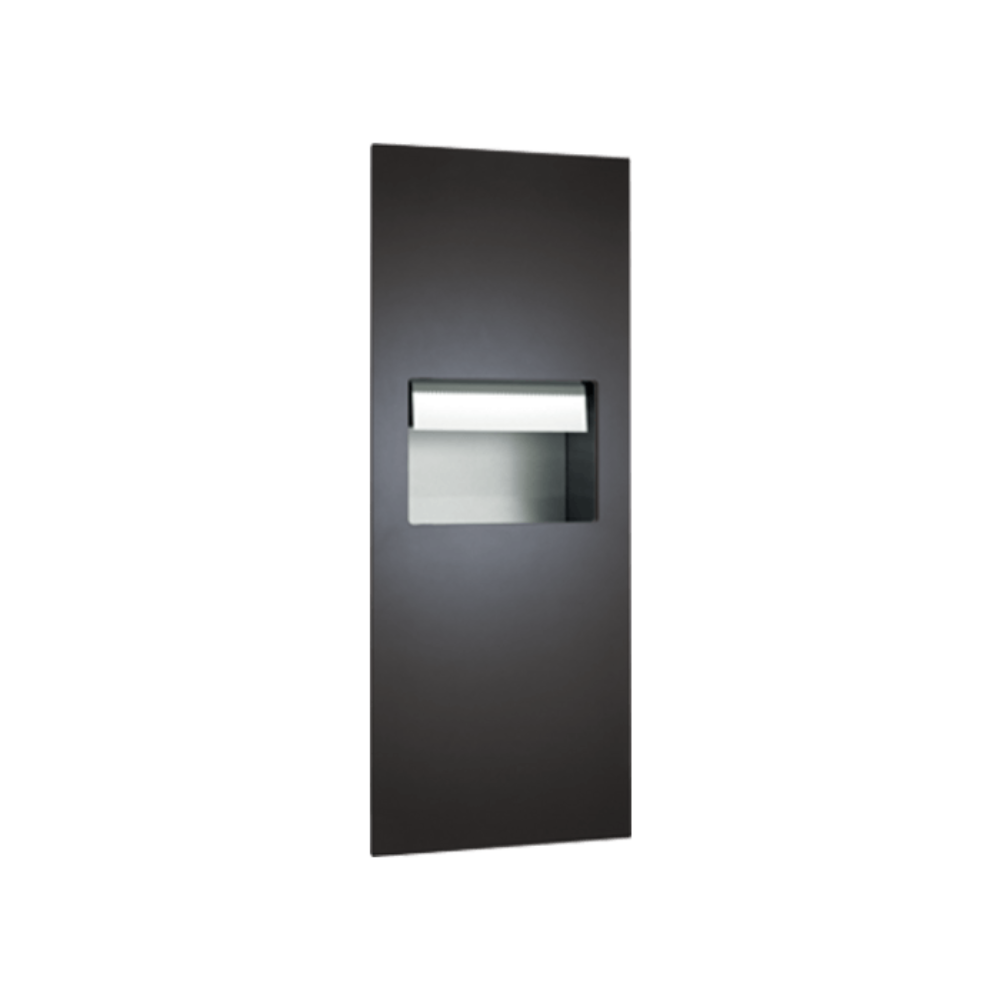

Download: Phenolic Matte Black

With Battery:

Download: Phenolic White

Download: Phenolic Matte Black
