10-8203 Series

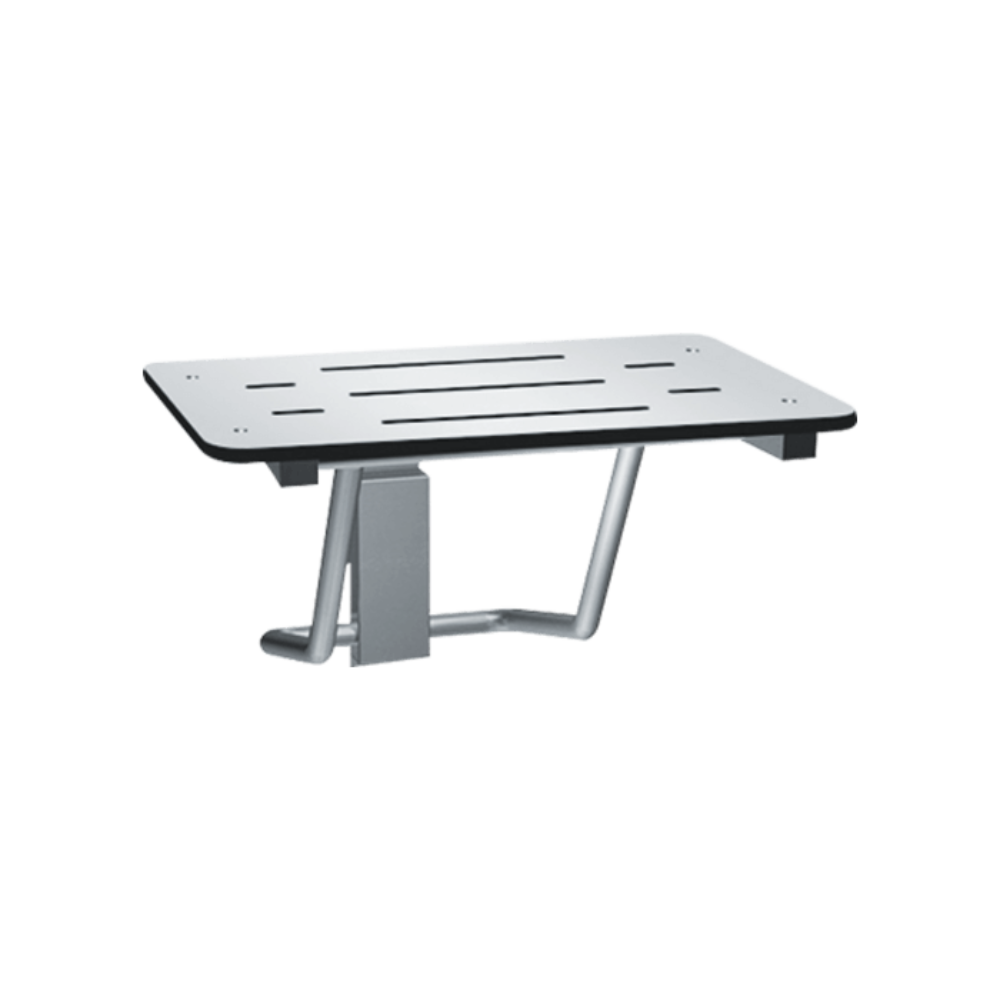

Seat is 5/16” (8 mm) thick, one piece, solid phenolic, semi-gloss laminate white colored top and bottom and shall have black edges. Frame, support legs, flanges and bracket are type 304 satin finished stainless steel. Guide bracket shall control seat lowering into operating position.

Model 18":

18″ x 17″ à 19″ x 14-5/8″

(457 x 432 à 483 x 371 mm)

Model 20":

20″ x 13-3/16″ x 15-7/8″

(508 x 331 x 403 mm)

Model 28":

28″ x 13-3/16″ x 15-7/8″

(711 x 331 x 403 mm)

Model 33":

33″ x 13-3/16″ x 15-7/8″

(838 x 331 x 403 mm)
