10-8205 Series

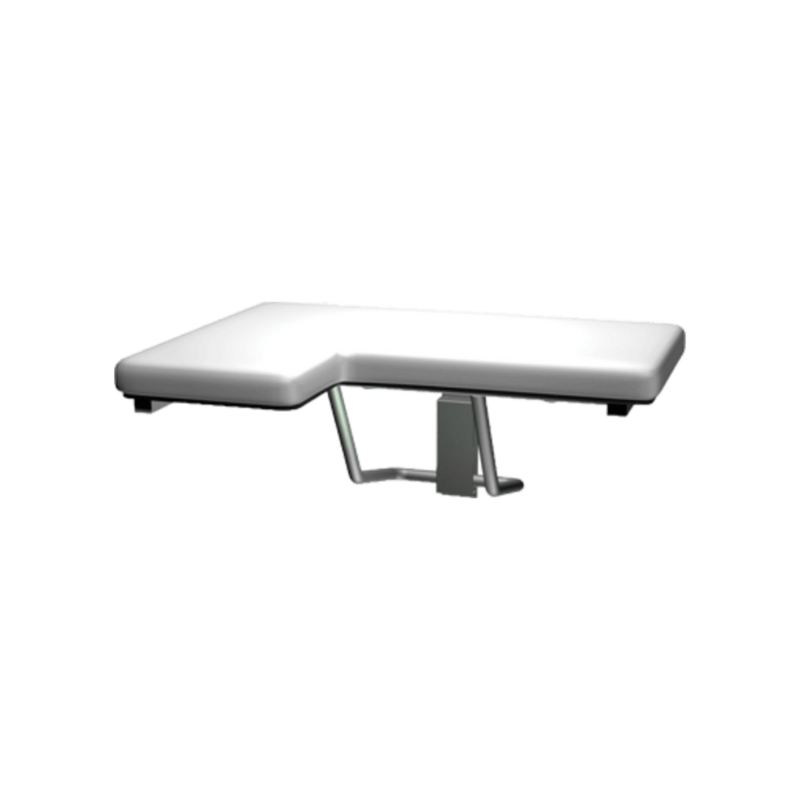

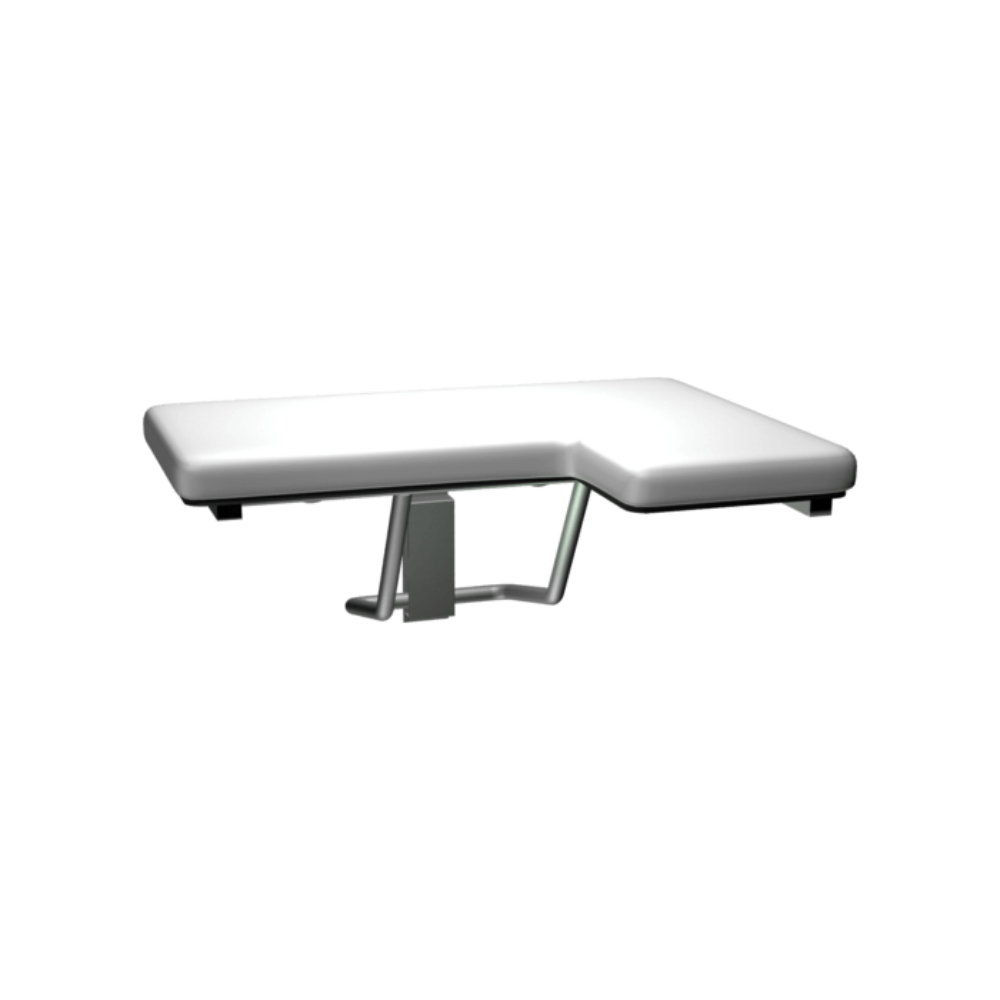

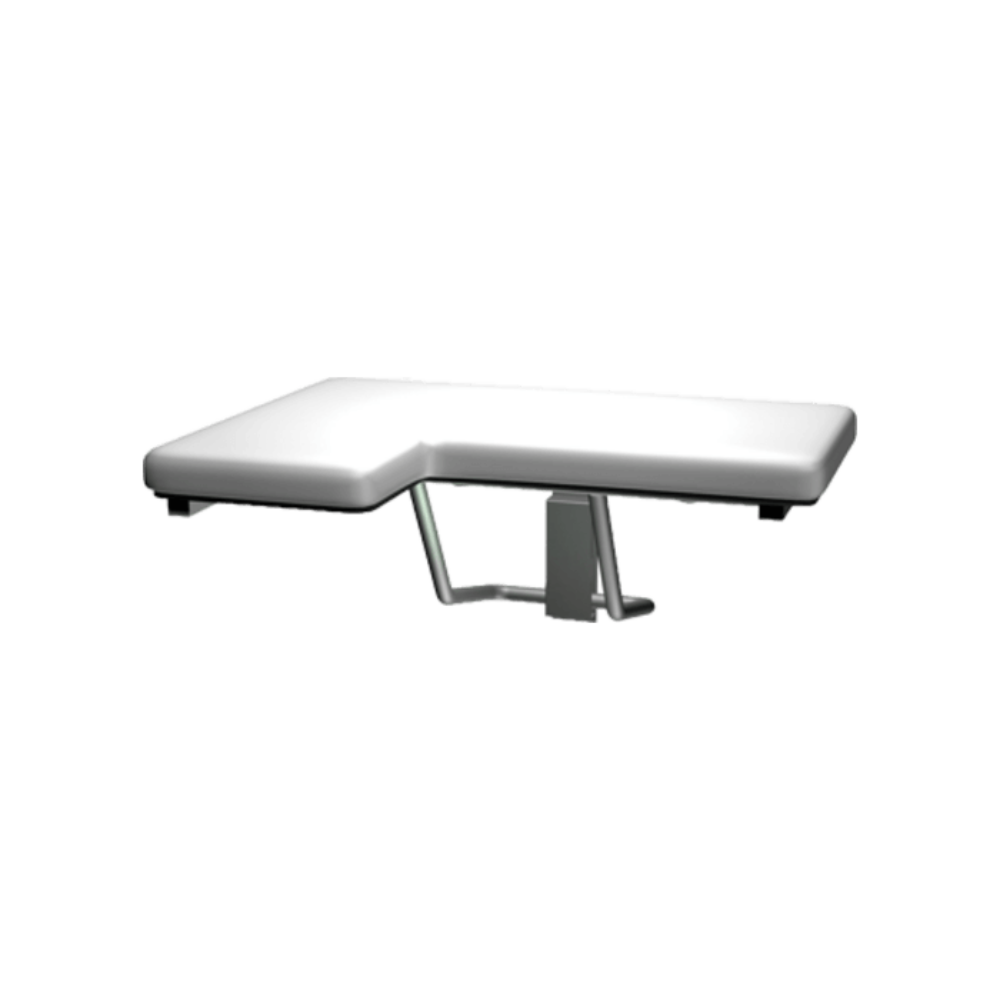

Seat with cushion covered in off-white Naugahyde®. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Seat measures 33″ (838 mm) wide and projects 22-7⁄8″ (581 mm) from wall. Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly.

Fold Down:

33″ x 17″ à 19″ x 22-⅞″

(838 x 432 à 483 x 581 mm)

Fold Up:

18″ x 34-⅜″ à 36-⅜″ x 22-⅞″

(457 x 873 à 924 x 581 mm)

Download: Left Hand

Download: Right Hand
