10-8206 Series

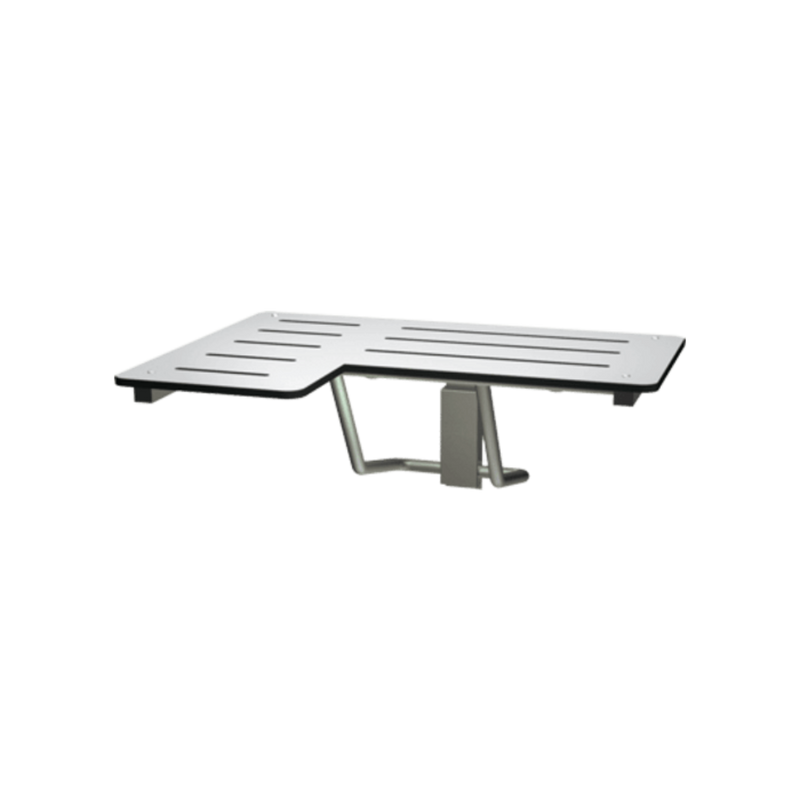

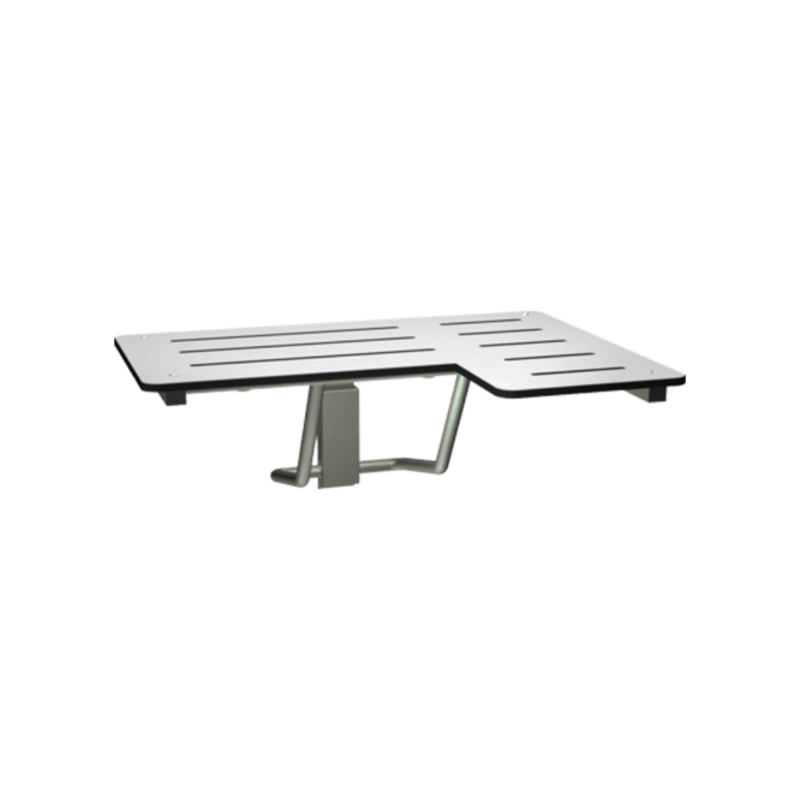

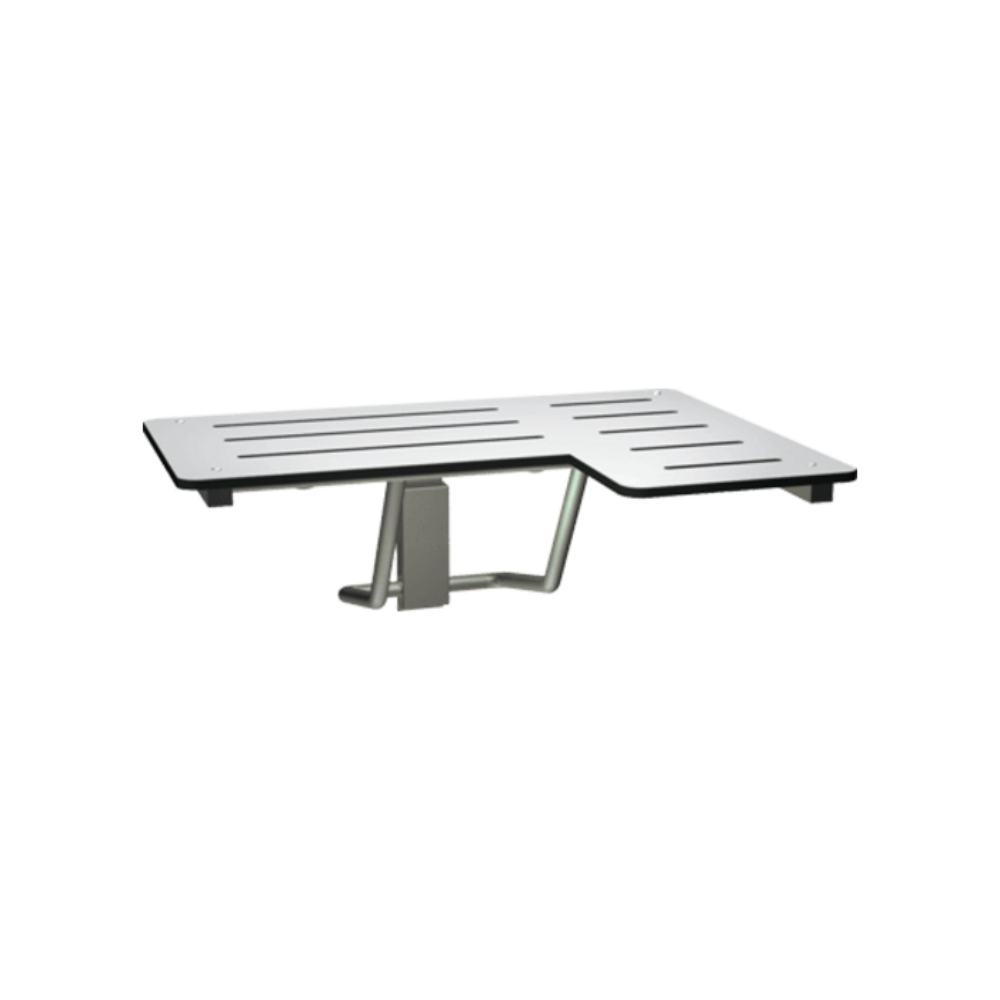

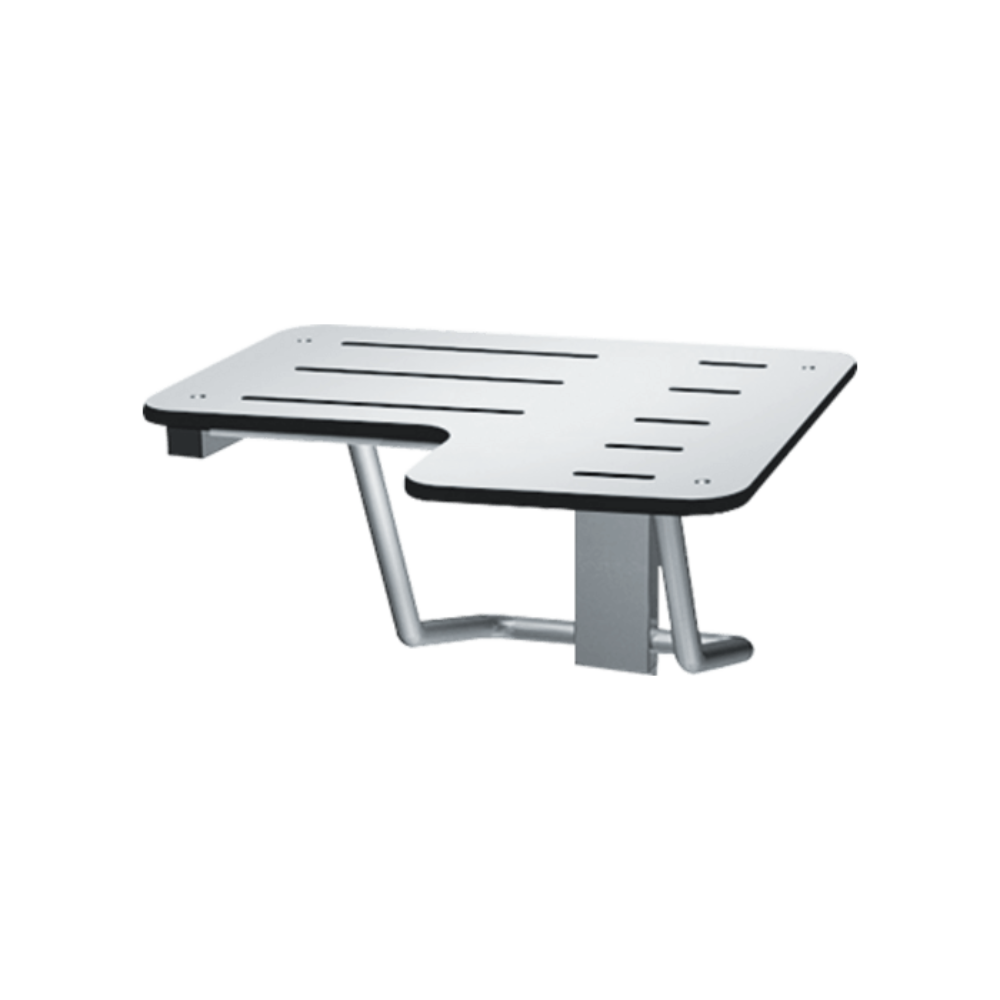

Normal Closing Model:

Seat is 5/16” (8 mm) thick, one piece, solid phenolic, semi-gloss laminate white colored top and bottom and shall have black edges. Frame, support legs, flanges and bracket are type 304 satin finished stainless steel. Guide bracket shall control seat lowering into operating position. Seat measures 28” (711 mm) wide and projects 21” (533 mm) from wall.

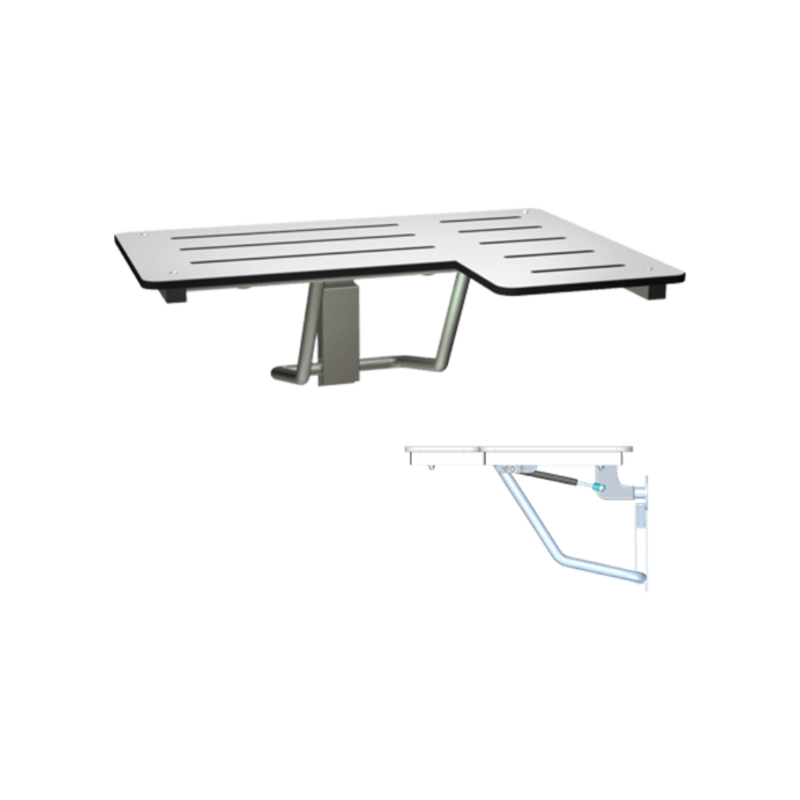

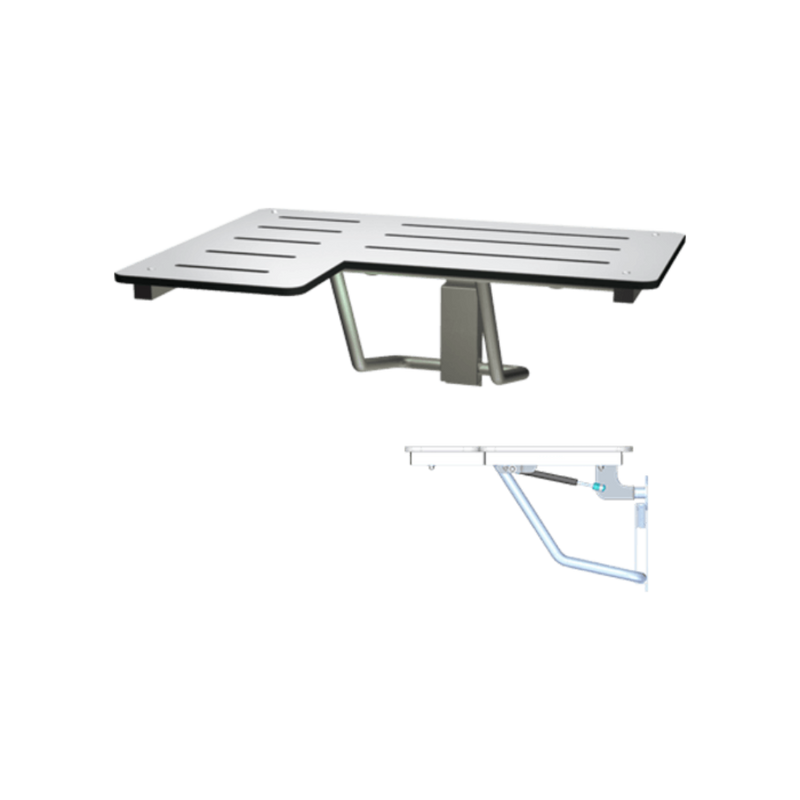

Soft Closing Model:

Slow Close Phenolic L-Shaped Fold Up Shower Seat provides added safety and ease of use.

Gas charged struts assist one handed opening by allowing the slowly lowering seat to its operating position and also assists in partial closing. Guide brackets with a spring detent prevents the seat from dropping and provides positive support while in use, as well as spring locking in its storage position.

Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly. Seat is ½” (13 mm) thick, one piece solid, white colored, black core phenolic. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Phenolic seat ONLY is field reversible. Seat measures 33″ (838 mm) wide and projects 22-7⁄8″ (581 mm) from wall.

Width of 28":

28″ x 13-⅜″ x 22-½″

(711 x 331 x 572 mm)

Width of 33":

33″ x 17″ x 22-⅞″

(838 x 432 x 581 mm)

Download: Left Hand 28"

Download: Left Hand 33"

Download: Left Hand for Soft Closing 33"

Download: Right Hand 28"

Download: Right Hand 33"

Download: Right Hand for Soft Closing 33"
