BV-3-HL
Dimensions: 42 mm x 4.7 mm x 38 mm (1 ¹¹⁄₁₆” x ³⁄₁₆” x 1 ½”) | Vinyl thickness: 4,7 mm (³⁄₁₆”)
Dimensions:
42 mm x 4.7 mm x 38 mm
(1 11/16” x 3/16” x 1 1/2”)
Vinyl thickness
4.7 mm (3/16”)
Recommended for several types of buildings:
Residential, institutional, industrial and commercial buildings with pedestrian traffic only.

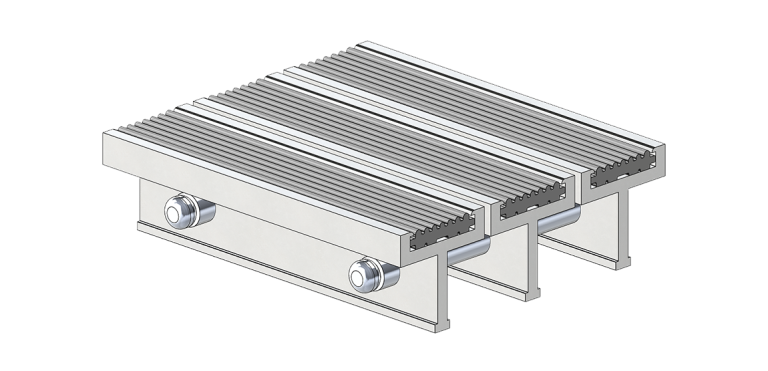

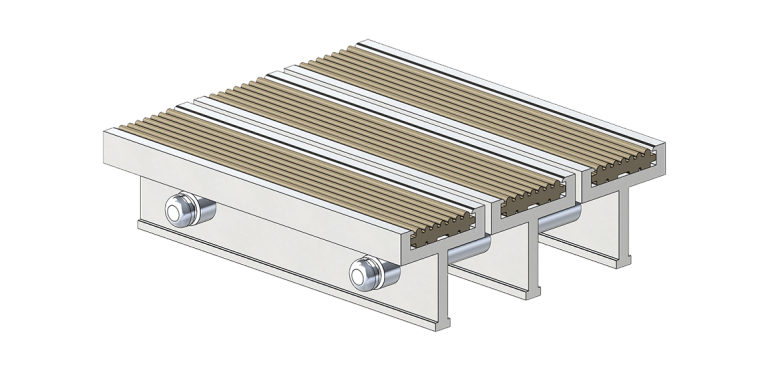

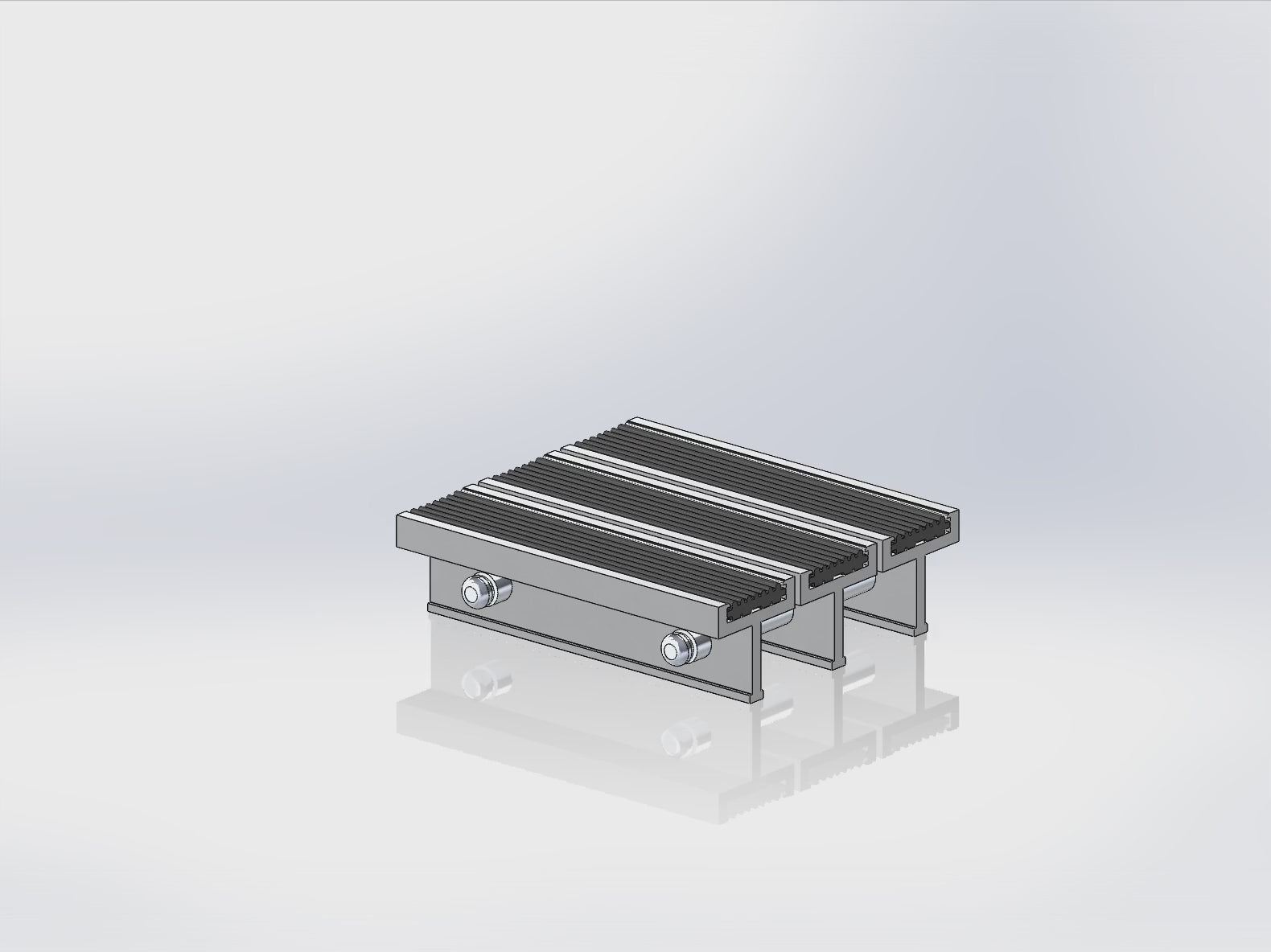

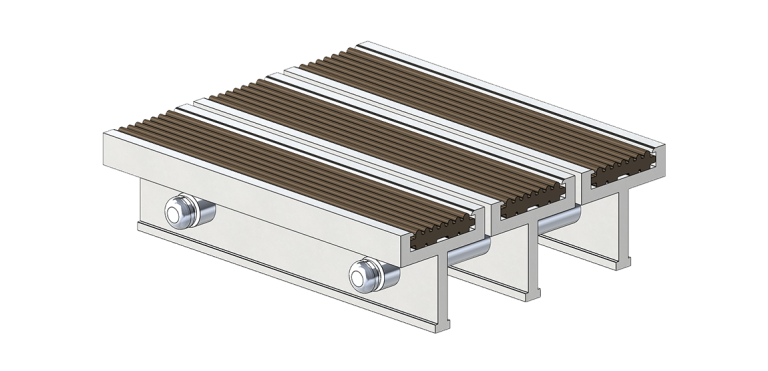

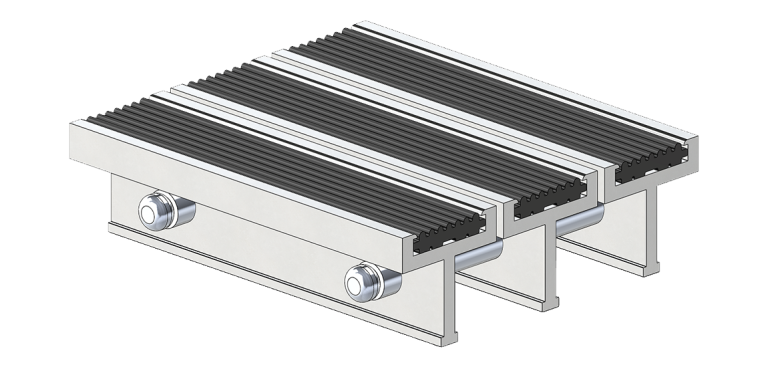

The grille slats are made of aluminum and feature a straight-surface vinyl insert. The vinyl inserts are interchangeable and specially designed to combine aesthetics and effectiveness. For maximum safety, the strips are locked at each end.
Specifications and Technical Data
Additional Accessories
When you need a complementary product to personalize your doormat, entryway, or roof access hatch, we're your first choice. Whether it's frames, basins, accessories, or options, we have the perfect complementary product to make your entrance stand out.
Frames
Solid and precise frames, designed to perfectly accommodate the foot scraper grids and ensure their stability while facilitating installation and maintenance.
TT TYPE
TT frames are designed to sit on top of the finished floor to protect it and keep out water. A total opening of ½ inch more is required. This is the preferred type of frame for an existing floor.
VV TYPE
VV frames are designed to be set into concrete, level with the finished floor. A total opening of 2 inches more is required to pour the concrete.
AD TYPE
AD frames are designed to be set into concrete or screwed down every 6 inches to be level with the finished floor. A total opening of ½ inch more is required to pour the concrete. This type of frame is ideal for an existing floor or a wall-to-wall space.
Pans
Durable and functional basins, designed to offer efficient drainage and keep your foot scraper grids clean and performing well at all times.
Galvanized Steel
Pans made from 22 gauge galvanized steel provide a continuous flat surface with no drainage. Several other gauges are available on request.
Aluminum
Pans made from 22 gauge aluminum provide a continuous flat surface with no drainage. Several other gauges are available on request.
Stainless Steel
Pans made from grade 304, 22 gauge stainless steel provide a continuous flat surface with no drainage. Several other gauges are available on request.
Accessories
Practical accessories designed to facilitate the installation, maintenance and safety of your equipment.
Screwdriver
Hex or star screwdrivers are useful with the “plate and screw” option.
Lifting Hook
Lifting hooks are special keys for GB-46 locks and serve as a lever to lift the grills.
Anti-Theft Screws
Stainless steel anti-theft screws are used when the “plate and screw” option is part of the foot grill.
Noise-Abatement Pad
Noise-abatement pads absorb and reduce noise in pedestrian crossings.
Options
Customizable options allowing you to adapt your products to your functional and aesthetic needs.
Anodization
Anodization is a surface treatment that applies another finish to aluminum using anodic oxidation. Its thickness varies between 5 and 50 micrometres. There is a choice of colours: clear 0.4 mil, clear 0.7 mil, bronze and black.
Hinge and Catch
The “hinge and catch” option holds the section up and secures the sections of the foot grill during maintenance.
Hinge and GB-46 Lock
The “hinge and GB-46 lock” option holds the section up and prevents vibrations in foot grills. It extends the product’s life and prevents tampering.
GB-46 Lock at the 4 Corners
The “GB46 lock at the 4 corners” option secures each section of the foot grill at the four corners and prevents vibration. It extends the product’s life and prevents tampering.
Plate and Anti-Theft Screw
The “plate and anti-theft screw” option secures each section of the foot grill at the four corners and prevents vibration. It’s an economical way to prevent tampering.
Do you want a specific model?
Call us at +1 (888) 811-4881 or email us at info@jaraco.ca to receive an instant quote.
