F-1003-BLK-30x30

Site Location

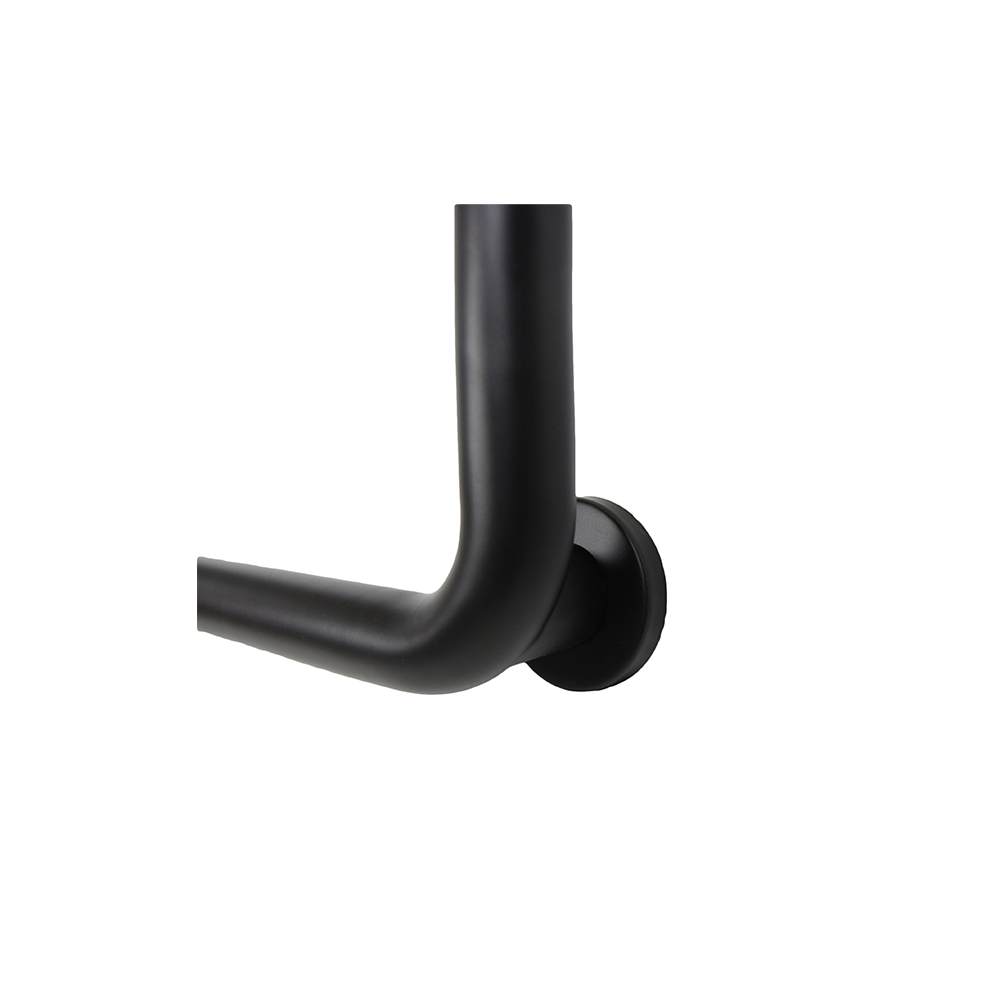

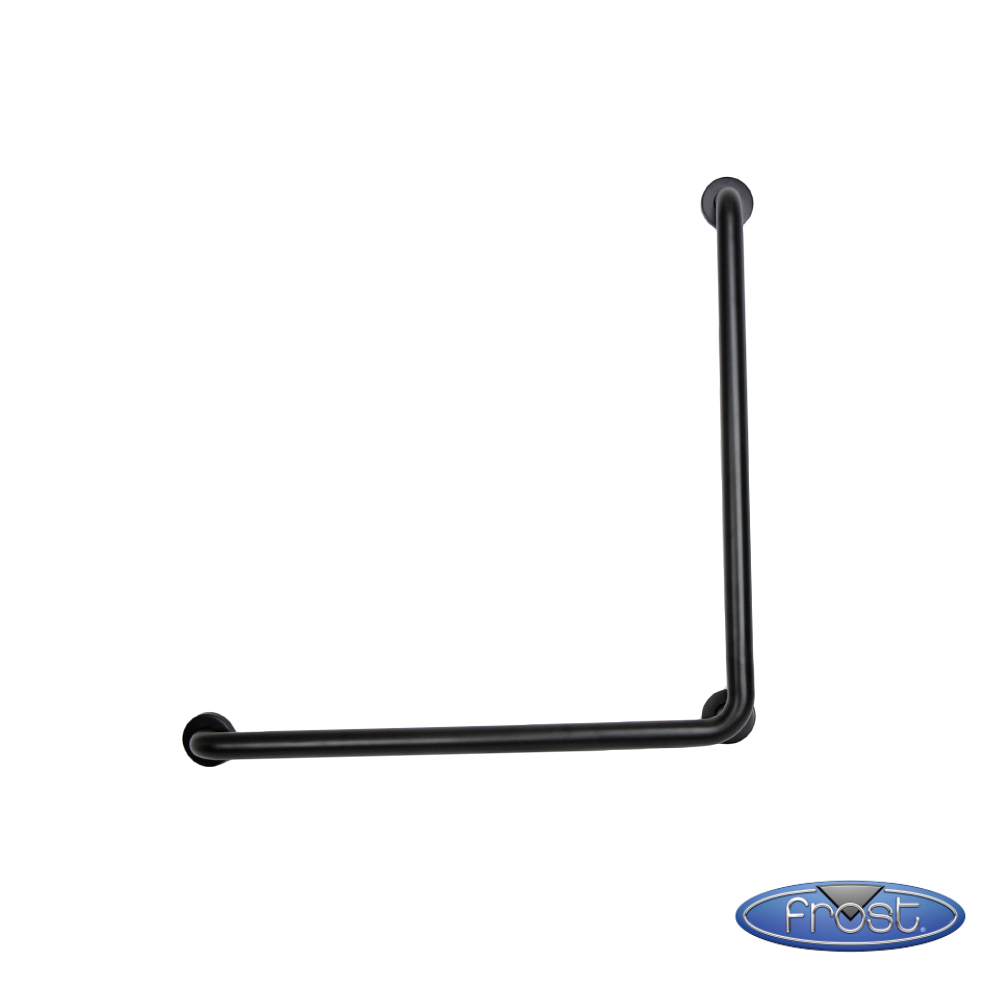

Frost’s 1003-BLK-30x30 stainless steel grab bars offer an antimicrobial matte black finish. These grab bars have a 1-1/2” diameter. Typically, these units are used in schools/universities, nursing homes, restaurants, malls, office buildings, condominiums, hospitals, recreation centres, and residential properties. The durable construction and high quality stainless steel make this unit a popular choice. The Frost BLK grab bar series comply with handicap codes requiring 1-1/2″ bar diameter and wall clearance of 1-1/2″. Barrier free access specifications may vary depending on jurisdiction.

Features

• Stainless steel
• Antimicrobial matte black finish
• Easy to install snap on flanges with concealed mounting
• 90 degree bend provides horizontal and vertical bar to hold

Materials

• Snap flange is 12 gauge stainless steel with a full 360 degree bead weld to the 18 gauge stainless tubing.  1-1/2″ dia. stainless steel, type 304
• Antimicrobial smooth matte black finish

Strength and Installation Warning
Frost grab bars that provide 1-1/2" (38mm) clearance from wall can support loads in excess of 900 pounds (408kg) if properly installed. Other grab bar configurations can support loads in excess of 250 pounds (113kg) if properly installed, complying with accessible design for structural strength. All grab bars must be installed by qualified trades persons. Installers must consult and comply with local building codes. Mounting hardware and other systems to be determined by contractor and installer pending specific structure, design, and conditions. All installations must be fully inspected and approved by property owners and maintenance personnel prior to bar being put into use. Failure to comply to proper installation procedure will void warranty and may result in malfunctioning or injury.

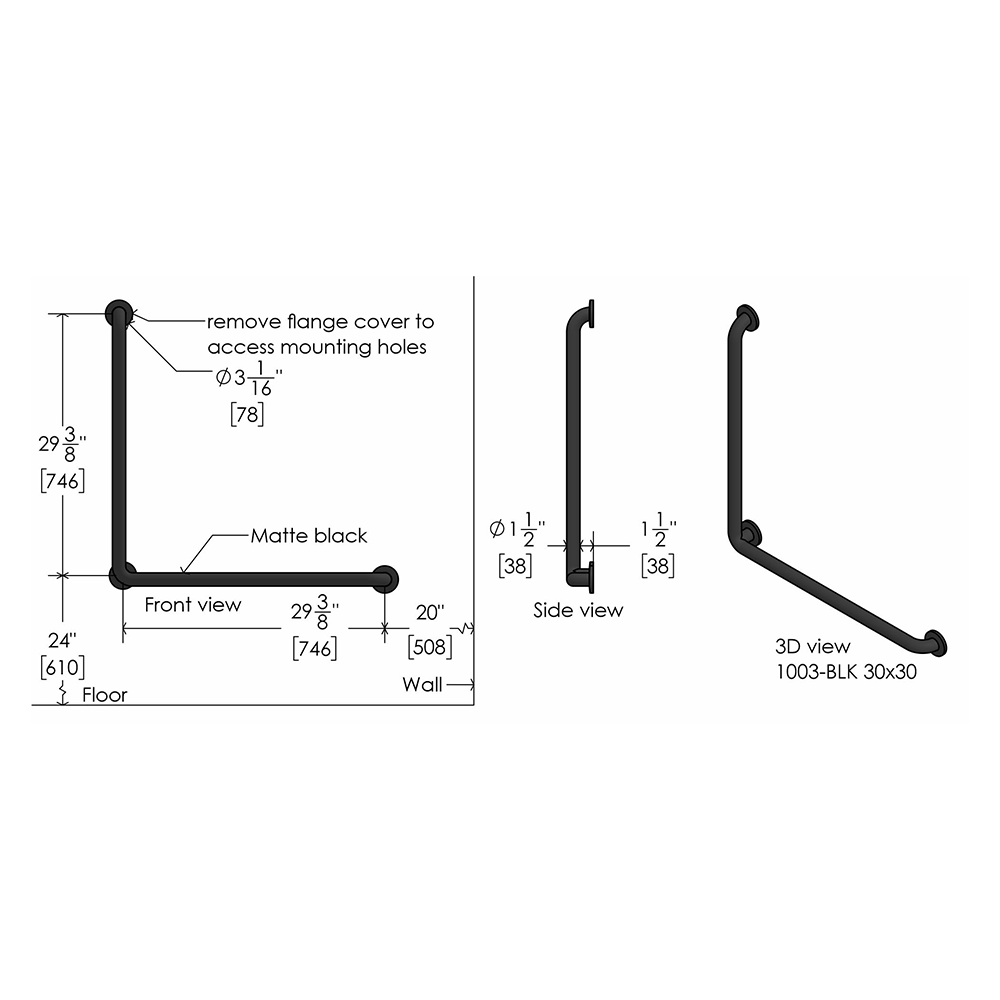

30"L x 30"D x 3.25"H (76.2cm W x 76.2cm D x 8.3cm H)
