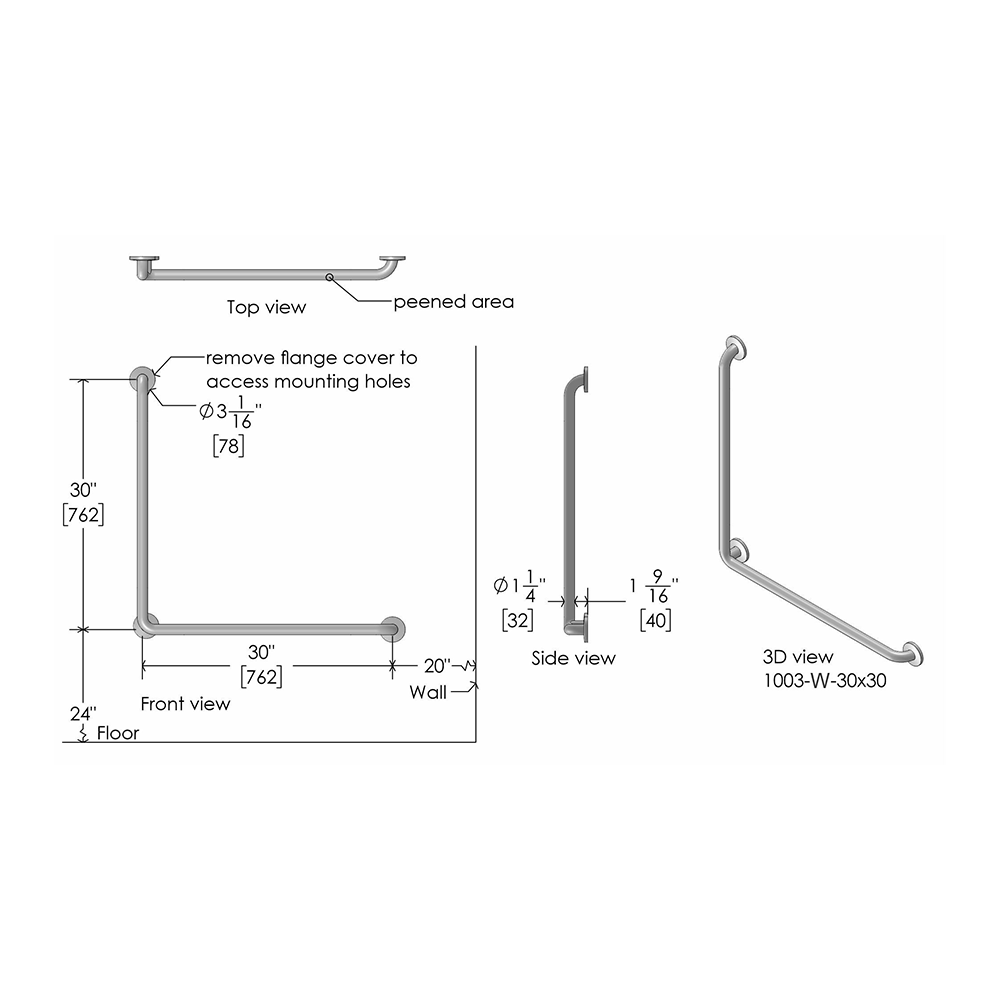

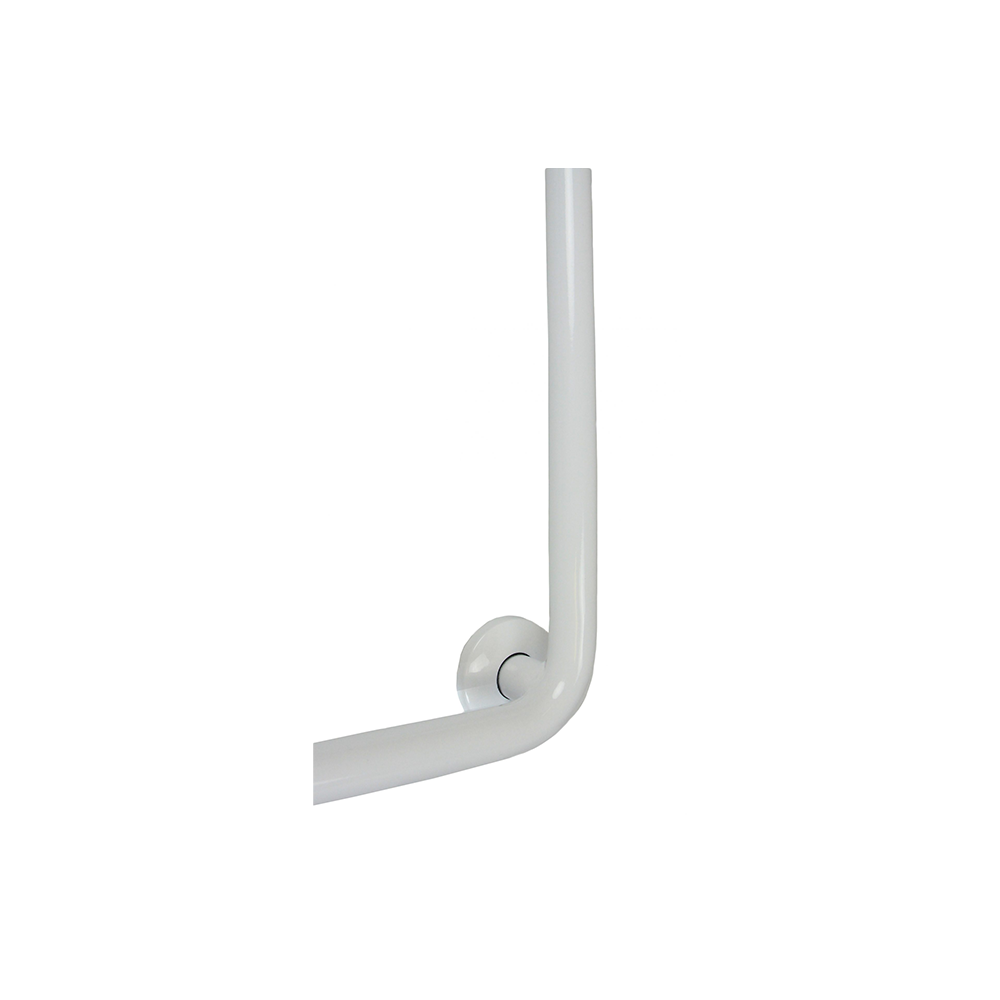

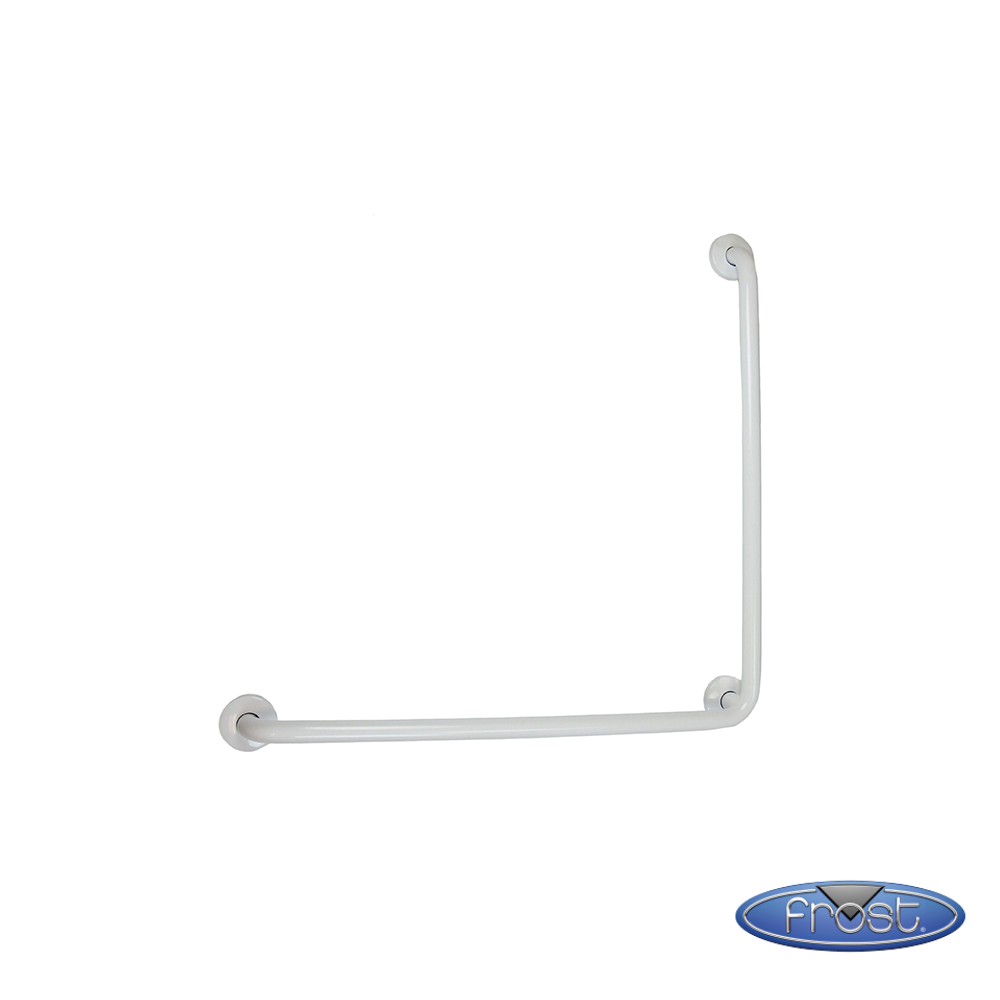

Site Location Frost’s 1003-W 30”x30” stainless steel grab bars offer a white finish. Typically, these units are used in schools/universities, nursing homes, restaurants, malls, office buildings, condominiums, hospitals, recreation centres, and residential properties. The durable construction and high quality stainless steel make this unit a popular choice. The Frost W grab bar series comply with handicap codes requiring 1-1/4″ bar diameter and wall clearance of 1-1/2″. Barrier free access specifications may vary depending on jurisdiction.
Features
Brushed stainless steel, white epoxy finish
Easy to install snap on flanges with concealed mounting
90 degree bend provides horizontal and vertical bar to hold
Materials
Snap flange is 12 gauge stainless steel with a full 360 degree bead weld to the 18 gauge stainless tubing. 1-1/4″ dia. stainless steel, type 304, white epoxy finish on bar.
Strength and Installation Warning Frost grab bars that provide 1-1/2" (38mm) clearance from wall can support loads in excess of 900 pounds (408kg) if properly installed. Other grab bar configurations can support loads in excess of 250 pounds (113kg) if properly installed, complying with accessible design for structural strength. All grab bars must be installed by qualified trades persons. Installers must consult and comply with local building codes. Mounting hardware and other systems to be determined by contractor and installer pending specific structure, design, and conditions. All installations must be fully inspected and approved by property owners and maintenance personnel prior to bar being put into use. Failure to comply to proper installation procedure will void warranty and may result in malfunctioning or injury.
