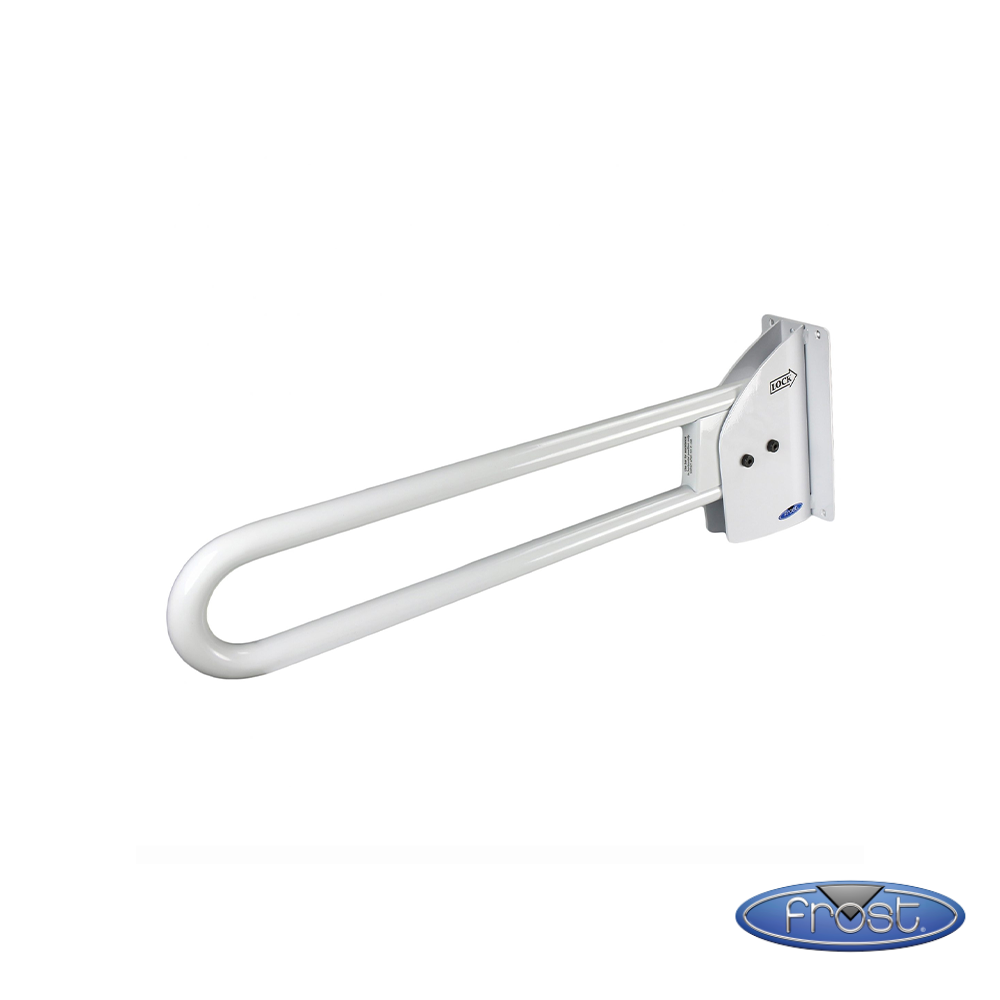

Site Location Frost’s 1055 series swing up grab bars are highly recommended by barrier-free design experts because they provide the optimum approach path for wheelchair use. Typically, these units are used in schools/universities, nursing homes, airports, malls, office buildings, hospitals, recreation centres, and residential properties.
Features
Can be mounted to the wall or to the carrier stand (code 1055-500)
Mandrel bending process provides uniform bar diameter
16 gauge stainless steel tube

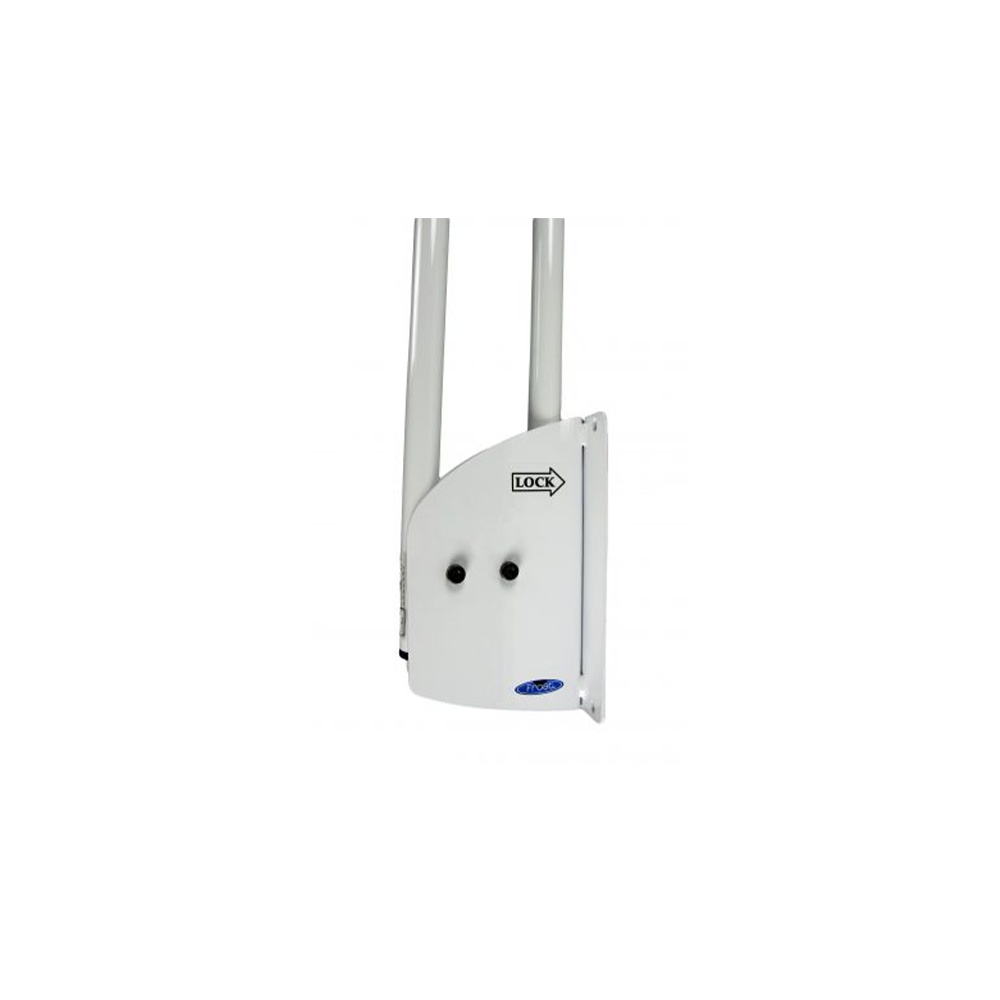

Can be locked into vertical or horizontal position
Will sustain loads of 600 lbs under its intended use
Materials
Tubing is 16 gauge type 304 1-1/4" O.D. (outside diameter) stainless steel with white epoxy finish

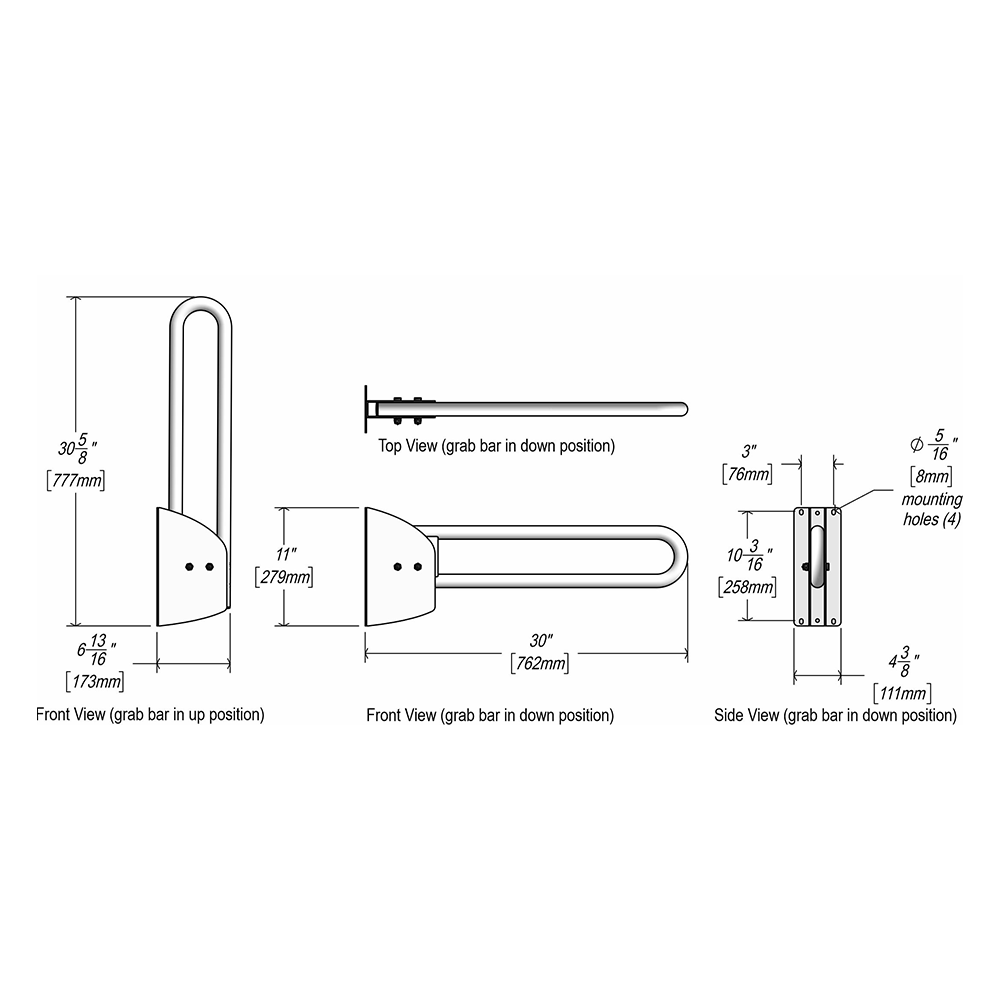

Up: 17.3cm L x 11.2cm W x 77.7cm H (6.8”L x 4.4”W x 30.6”H)
Down: 76.2cm L x 11.2cm W x 27.9cm H (30”L x 4.4”W x 11”H)
