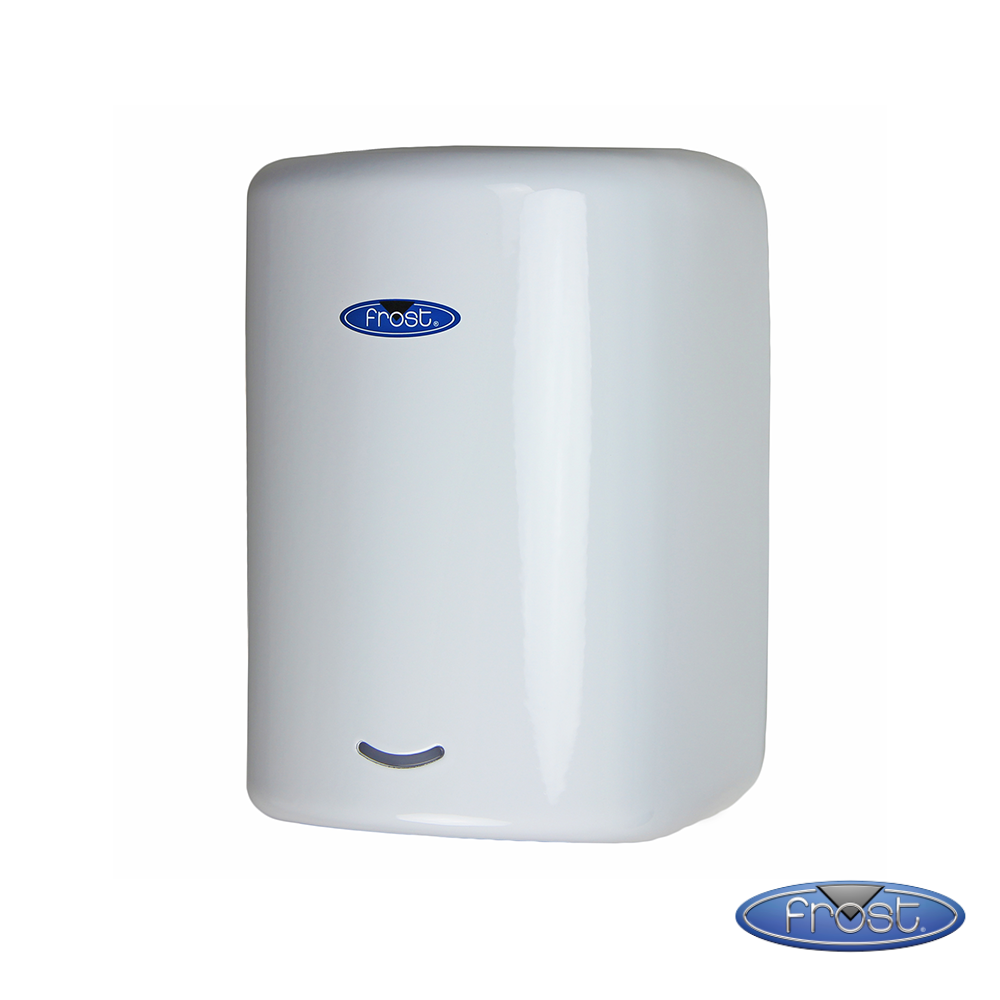

Site Location Frost 1192 high speed hand dryer rivals the fastest in the industry. These automatic hand dryers are both powerful and durable. These hand dryers are often used in high volume areas such as: schools/universities, recreation centres, hospitals, fitness facilities, cinemas, restaurants and airports.
Features
Touchless operation
Wind velocity: (100m/sec, 225mi/hr)
Approximately 7-10 second drying time
Sound level: 62.8-68.2 db
Certifications: UL, CE, GS, CB, BSMI, EMC, LVD, WEEE, ROHS, GreenSpec certified, & EPD (Environmental Product Declaration) in accordance with ISO 14025
Operation
Touch free sensor is activated when hands are placed within the set range under spout. The sensor range is 7” (18cm). Blue L.E.D. helps target ideal drying area. The whole unit is rated at 1600 watts. Heating element is 900 watts. Dual ball bearings brush motor is 700W, 18000 R.P.M. The decibel reading at 1 meter is 62.8-68.2dB. Operating Voltage: 110-120 Vac, 50/60Hz, 1.3 – 1.6 kw. Amps drawn: 14.5. Electrical Safety: Timing Protection: 60 second auto shut off. Motor thermal protection: contains an auto resetting thermostat which turns the unit off at 105° C (221° F). Motor overload protection: motor assembly has a replaceable fuse. Heater thermal protection: An auto resetting thermostat turns the unit off at 85° C (185° F). Drip proof: IP X1; Isolation: Class 1. This hand dryer can be hard-wired or plugged in with included AC adaptor.
Materials
Outer casing is 16 gauge drawn steel with porcelain enameled finish.

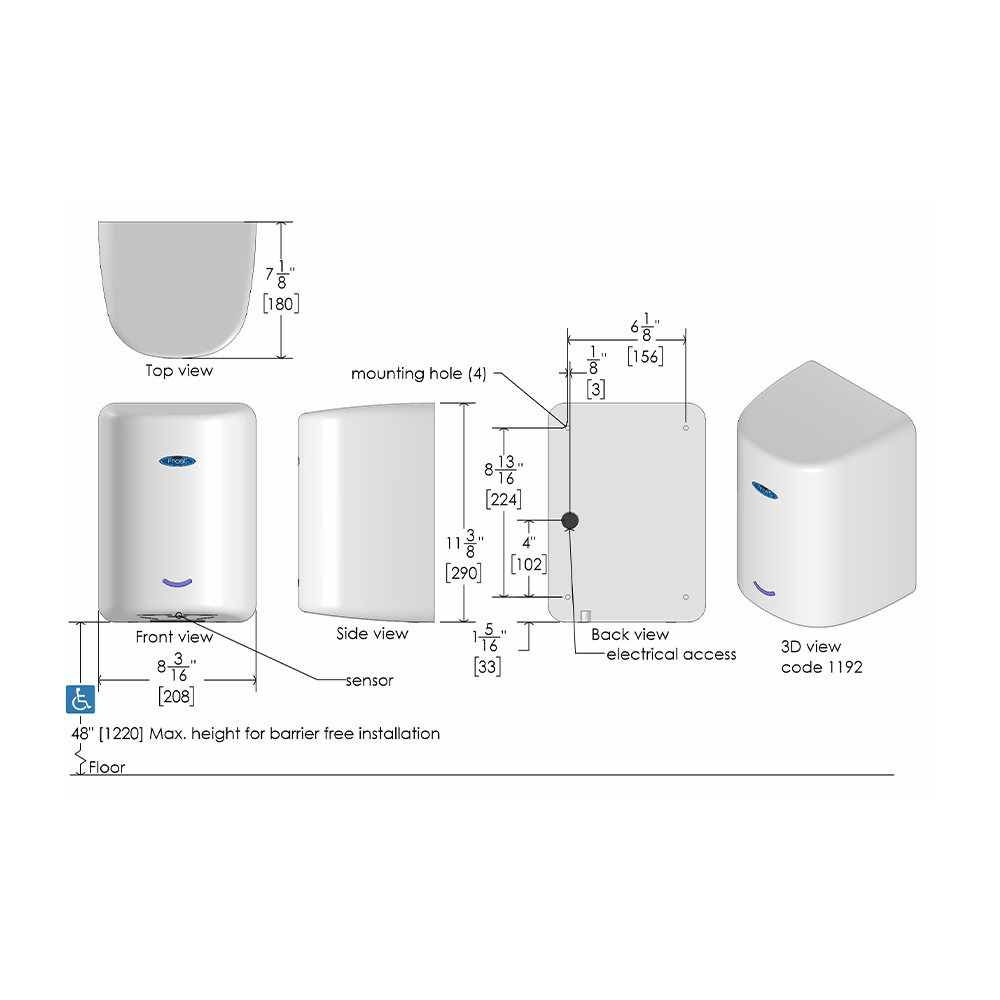

20.8cm W x 29.0cm H x 18.0cm D (8.2” W x 11.4” H x 7.1” D)
