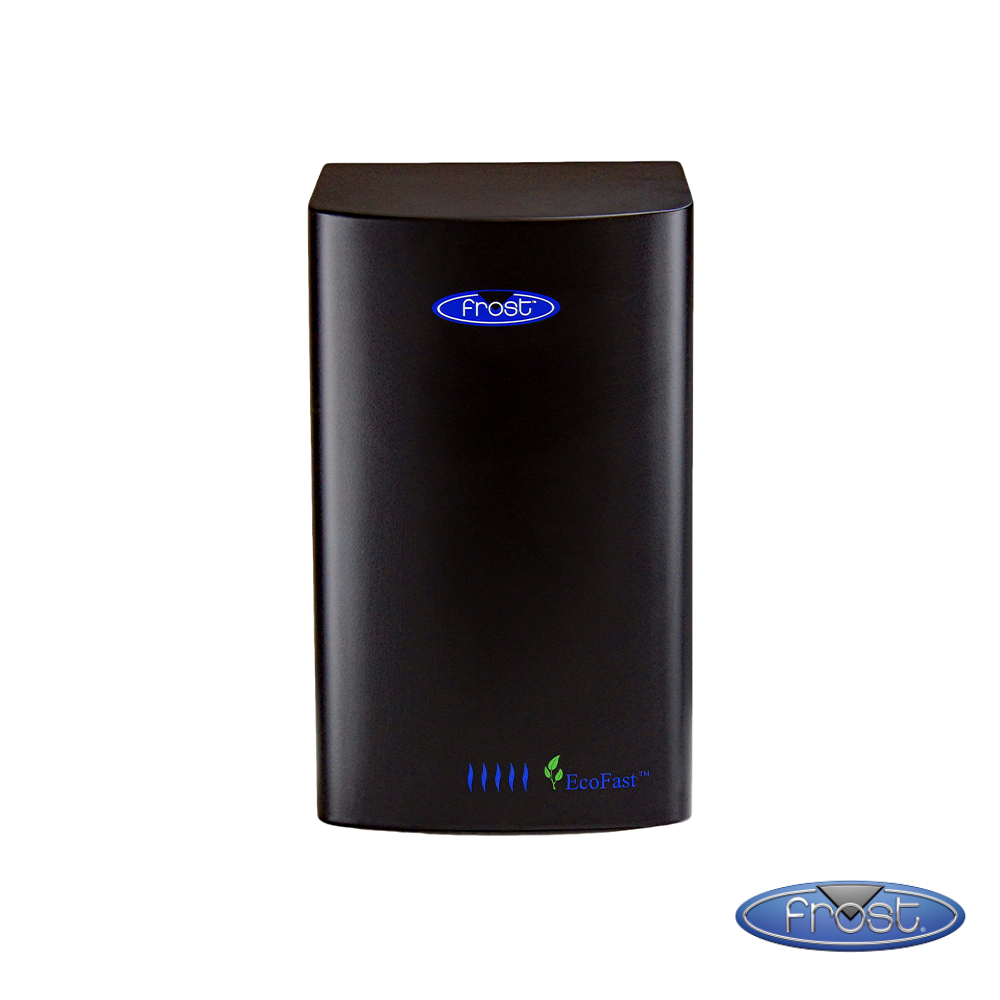

Site Location Frost 1198 eco-friendly high speed hand dryer provides high speed performance, while using less energy. These hand dryers are often used in high volume areas such as: schools/universities, recreation centres, hospitals, fitness facilities, cinemas, restaurants, and airports. The small size and powerful motor make these a popular choice.
Features
Touchless operation
Wind velocity: (95-115m/sec, 212-257mi/hr)
Approximately 10-15 second drying time
Sound level: 76.2 db at 1m
ADA compliant
Certifications: UL (Canada, enhanced mark), CE, EMC, LVD, WEEE, ROHS certified, & EPD (Environmental Product Declaration) in accordance with ISO 14025
Operation

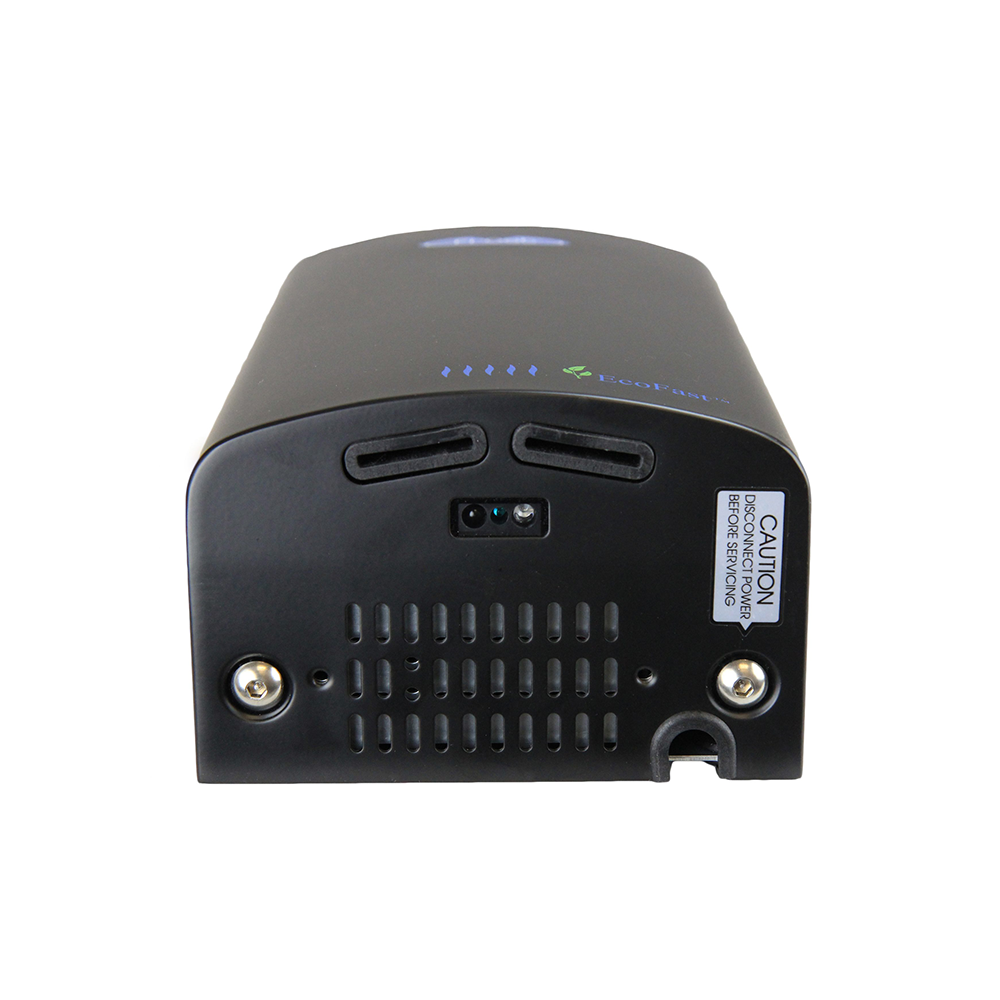

Touch free sensor is activated when hands are placed within the set range under spout. The infrared sensor range is 7” (18cm). Air speed output: 95-115 m/s (212-257 mi/hr). Volume: 80 m3/h, (47 cfm). Air output temperature: 55 degrees C (131 deg, F). Power Usage: Whole unit is rated at 1000 watts. Heating element: 500 watts. Operating Voltage: 110-120 Vac, 50/60Hz, 0.84 - 1kw. Amps 8.4. Brush motor with dual ball bearing 500w, 29,000 R.P.M. Electrical Safety: Motor thermal protection: contains an auto resetting thermostat which turns the unit off at 95° C (203° F). Heater thermal protection: auto resetting thermostat turns unit off at 85 degrees C (185 degrees F). Resets at 75 degrees C (167 degrees F). Thermal cut off at 142 degrees C (288 degrees F). Timing protection: 60 second auto shut off. Timing duration: 2 second delayed turn off. This hand dryer can be hard-wired or plugged in with included AC adaptor.
Materials
Outer casing is 18 gauge drawn steel with black epoxy finish.
