F-2013

Site Location
The 2013 complete pet waste system is perfect for any area with high traffic pet ownership. The system is designed for outdoor use in and around public parks, condominiums, residential paths, schools/universities, and common courtyard areas.

Features

• Case of 10 boxes of 200 bags (2,000 bags total per case)
• Bag dispenser which holds two boxes of bags (400 total bags)
• Waste receptacle with drainage holes
• Post which can be cemented or anchor mounted


Characteristics

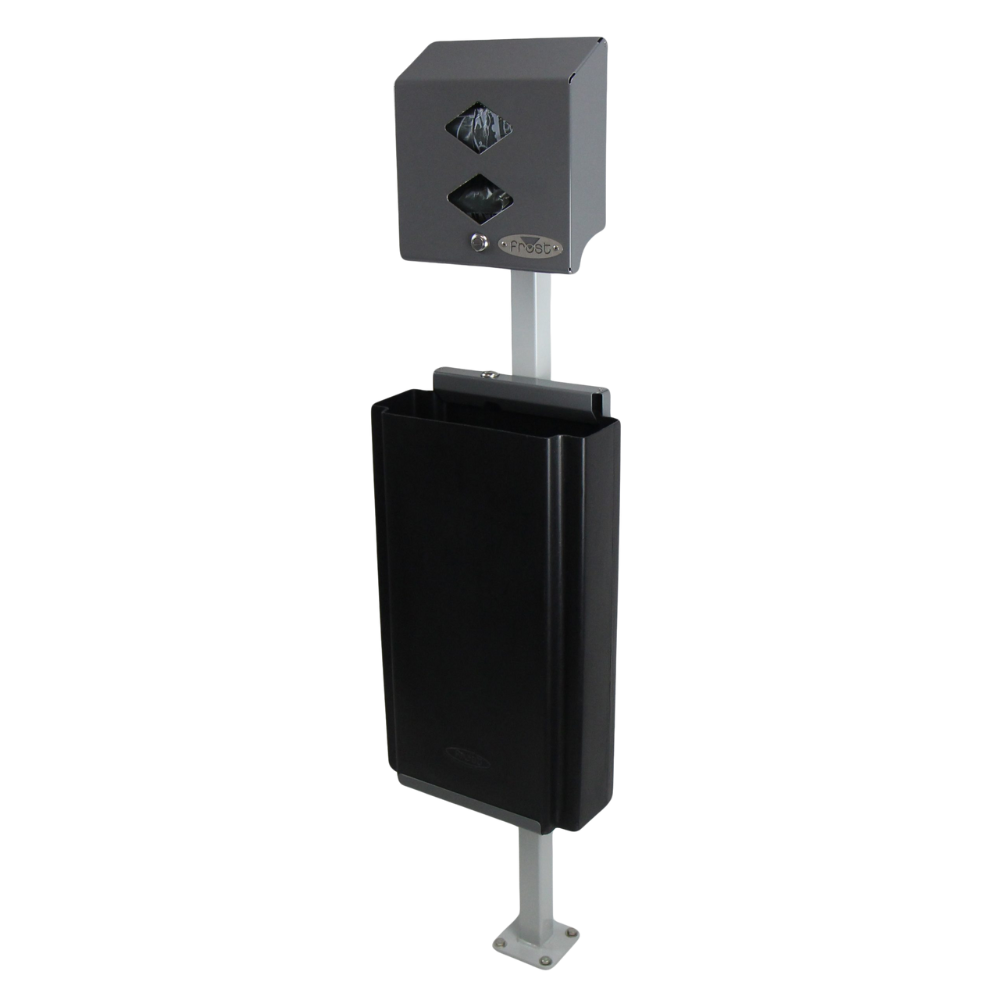

The 2013 complete Frost pet waste system includes one pet waste bag dispenser, one pet waste disposal, one case of pet waste bags (10 boxes of 200 bags), and one pedestal mounting post. The dispenser is made of 18 gauge steel and finished in grey powder coated rust proof paint. It is lockable and has a capacity of two pet waste bag boxes (total capacity of 400 bags). The disposal comes with steel, rust proof mounting bracket and 100% recycled rotationally moulded polyethylene disposal bin. This bin has a 18.75 litre (5.4 US gal) capacity and includes both drainage holes and keyed tumbler lock to prevent theft. The complete system includes a case of 10 boxes of pet waste bags. Each box contains 200 bags with the dimensions of 8"x 13" (20.3cm x 33cm). Finally, the package includes one mounting pedestal. This pedestal is made from 2"x 2" 14 gauge cold rolled steel and finished in grey rust proof paint. The dispenser comes with a label reading "Pet Waste Station" which can be applied to the top of the dispenser if the end user wishes to do so. This label is shown in the product images.

Capacity

• The dispenser holds two boxes of disposable bags. Each box holds 200 bags. Total capacity is 400 bags.
• Disposal: 18.75 litres (4.1 imp gal, 5.4 US gal).
• Bag size is 8" x 13" (20.3cm x 33cm). 200 bags are in each individual box. A case includes 10 individual boxes. There are a total of 2,000 disposable bags in a case.

Materials

• Dispenser: 18 gauge steel with RAL super durable TGIC-free polyester powder coating which provides a rust proof finish.
• Bracket for the disposal: 18 gauge steel with RAL super durable TGIC-free polyester powder coating which provides a rust proof finish.
• Disposal: 100% recycled polyethylene, black finish.
• Pedestal: Vertical support is 2" x 2" cold rolled steel tubing (14 gauge). Mounting plate is 1/8" cold rolled steel. Ground mounting plate is 1/4" cold rolled steel. All welded construction. Exterior grey polyester rust proof finish. Tested to survive harsh summer and winter weather.
• Consumable Bags: High density plastic bag, green in colour.
• Frost uses Super Durable TGCI-Free Powder Coat paint on all their site furnishings products. This type of powder coating is designed for superior weatherability compared to standard TGIC polyester powder coatings. This type of paint is designed to meet the AAMA (American Architectural Manufacturers Association) standard 2603. It provides excellent exterior color and gloss retention, superior over bake resistance, and good chemical resistance. The paint is designed to withstand 1500 hours of salt spray testing and 1 year of outdoor exposure in extreme conditions.

12″L x 7″D x 49″H

(30.5cm L x 17.8cm D x 124.5cm H)
