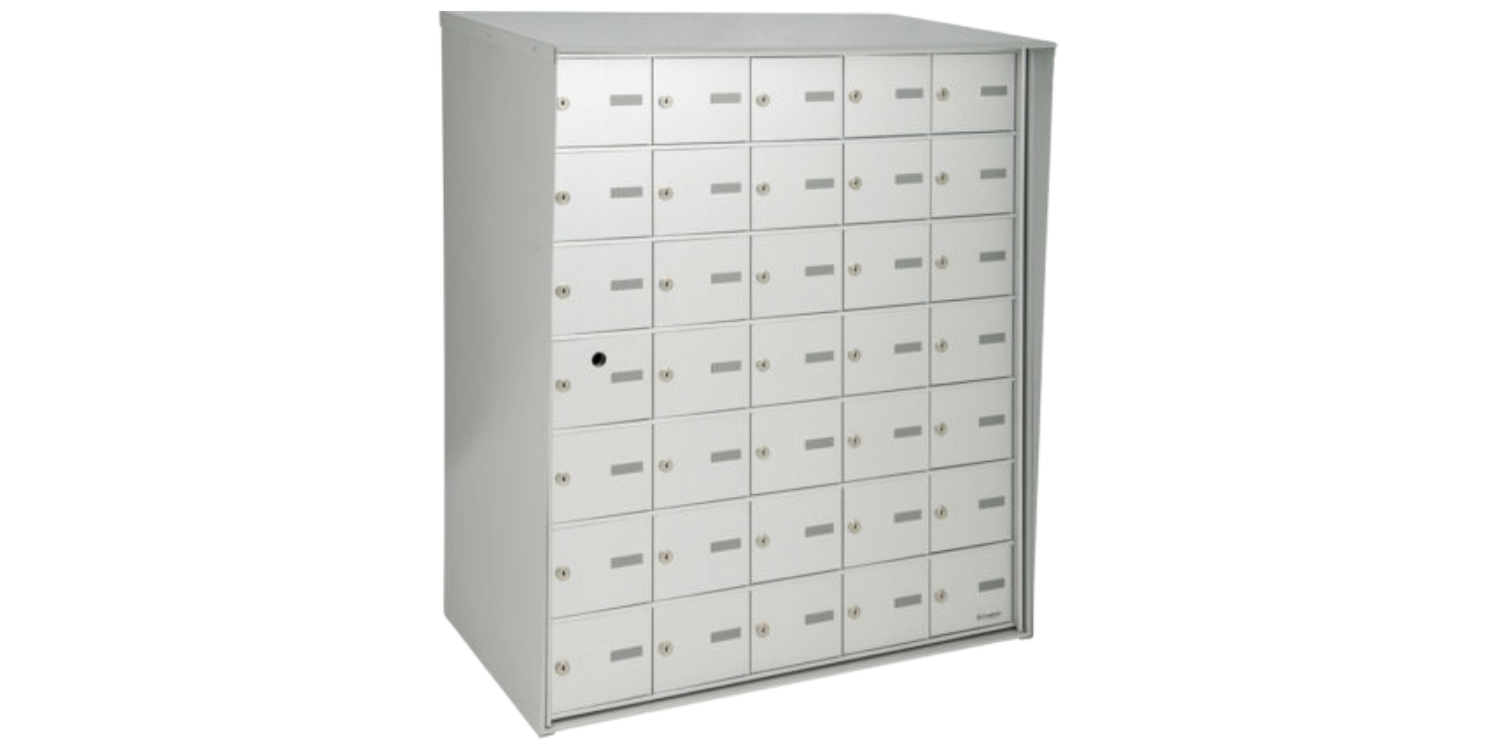

HE-400

• Material: Reinforced extruded aluminum | 20 gauge galvanneal steel
• Compartment locking mechanism: Cylinder lock with 2 keys. Keyed differently.
• Unit locking mechanism: High-security locking panel is designed to accomodate a master lock provided by Canada Post. The locking panel avoids the lost of an individual compartment dedicated the master lock installation.
• Compartment dimensions: Individual: 6 3/8" X 5 1/2" X 15" (16.2 cm X 14 cm X 38.4 cm)
• Plate holder: Each box features an engraved identification plate associated with an apartment, office or any other number requested by the client. 2" X 5/8" (5.1 cm X 1.6 cm)
• Rough opening: Mailbox width and height dimensions + 1/4" or + 6mm and minimum wall opening depth of 17 1/2" (44.5 cm).
• Finish: Natural anodized aluminum finish ⋕628
• Packaging: 1 per box

HE-400 4X5-LP: 27 ¹³⁄₁₆ X 29 ⁵⁄₁₆ X 19 ⅝

HE-400 4X6-LP: 27 ¹³⁄₁₆ X 34 ⅞ X 19 ⅝

HE-400 4X7-LP: 27 ¹³⁄₁₆ X 40 ⅜ X 19 ⅝

HE-400 4X8-LP: 27 ¹³⁄₁₆ X 46 X 19 ⅝

HE-400 5X5-LP: 34 ⁵⁄₁₆ X 29 ⁵⁄₁₆ X 19 ⅝

HE-400 5X6-LP: 34 ⁵⁄₁₆ X 34 ⅞ X 19 ⅝

HE-400 5X7-LP: 34 ⁵⁄₁₆ X 40 ⅜ X 19 ⅝

HE-400 5X8-LP: 34 ⁵⁄₁₆ X 46 X 19 ⅝

HE-400 6X5-LP: 40 ¹³⁄₁₆ X 29 ⁵⁄₁₆ X 19 ⅝

HE-400 6X6-LP: 40 ¹³⁄₁₆ X 34 ⅞ X 19 ⅝

HE-400 6X7-LP: 40 ¹³⁄₁₆ X 40 ⅜ X 19 ⅝

HE-400 6X8-LP: 40 ¹³⁄₁₆ X 46 X 19 ⅝
