CENDREX

PAL

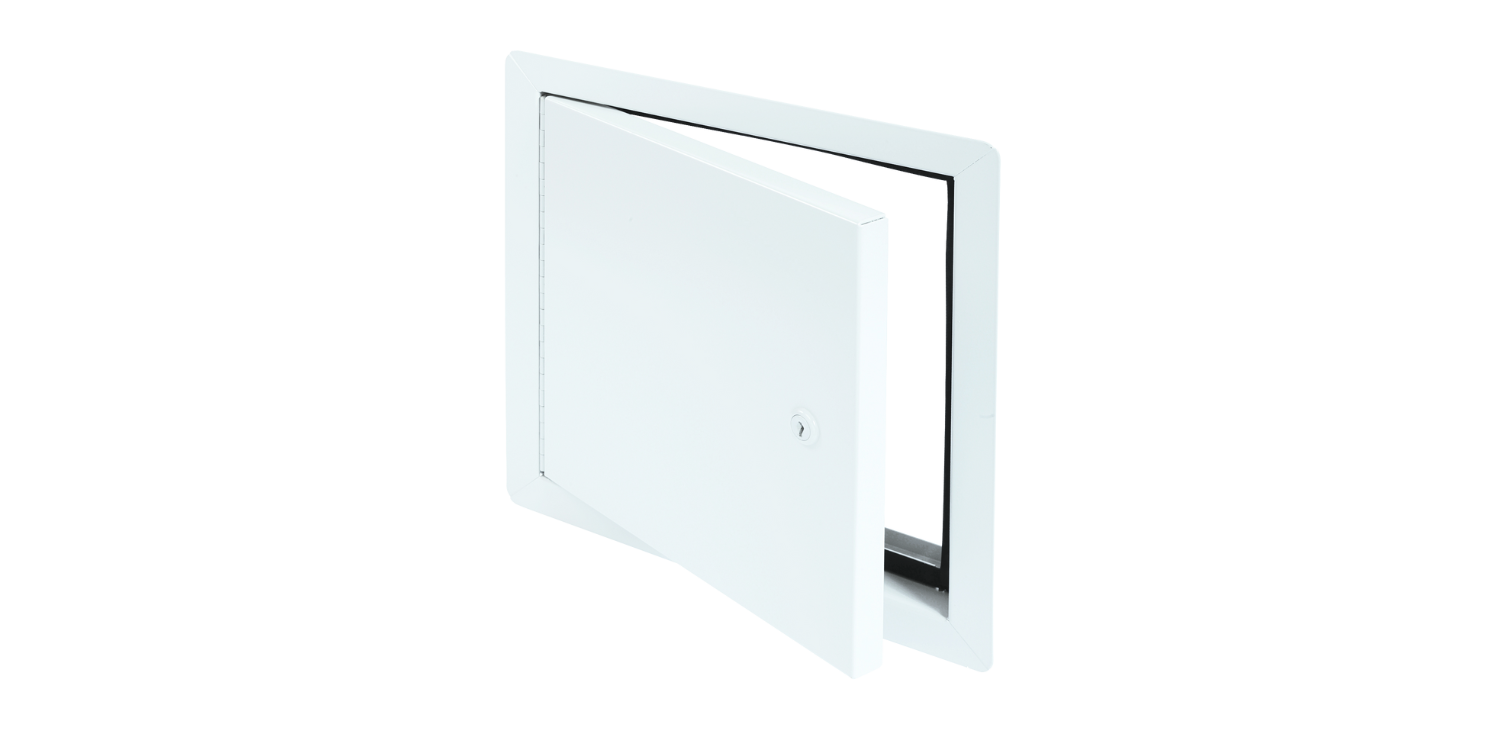

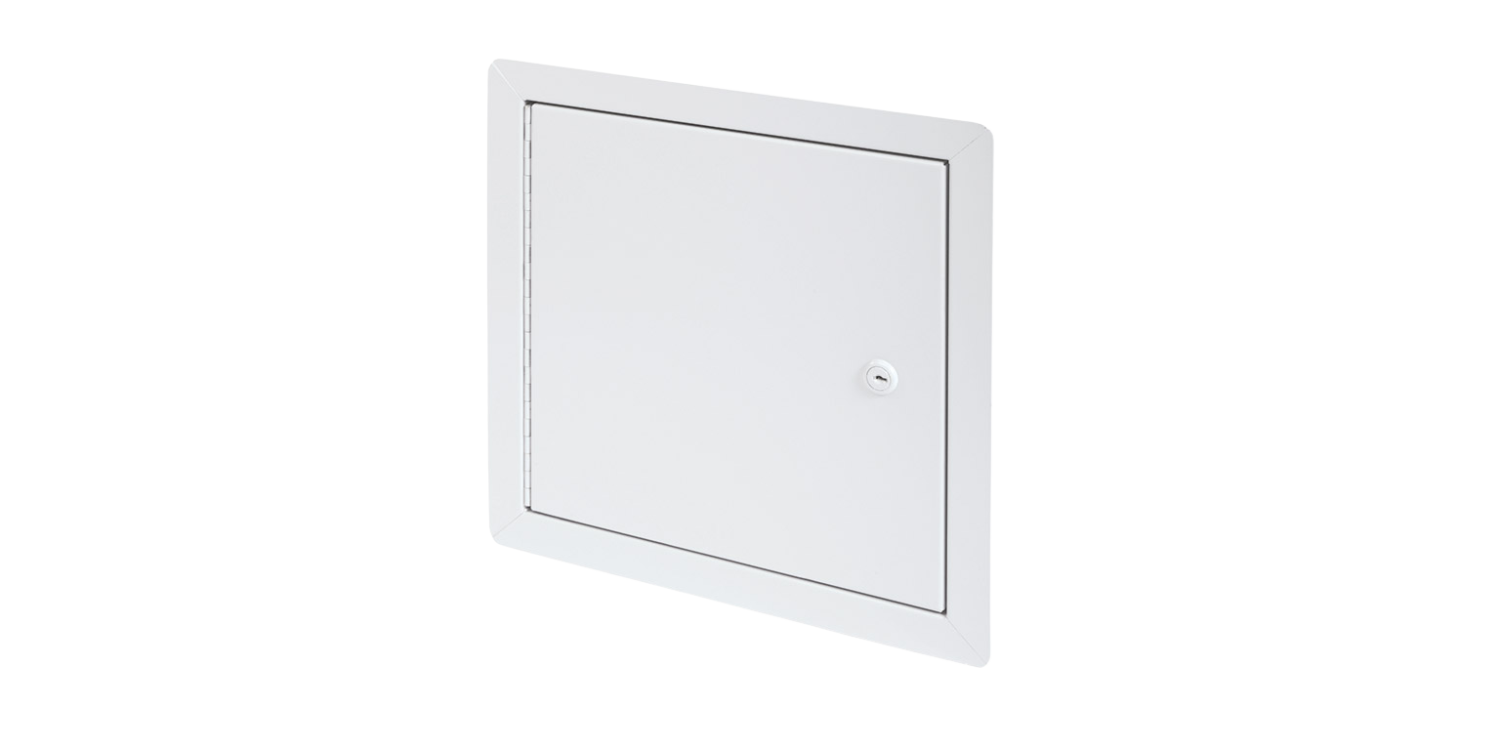

Insulated aluminum universal access panel with exposed frame, key lock, and aluminum piano hinge. Installation: wall and ceiling.

SKU: PAL 8X8

W X H:

8 X 8 12 X 12 16 X 16 18 X 18 24 X 24 24 X 36 36 X 36

Product variants:

Material: 0.064" aluminum sheet
Hinge: Aluminum continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
Locking mechanism: Key-operated cylinder cam latch with two keys per lock
Flange: 1" exposed flange
Frame: 2½ " in depth, made of aluminum
Rough opening: Door sizes + ¼ " or + 6mm
Insulation: 1" thick fiberglass wool
Gasketing: Neoprene around perimeter of door frame
Finish: High quality white powder coat primer
Packaging: Individually wrapped, 1 door per box
