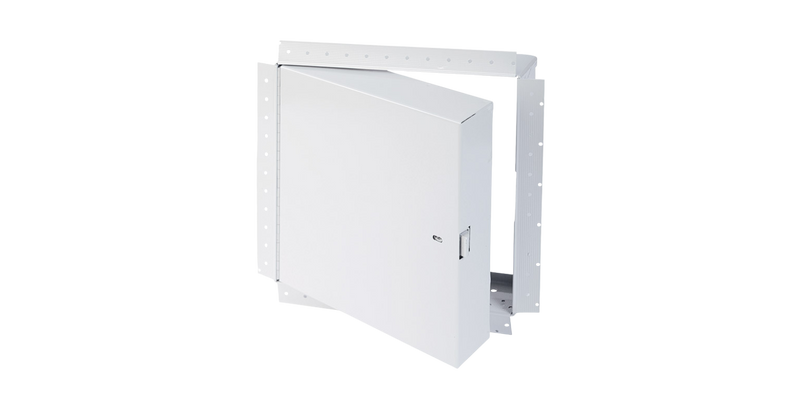

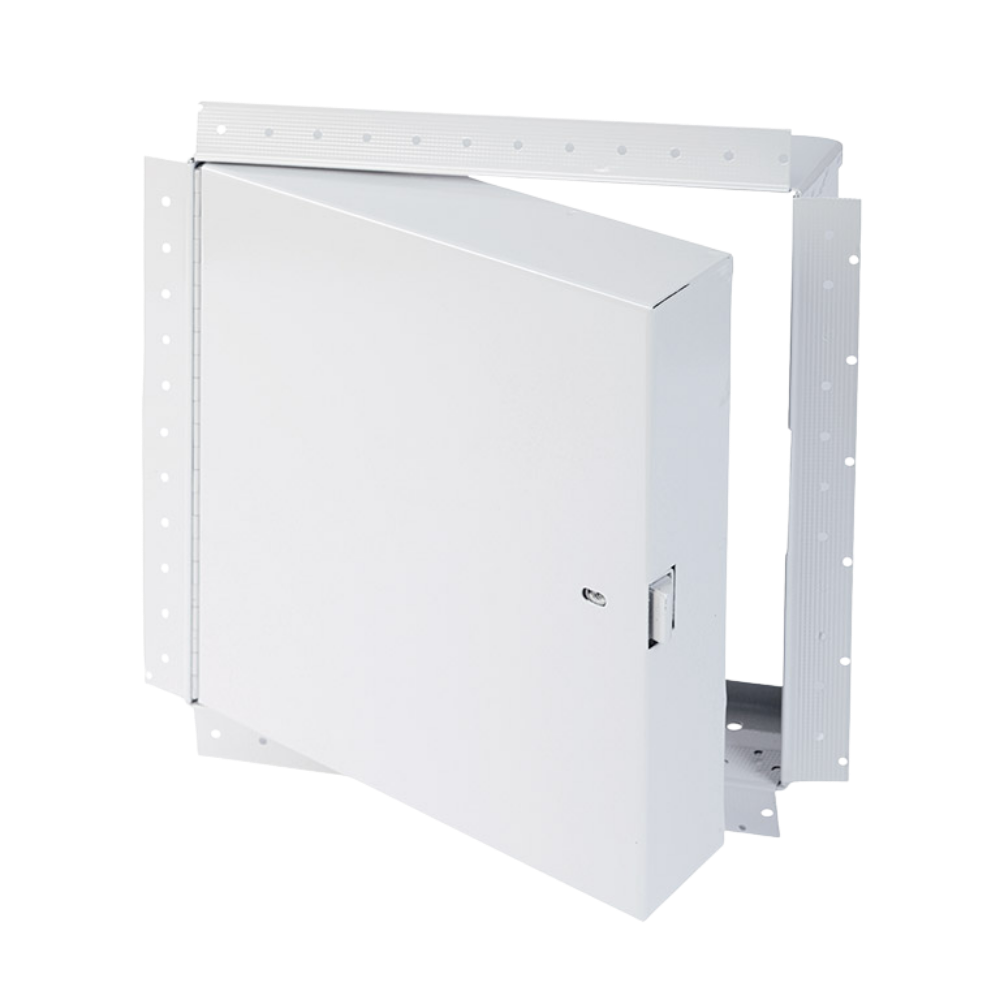

PFI-GYP

• Material: 20-gauge galvanneal steel door and 16-gauge cold rolled steel frame
• Hinge: Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).

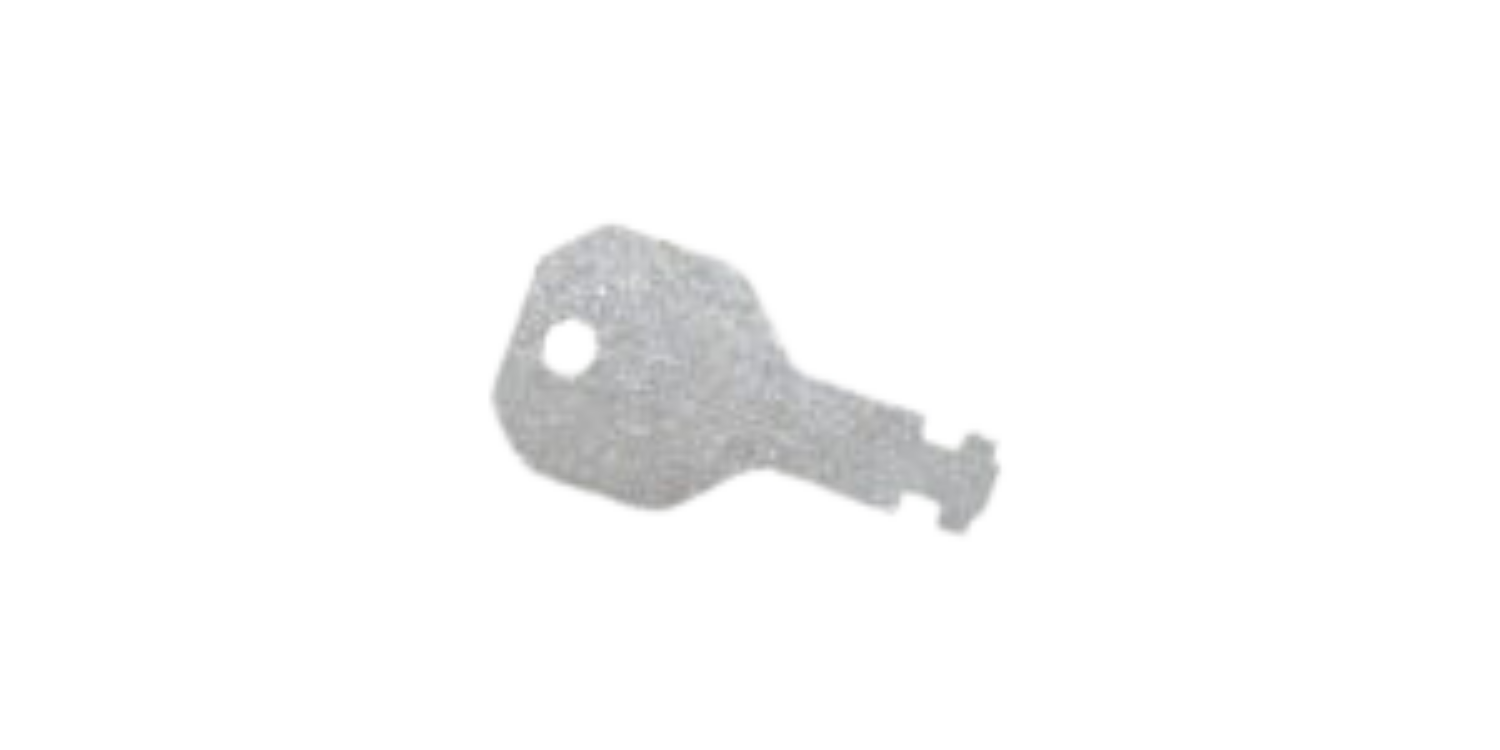

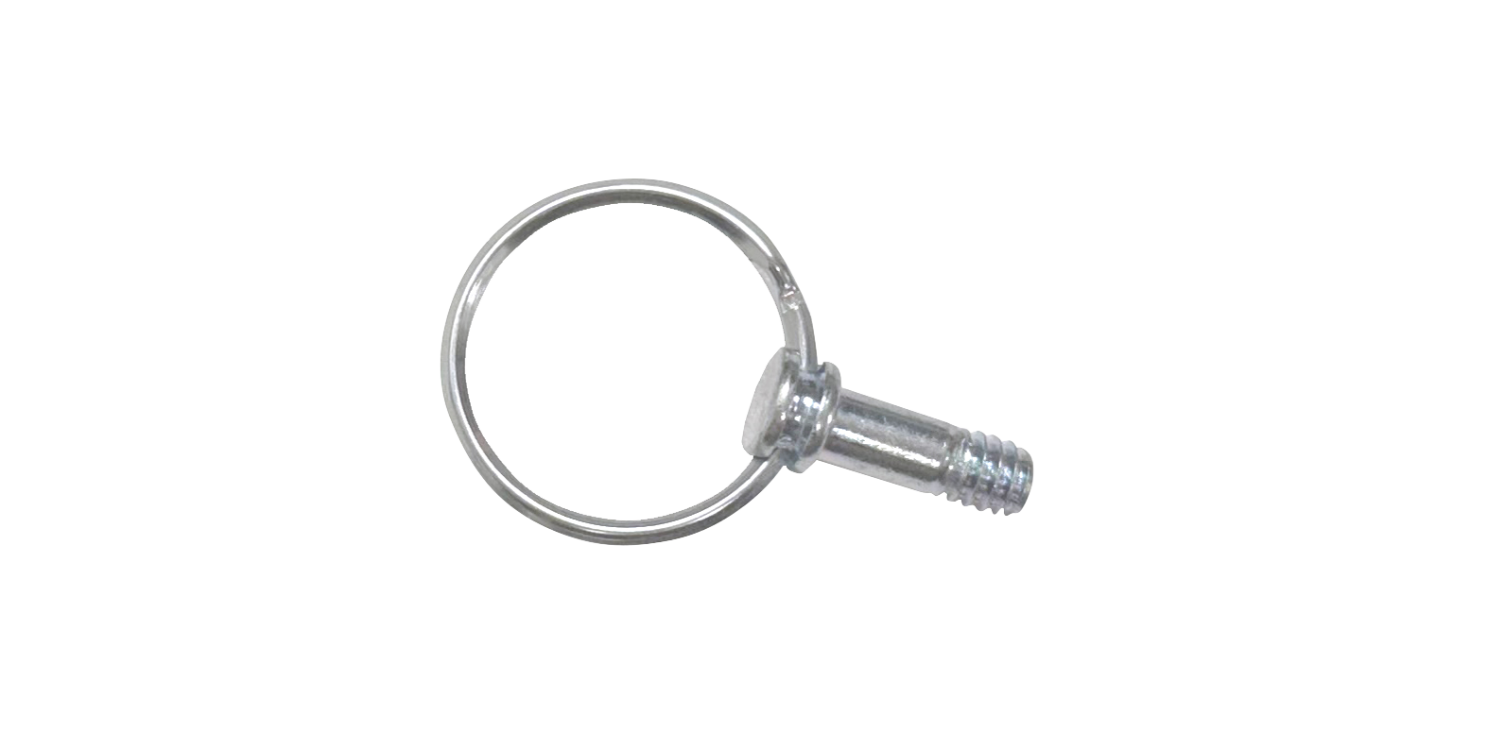

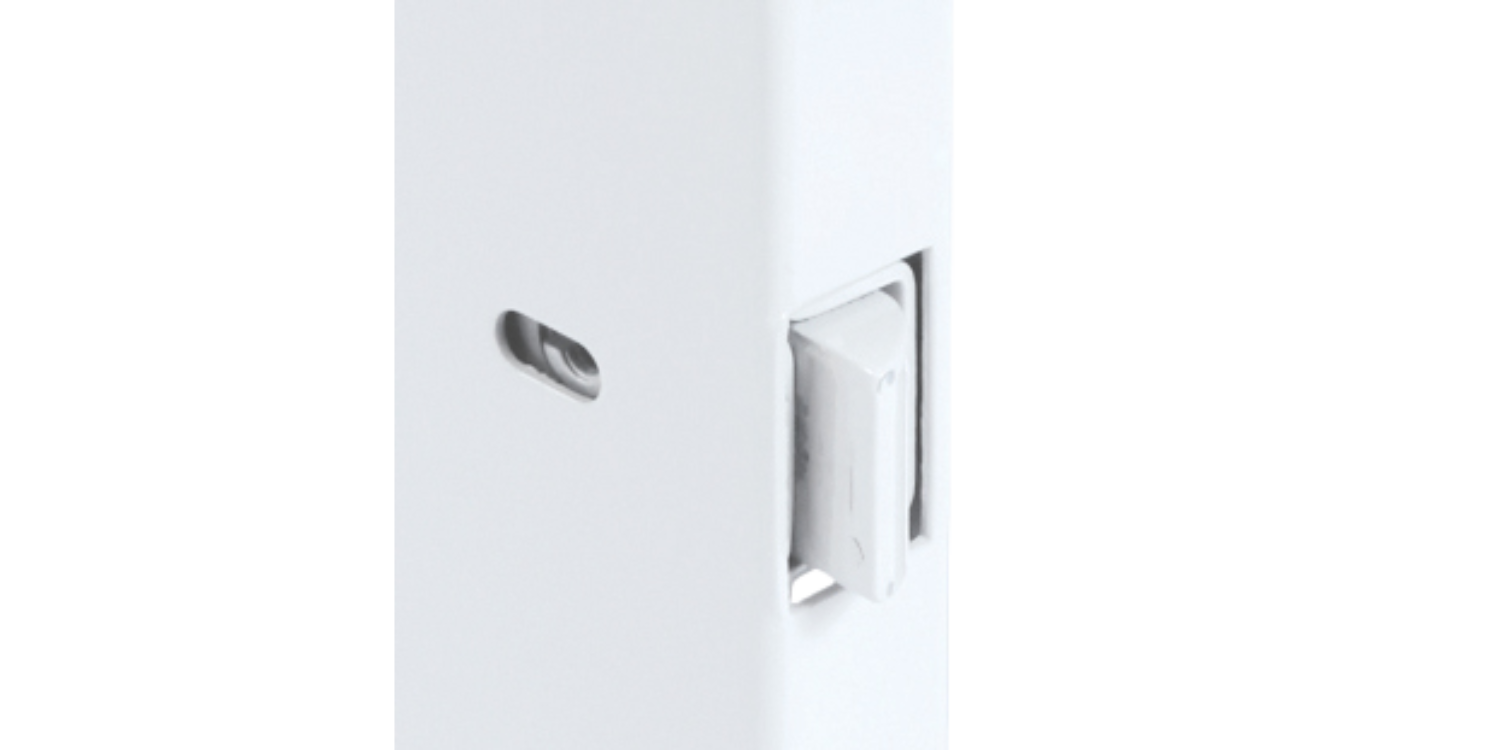

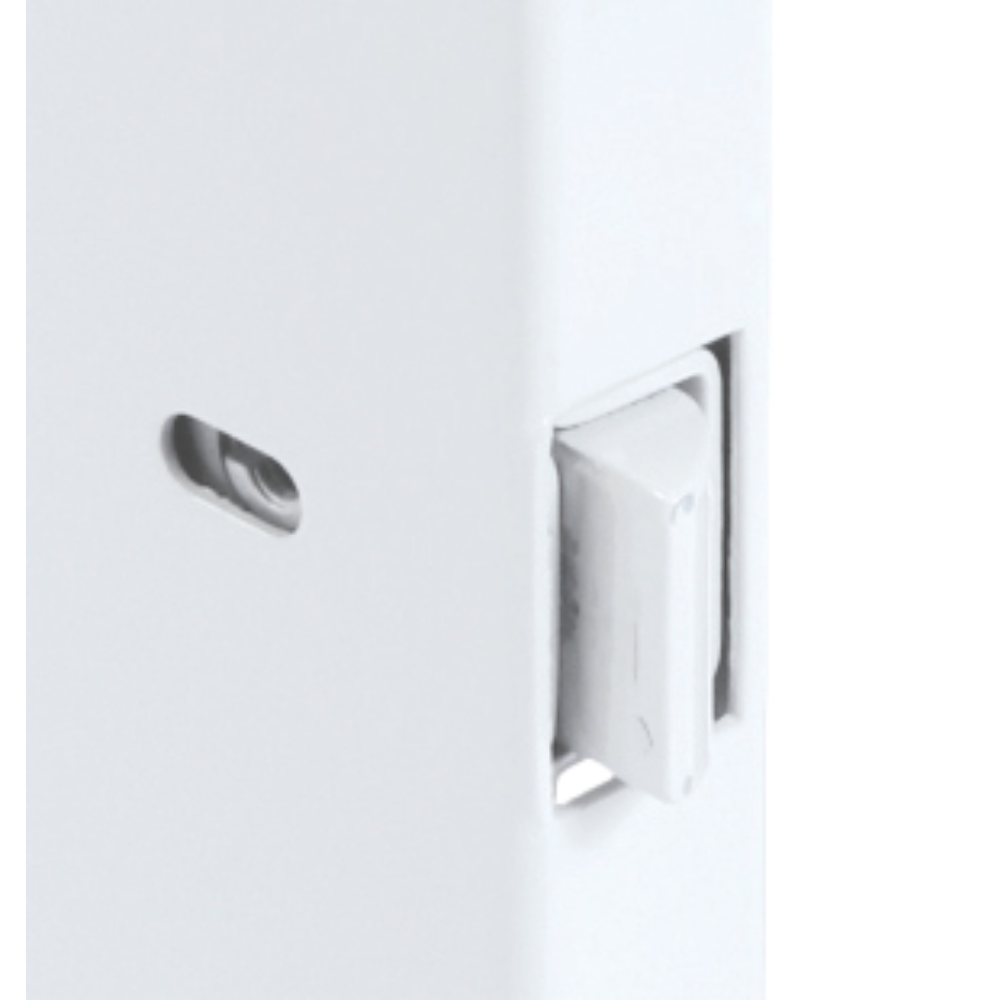

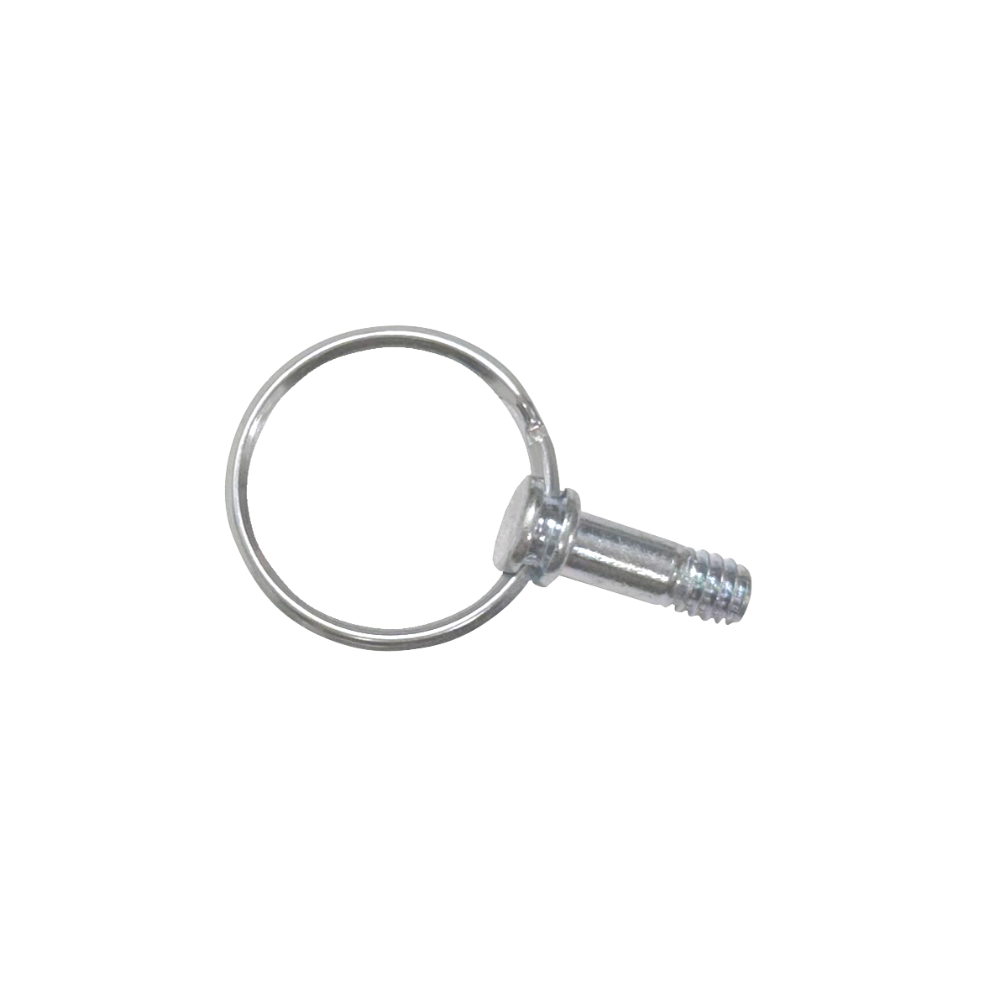

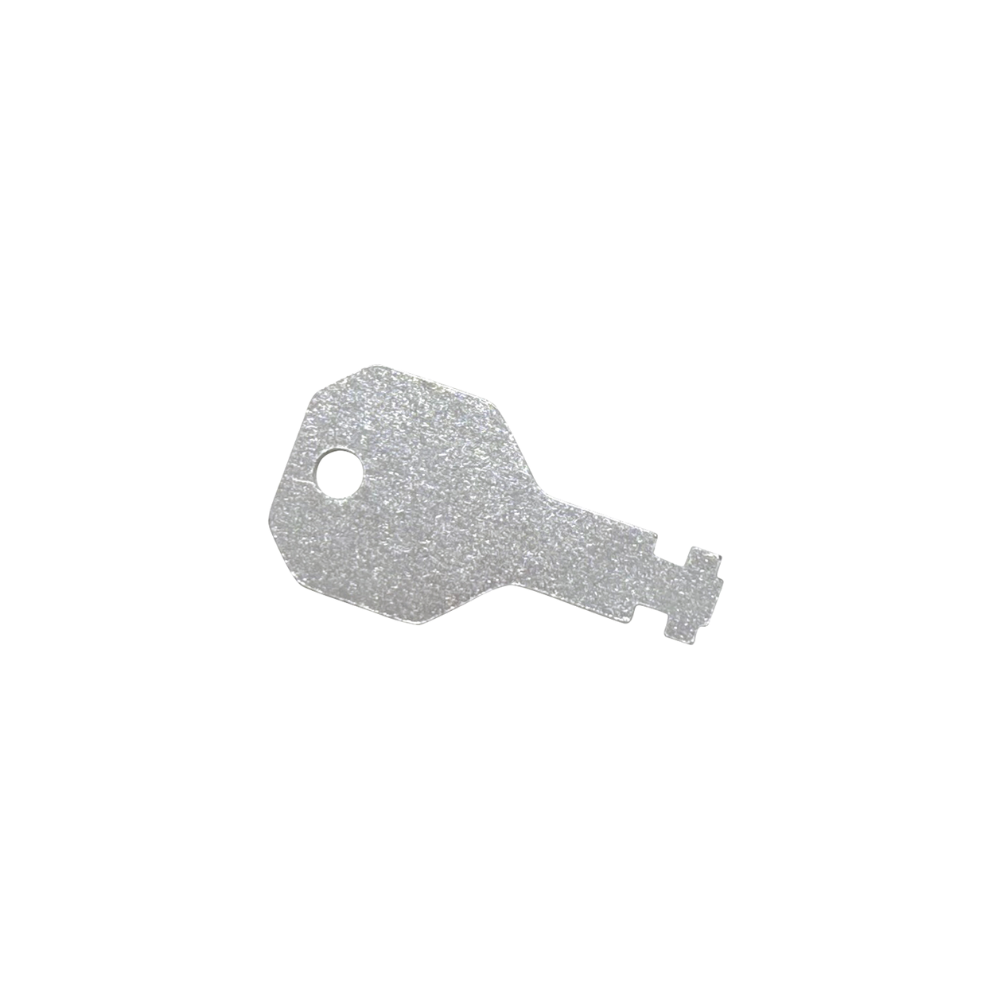

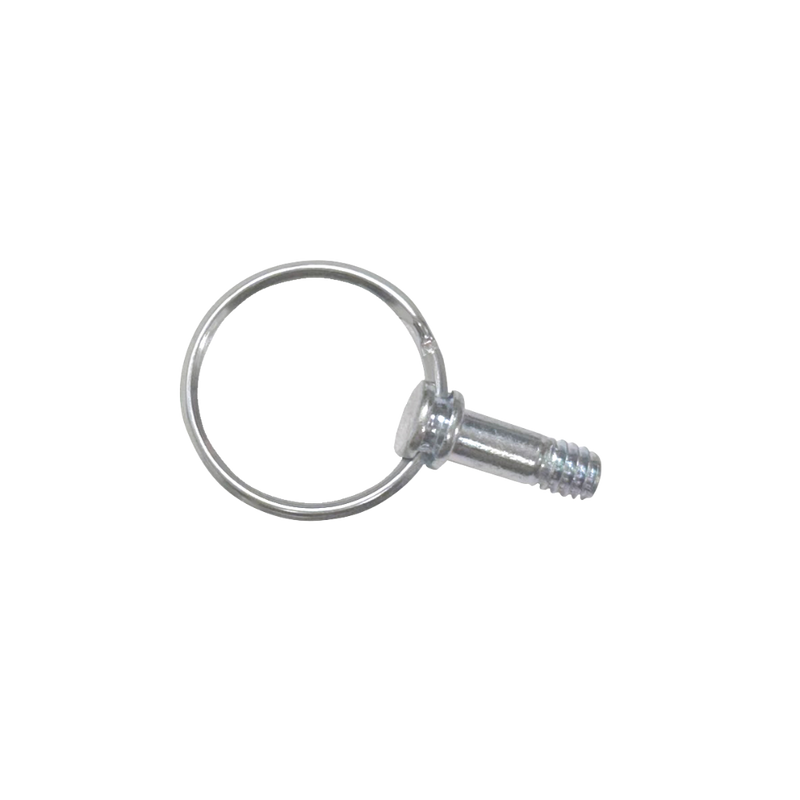

• Locking mechanism: Self-latching tool-key operated slam latch and ring operated slam latch, both included.
• Flange: 22-gauge galvanized steel, 1 ⅛" drywall bead flange
• Frame: 2½ " in depth, made of cold rolled steel
• Rough openingDoor sizes + ¼" or + 6mm
• Insulation: 2" thick fire rated mineral wool
• Inside panel release: Mechanisms to allow panels to open from inside, standard on all doors over 12" X 12 inches.
• Finish: High quality white powder coat primer.
• Packaging: Individually wrapped, 1 door per box.

Fire rated access doors, for vertical use, are subject to the following:

• Certification: UL 10B (2008) (R2020), NFPA 252 (2022), CAN/ULC S104 (2015) (R2020).
• Rating Achieved: 3 hours, neutral/negative pressure
• Maximum size: 48" x 48" (1219mm x 1219mm), maximum area of 2304 in², tolerance on height and width limitation is more or less 3" (76mm) as long as the area does not exceed 2304 in².
• Temperature rise: 250°F (121°C) after 30 minutes and 450°F (232°C) after 60 minutes.

Fire rated access doors, for horizontal use, are subject to the following:

• Certification: ASTM E119 (2020), ASTM E119 (2024), CAN/ULC S101 (2014).
• Rating Achieved: 3 hours in non-combustible construction and 1 hour in combustible construction
• Maximum size: 24"X36" (610 mm X 914 mm) (hinges and latches on the side of 36"), tolerance on dimension limitations are more or less 3" (76 mm) as long as the area does not exceed 864 in².
• Temperature rise: Within allowable per ASTM E119 and CAN/ULC S101.
