CENDREX

PFU

Regular price
$586.15 CAD
Sale price
$586.15 CAD
Regular price

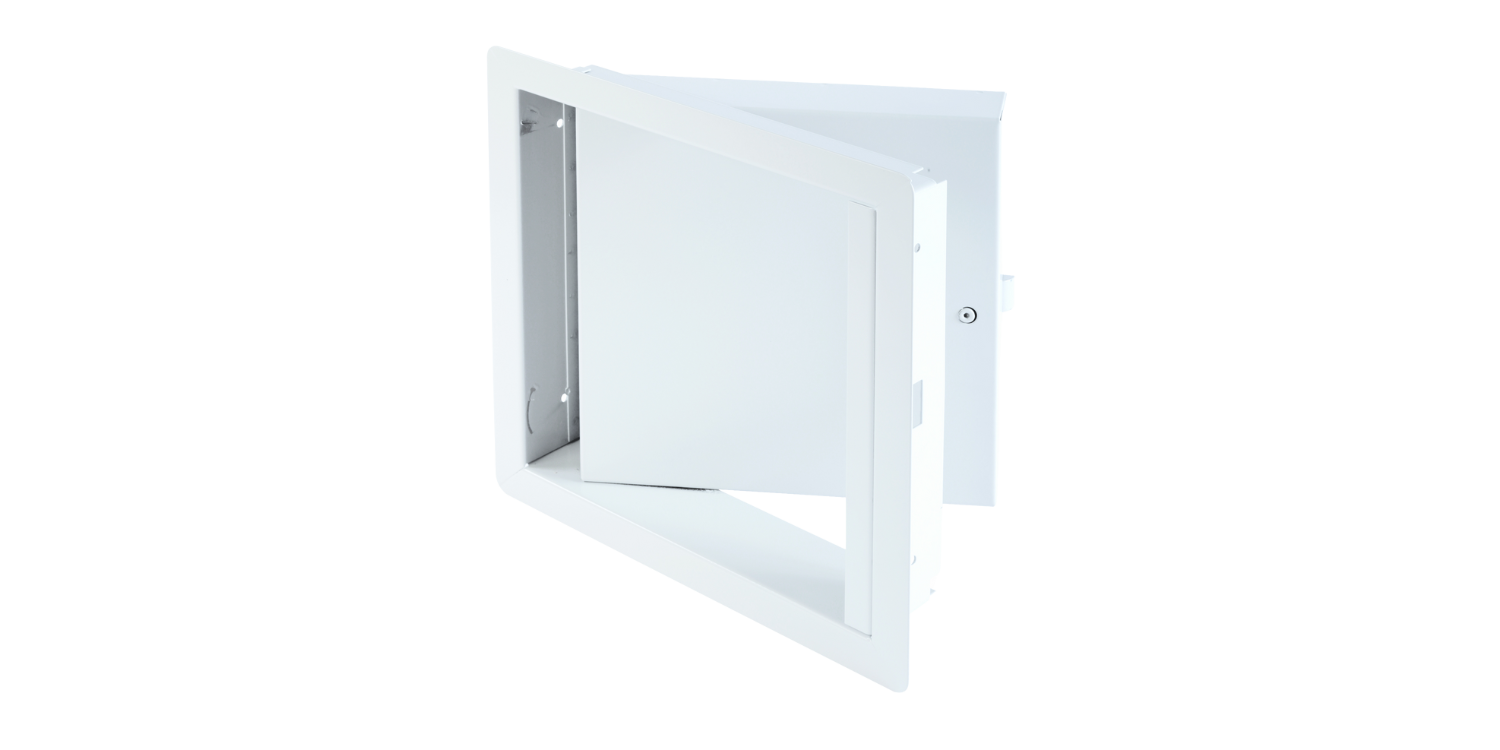

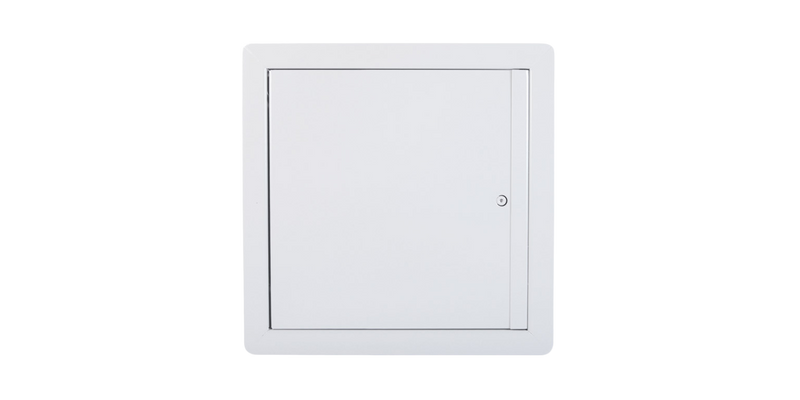

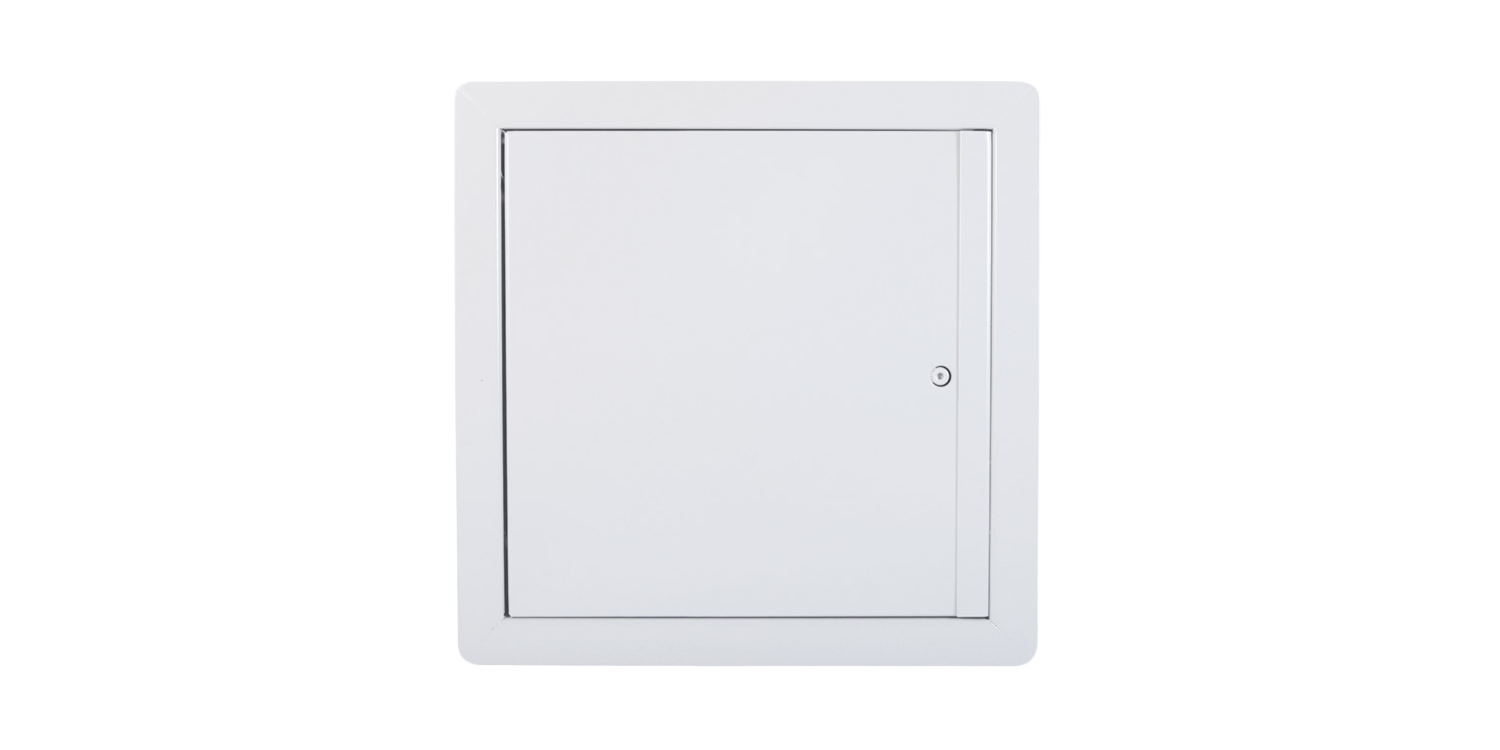

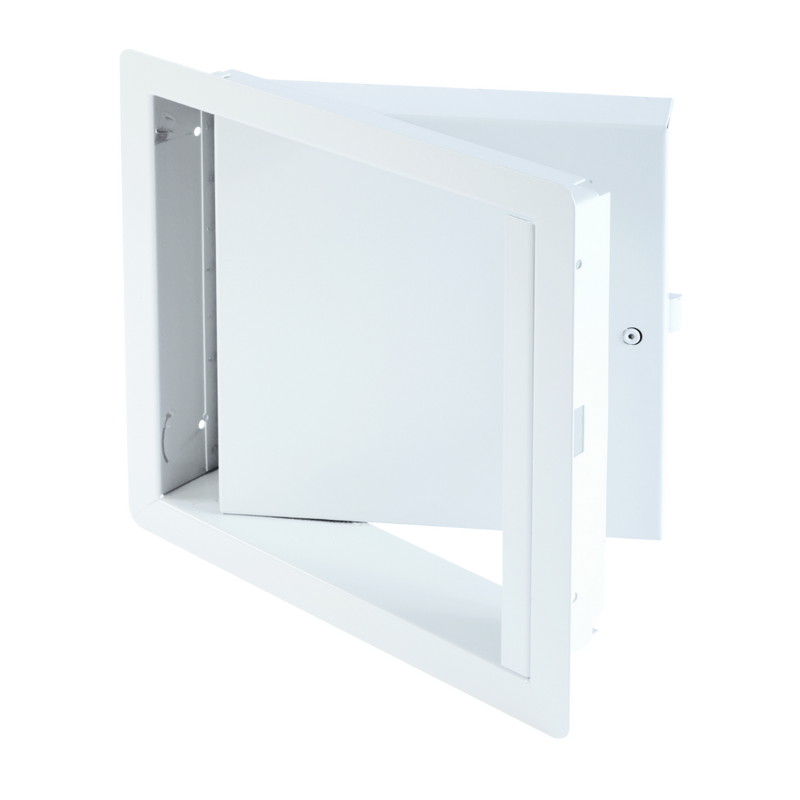

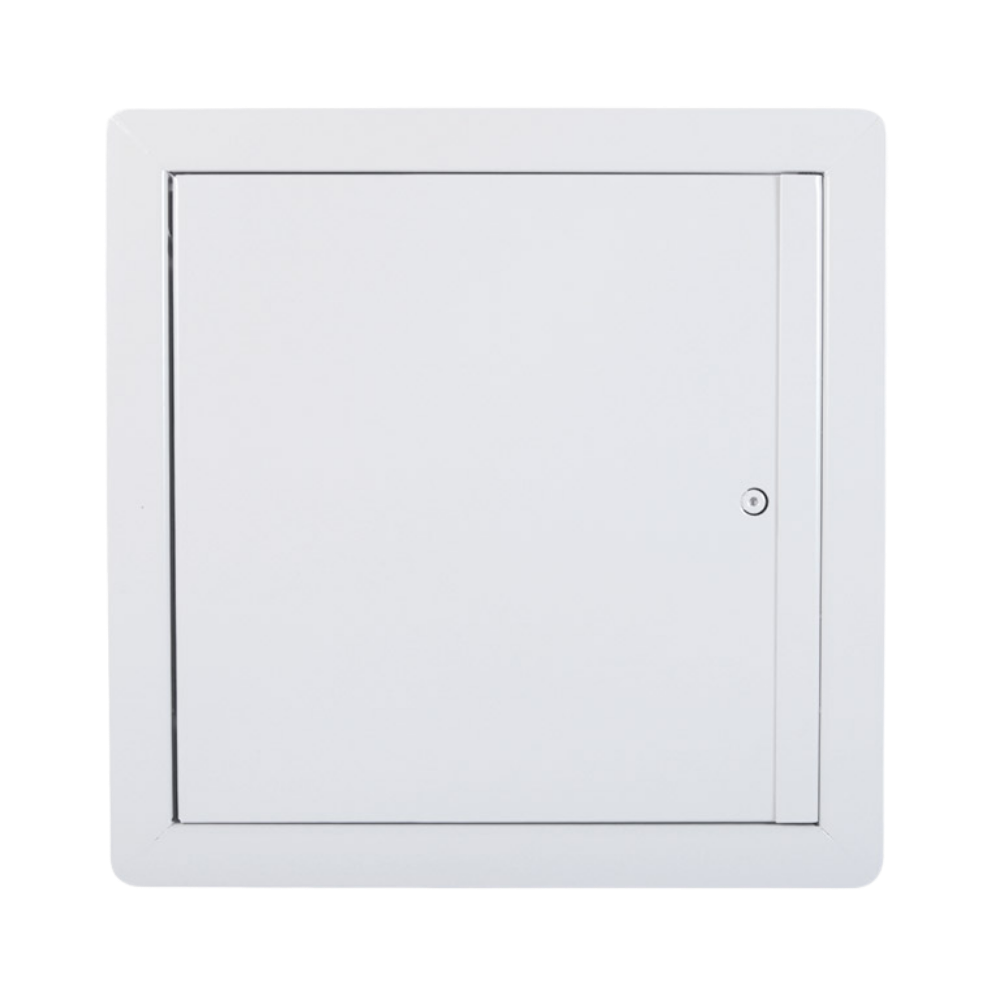

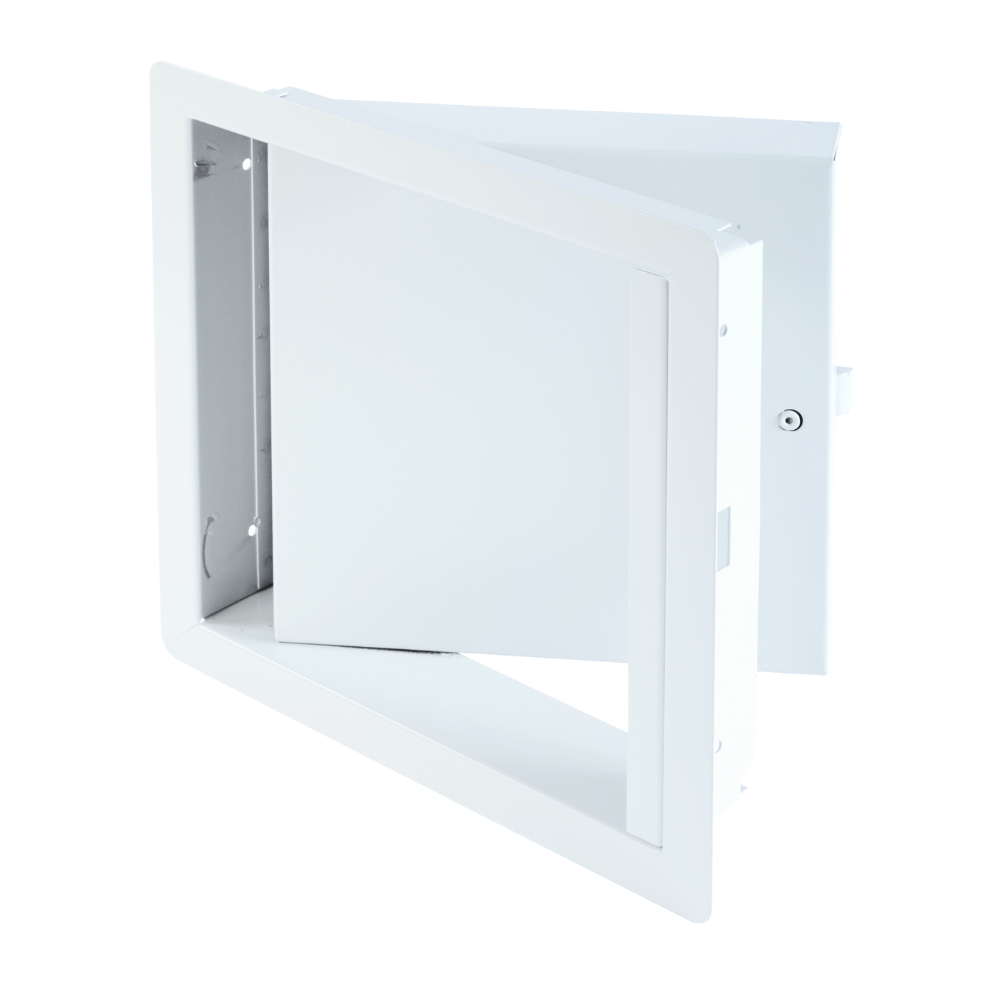

Insulated, fire-rated, upward-opening access panel with exposed frame, self-locking hexagonal head latch and self-locking latch with key/tool ​​• Piano hinge • Installation: ceiling
  • PFU

SKU: PFU 22X30

W X H:
  • Material: 20-gauge galvanneal steel door 16 gauge cold rolled steel frame
  • Hinge: Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).

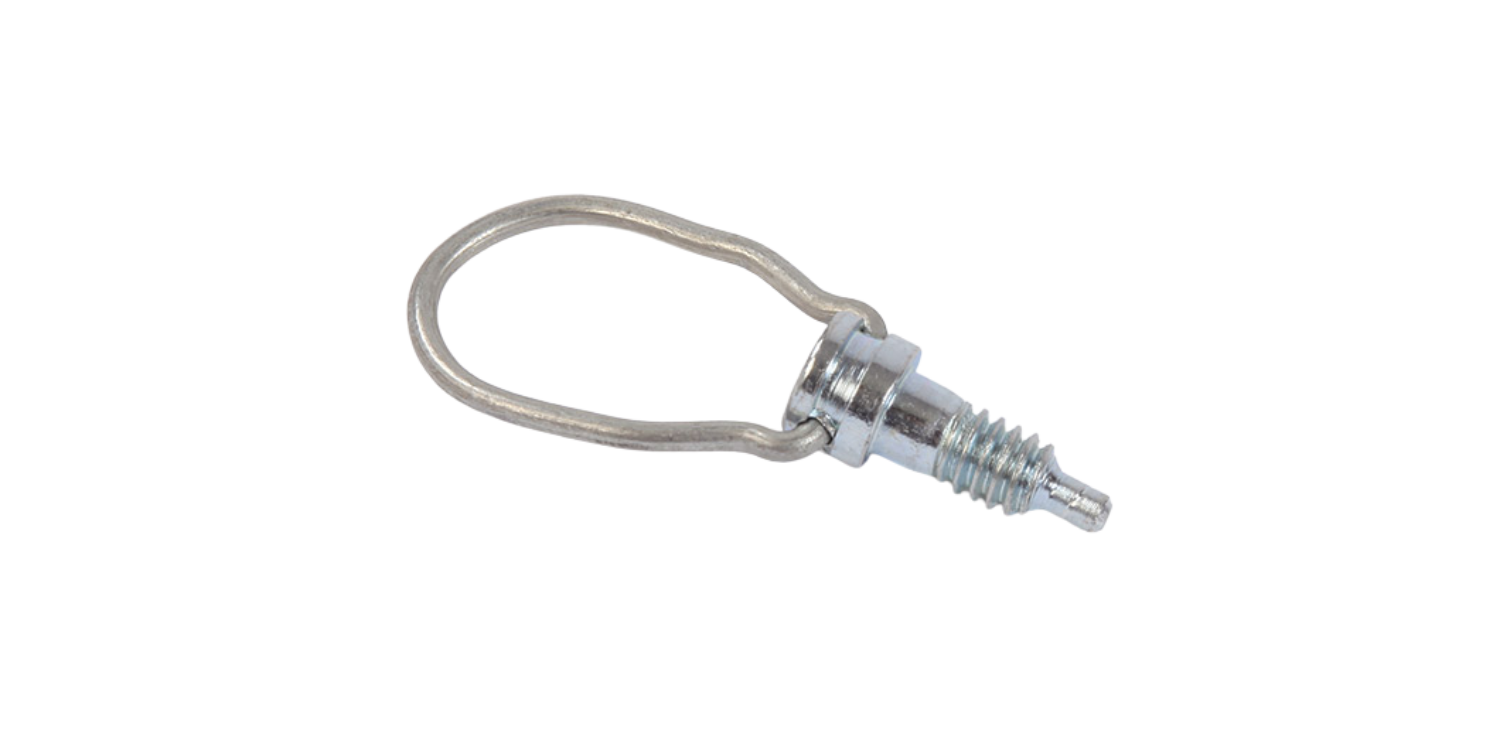

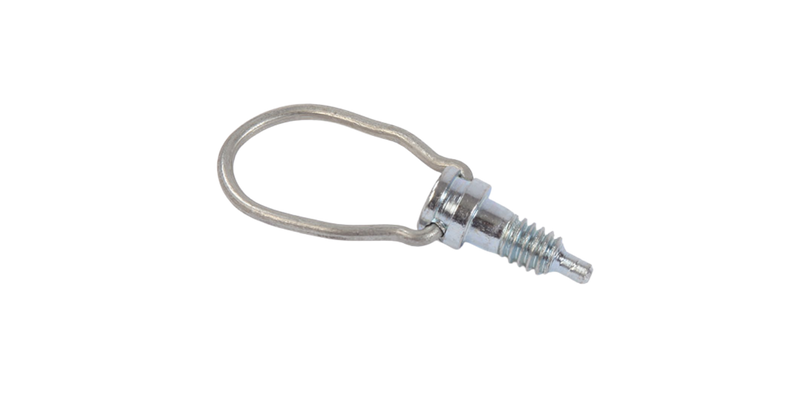

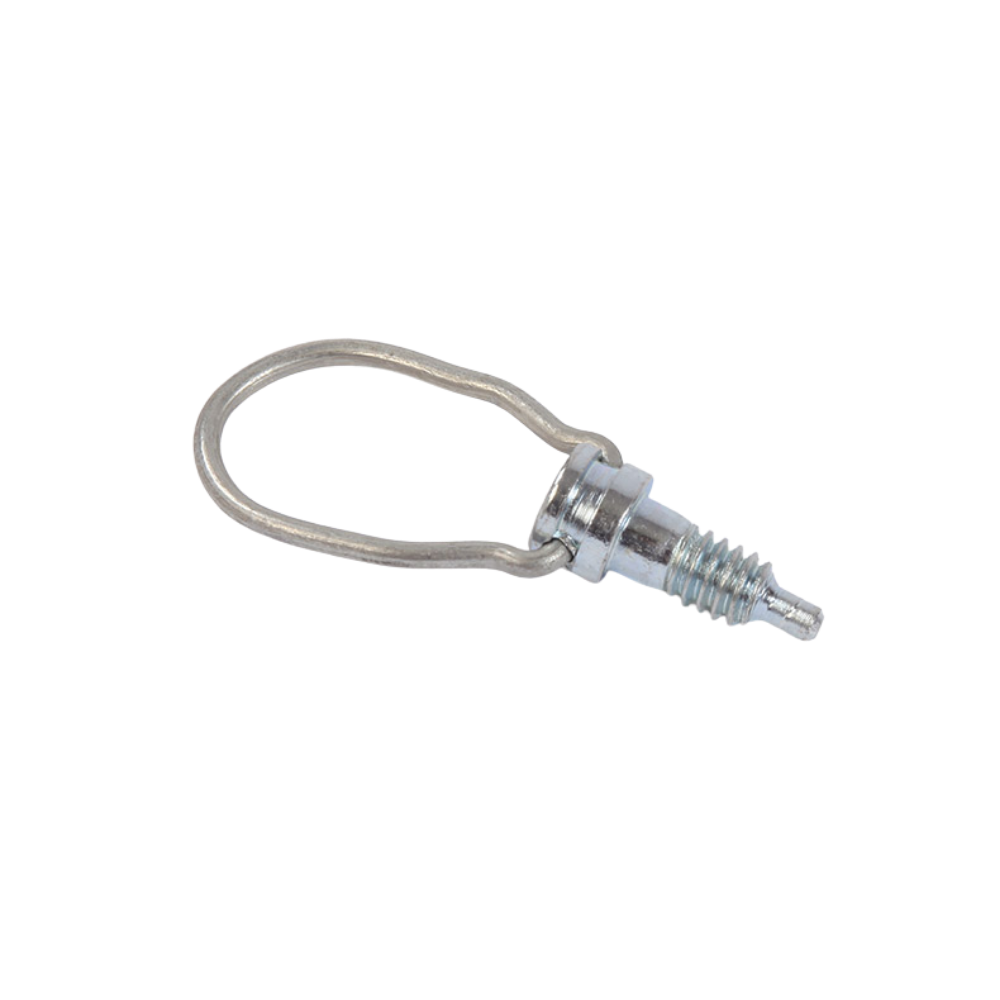

  • Locking mechanism: Hex head slam latch outside and a self-latching ring operated slam latch inside
  • Flange: 1" exposed flange
  • Frame: 3" in depth, made of cold rolled steel
  • Rough opening: Door sizes + ¼" or + 6mm
  • Insulation: 2" thick fire rated mineral wool
  • Finish: High quality white powder coat primer.
  • Packaging: Individually wrapped, 1 door per box.


Fire rated access doors, for horizontal use, are subject to the following:

  • Certification: ASTM E119 (2020), ASTM E119 (2024), CAN/ULC S101 (2014)
  • Rating Achieved: 3 hours in non-combustible construction and 1 hour in combustible construction
  • Maximum size: 24"X36" (610 mm X 914 mm) (hinges and latches on the side of 36"), tolerance on dimension limitations are more or less 3" (76 mm) as long as the area does not exceed 864 in².
  • Temperature rise: Not applicable
